DESCRIPTION
Intercooler And shroud Assembly For Ingersoll Rand Type 30 - Model 7T2
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler And shroud Assembly For Ingersoll Rand Type 30 - Model 7T2 from India.

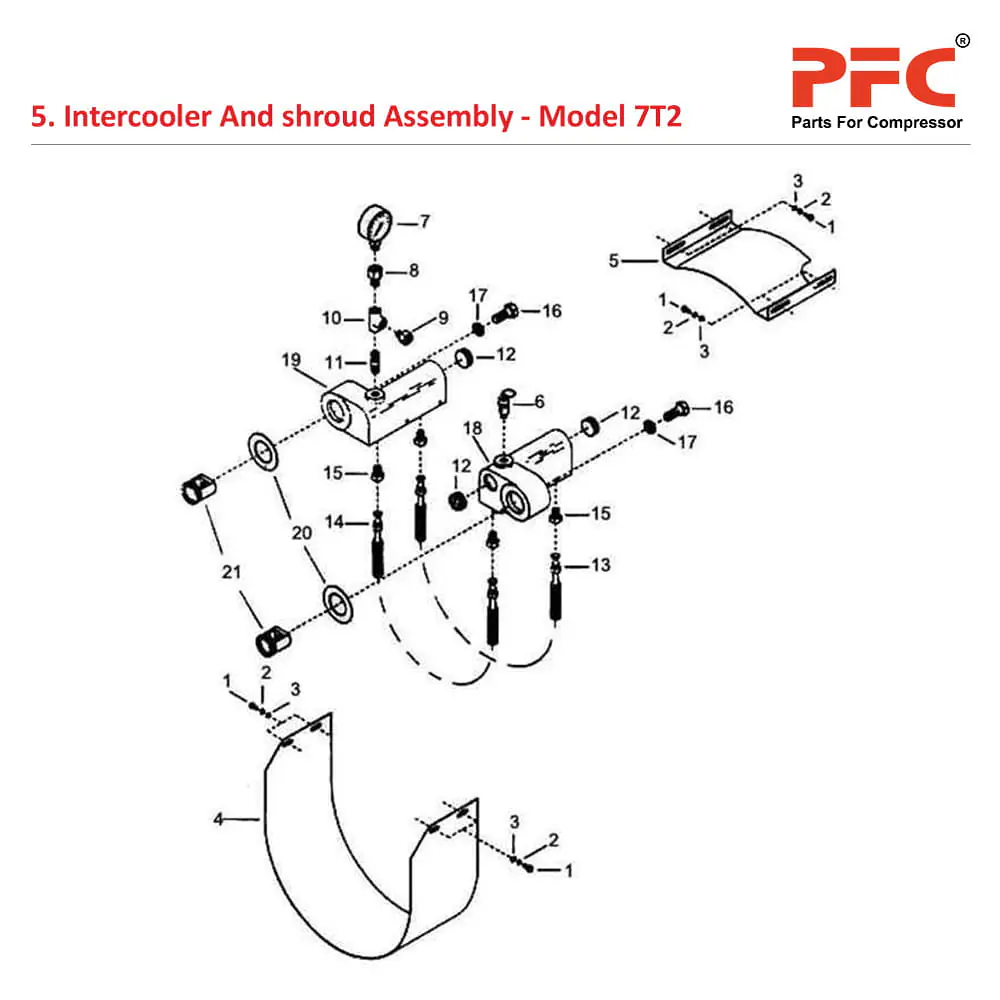

Intercooler And Shroud Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 5-00 | 32058893 | Intercooler Assembly | 1 |
| 5-01 | 95053070 | Screw Cap Hex 1/4" X 1/2" | 8 |
| 5-02 | 32035479 | Washer Spring 1/4" | 8 |
| 5-03 | 95094298 | Washer 1/4" Flat | 8 |
| 5-04 | 30822928 | Shroud I/C- Bottom | 1 |
| 5-05 | 30218242 | Shroud Intercooler Top | 1 |
| 5-06 | 97048110 | Valve Safety 1/4 X 160 PSIG | 1 |
| 5-07 | 95736898 | Gauge Pressure 2.5" Dia 0-100 PSI BTM | 1 |
| 5-08 | Damper Assembly - Pulsation | 1 | |
| 5-09 | 95082491 | Connector | 1 |
| 5-10 | 30282396 | Tee M.S. 1/4" X 1/4" X 1/4" | 1 |
| 5-11 | 32175051 | Nipple 1/4" | 1 |
| 5-12 | 95101457 | Plug Pipe 1" | 3 |
| 5-13 | 32024697 | Tube Assembly Finned 3/8" with Nut | 6 |
| 5-14 | 32024689 | Tube Assembly Finned 3/8" with Nut | 6 |
| 5-15 | 95083143 | Connector Tube 3/8" * 1/4" NPT | 24 |
| 5-16 | 95002168 | Screw Hex Head 5/8" X 1-1/2" LG | 2 |
| 5-17 | 30550735 | Washer Copper 5/8" | 2 |
| 5-18 | 37128964 | Manifold L.P. | 1 |
| 5-19 | 37185360 | Manifold H.P - Intercooler | 1 |
| 5-20 | 30294870 | Gasket Manifold | 2 |
| 5-21 | 30221121 | Connection Manifold | 2 |
