Intercooler Assembly IR 15T Air Compressor Parts
Regular price
₹0.00
Intercooler Assembly IR 15T Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Intercooler Assembly For Ingersoll Rand Type 30 - Model 15T
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler Assembly For Ingersoll Rand Type 30 - Model 15T from India.

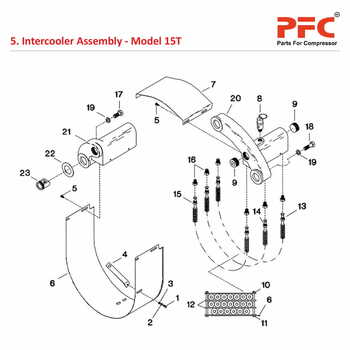

Intercooler Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 5-1 | 95053070 | Capscrew - Hex 1/4 - 20 X 1/2 | 1 |
| 5-2 | 95043196 | Lockwasher, spring - 1/4 | 1 |
| 5-3 | 95094298 | Washer, flat - 1/4 | 1 |
| 5-4 | 30209829 | Brace, intercooler shroud | 1 |
| 5-5 | 32175572 | Capscrew - serrated washer head 1/4 | 8 |
| 5-6 | 30218283 | Shroud, bottom - intercooler | 1 |
| 5-7 | 30218275 | Shroud, top- intercooler | 1 |
| 5-8 | 30357842 | Valve, safety - 65 psig | 1 |
| 5-9 | 95033338 | Plug, pipe - square countersunk 1 - 1/4 | 4 |
| 5-10 | 95085965 | Locknut - 1/4 | 2 |
| 5-11 | 95053484 | Capscrew - Hex 1/4 - 20 X 4 | 2 |
| 5-12 | 32024911 | Brace, intercooler tube | 4 |
| 5-13 | 32025686 | Assembly, tube 41 - 1/2 inch | 6 |
| 5-14 | 32025678 | Assembly, tube 38 - 3/4 inch | 7 |
| 5-15 | 32024697 | Assembly tube 36 inch | 7 |
| 5-16 | 95083143 | Connector, male - 3/8 X 1/4 | 40 |
| 5-17 | 95054128 | Capscrew - Hex 5/8-11 X 2 | 2 |
| 5-18 | 95054144 | Capscrew - Hex 5/8-11 X 2 - 1/2 | 1 |
| 5-19 | 30345185 | Washer, flat - 5/8 | 3 |
| 5-20 | 37129012 | Manifold, intercooler - low pressure | 1 |
| 5-21 | 37129020 | Manifold, intercooler - high pressure | 1 |
| 5-22 | 30294870 | Gasket, manifold | 3 |
| 5-23 | 30221121 | Connection, manifold | 3 |
