DESCRIPTION
Intercooler Assembly For Ingersoll Rand Type 30 - Model 10T3NLM
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Intercooler Assembly For Ingersoll Rand Type 30 - Model 10T3NLM from India.

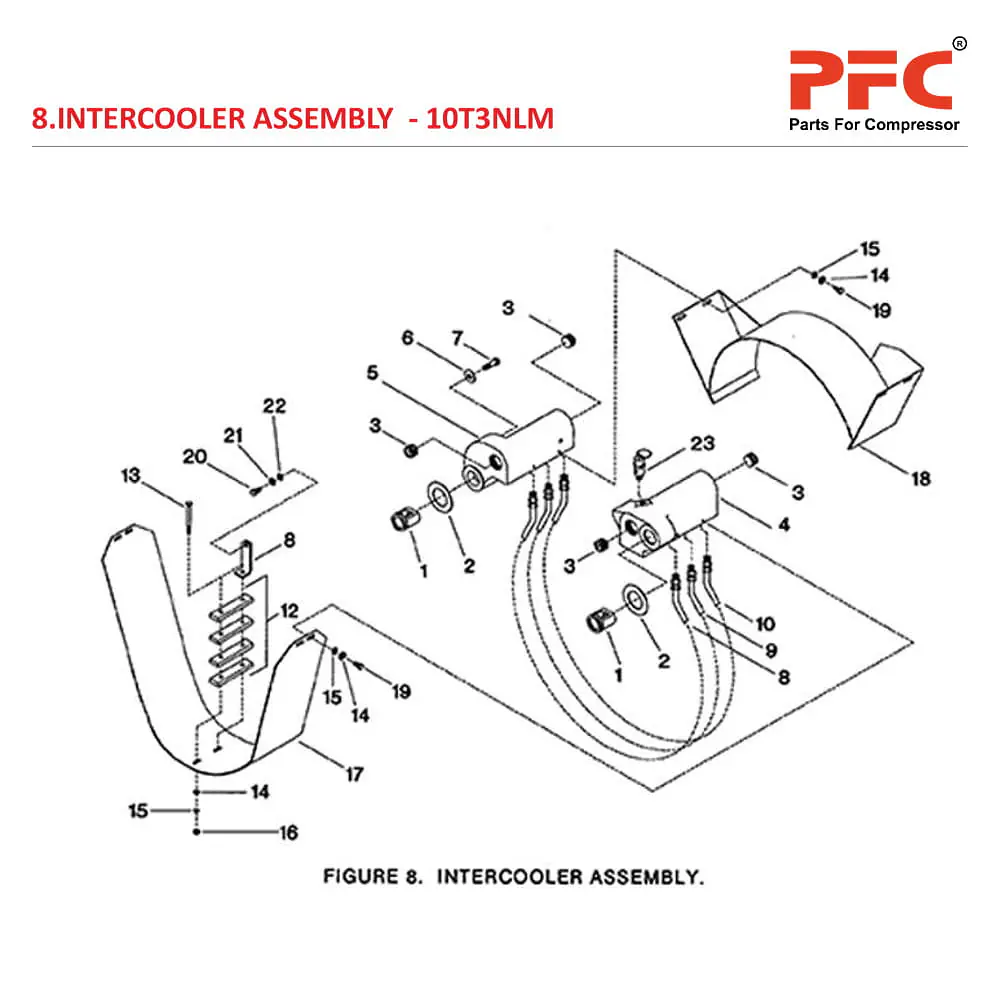

Intercooler Assembly
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| 8-1 | 32225948 | Connection, Manifold | 2 |
| 8-2 | 30294821 | Gasket, Manifold | 2 |
| 8-3 | 95033304 | Plug, Pipe - Countersunk | 4 |
| 8-4 | 32222622 | Manifold, Intercooler - Low Pressure | 1 |
| 8-5 | 32222630 | Manifold, Intercooler - High Pressure | 1 |
| 8-6 | 32225328 | Washer, Copper - 12mm | 2 |
| 8-7 | 32225252 | Capscrew - M12 X 35 | 2 |
| 8-8 | 32241697 | Assembly, Tube - Completet | 4 |
| 8-9 | 32241564 | Assembly, Tube - Completet | 3 |
| 8-10 | 32241671 | Assembly, Tube - Completet | 4 |
| 8-11 | 32226060 | Brace, Intercooler Clamp | 1 |
| 8-12 | 37140175 | Clamp, Intercooler Tube | 4 |
| 8-13 | 32225260 | Capscrew - M6 X 100 | 2 |
| 8-14 | 32225310 | Washer, Flat - 6mm | 10 |
| 8-15 | 32225302 | Washer, Lock - 6mm | 10 |
| 8-16 | 32225294 | Nut, Hex - 6mm | 2 |
| 8-17 | 32222390 | Shroud, Intercooler - Bottom | 1 |
| 8-18 | 37140027 | Shroud, Intercooler - Top | 1 |
| 8-19 | 32225229 | Capscrew - M6 X 12 | 8 |
| 8-20 | 32225237 | Capscrew - M8 X 16 | 1 |
| 8-21 | 32226086 | Washer, Flat - 8mm | 1 |
| 8-22 | 32226094 | Washer, Lock - 8mm | 1 |
| 8-23 | 72062151 | Valve, Relief - 60 Psig | 1 |
