Intercooler IR 2540 Air Compressor Parts
Regular price
₹0.00
Intercooler IR 2540 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Intercooler Assembly For Ingersoll Rand Type 30 - Model 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler Assembly For Ingersoll Rand Type 30 - Model 2540 from India.

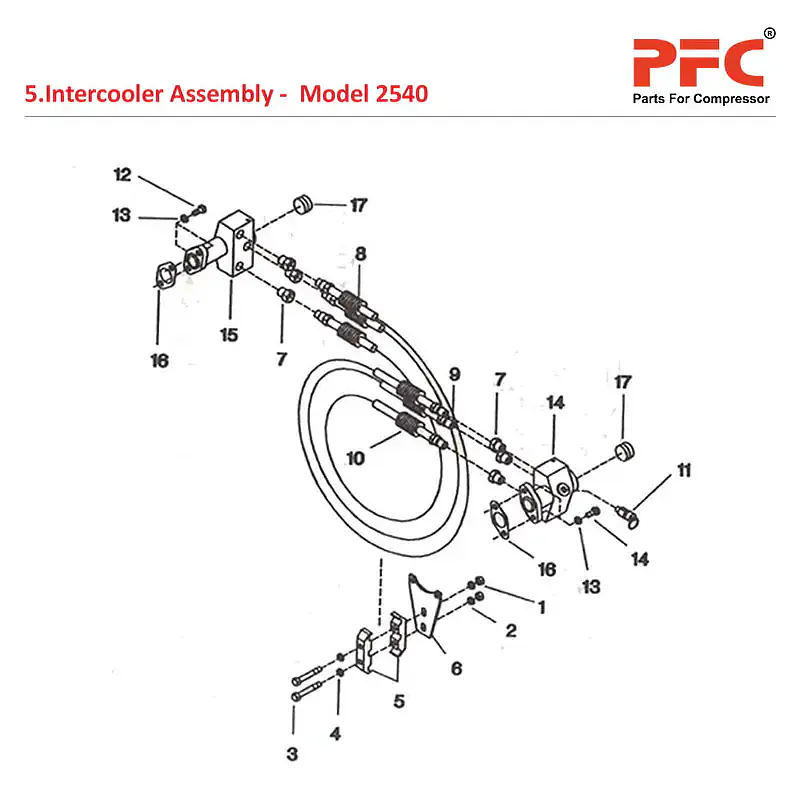

Intercooler Assembly
| REF. NBR. | PART NO. | DESCRIPTION | QTY |
| 5-1 | 95077764 | Nut - Hex 3/8-16 | 2 |
| 5-2 | 95081857 | Lockwasher, Spring - 3/8" | 2 |
| 5-3 | 95079646 | Capscrew - Hex 3/8-16x 2-1/2" | 2 |
| 5-4 | 95069597 | Washer, Flat - 3/8" | 2 |
| 5-5 | 94467750 | Clamp - Intercooler Tube Outer | 1 |
| 5-6 | 32182891 | Bracket - Intercooler Clamp | 1 |
| 5-7 | 95083226 | Connector, Male - 5/8 X 1/2" | 6 |
| 5-8 | 32211708 | Tube Assembly # 3 Intercooler | 1 |
| 5-9 | 32211690 | Tube Assembly # 2 Intercooler | 1 |
| 5-10 | 32211682 | Tube Assembly # 1 Intercooler | 1 |
| 5-11 | 97048094 | Valve Relief - 60 Psig | 1 |
| 5-12 | 95079612 | Capscrew - Hex 3/8 - 16 X 1" | 4 |
| 5-13 | 95081857 | Lockwasher, Spring - 3/8" | 4 |
| 5-14 | 32185787 | Manifold - 1st Stage Airhead | 1 |
| 5-15 | 32185795 | Manifold - 2nd Stage Airhead | 1 |
| 5-16 | 32188377 | Gasket, Manifold | 2 |
| 5-17 | 95101457 | Plug, Pipe - Square Countersunk 1" | 2 |
