Description
Intercooler Assembly For Ingersoll Rand Type 30 - Model 2540
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler Assembly For Ingersoll Rand Type 30 - Model 2540 from India.
Product
- Page 1

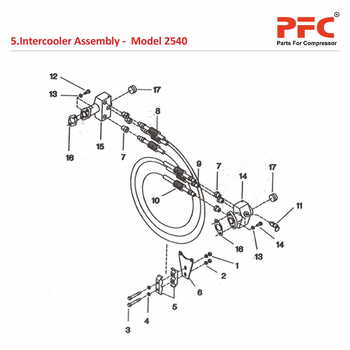

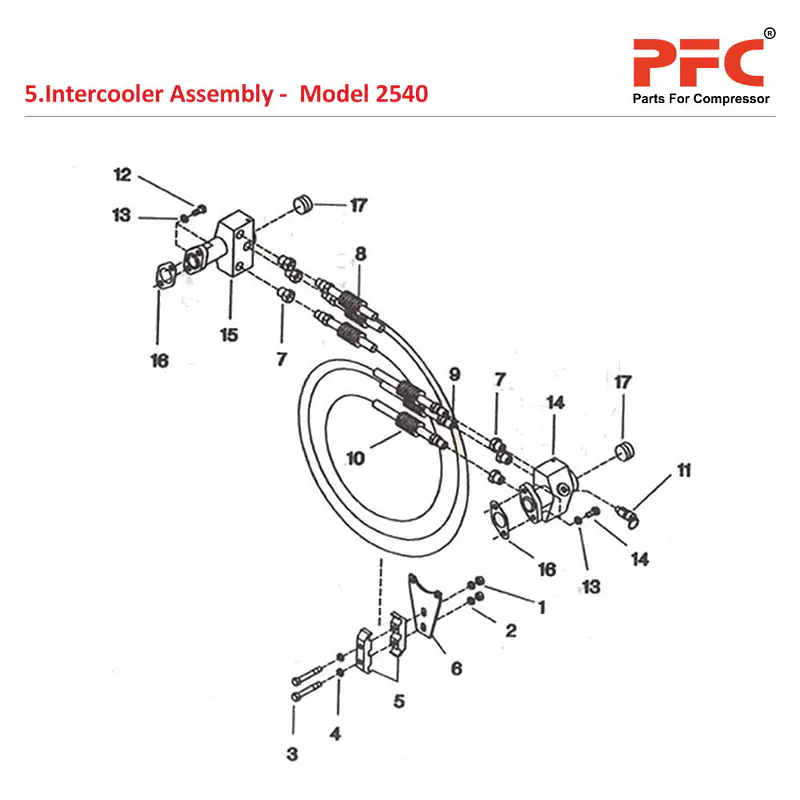

Intercooler Assembly
Ref. No. | Part No. | Description |
5-1 | Nut - Hex 3/8-16 | 95077764 |
5-2 | Lockwasher, Spring - 3/8" | 95081857 |
5-3 | Capscrew - Hex 3/8-16x 2-1/2" | 95079646 |
5-4 | Washer, Flat - 3/8" | 95069597 |
5-5 | Clamp - Intercooler Tube Outer | 94467750 |
5-6 | Bracket - Intercooler Clamp | 32182891 |
5-7 | Connector, Male - 5/8 X 1/2" | 95083226 |
5-8 | Tube Assembly # 3 Intercooler | 32211708 |
5-9 | Tube Assembly # 2 Intercooler | 32211690 |
5-10 | Tube Assembly # 1 Intercooler | 32211682 |
5-11 | Valve Relief - 60 Psig | 97048094 |
5-12 | Capscrew - Hex 3/8 - 16 X 1" | 95079612 |
5-13 | Lockwasher, Spring - 3/8" | 95081857 |
5-14 | Manifold - 1st Stage Airhead | 32185787 |
5-15 | Manifold - 2nd Stage Airhead | 32185795 |
5-16 | Gasket, Manifold | 32188377 |
5-17 | Plug, Pipe - Square Countersunk 1" | 95101457 |
Details
- type: product
- SKU: 254005
