DESCRIPTION
Intercooler Assembly For Ingersoll Rand Type 30 - Model 2545
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler Assembly For Ingersoll Rand Type 30 - Model 2545 from India.

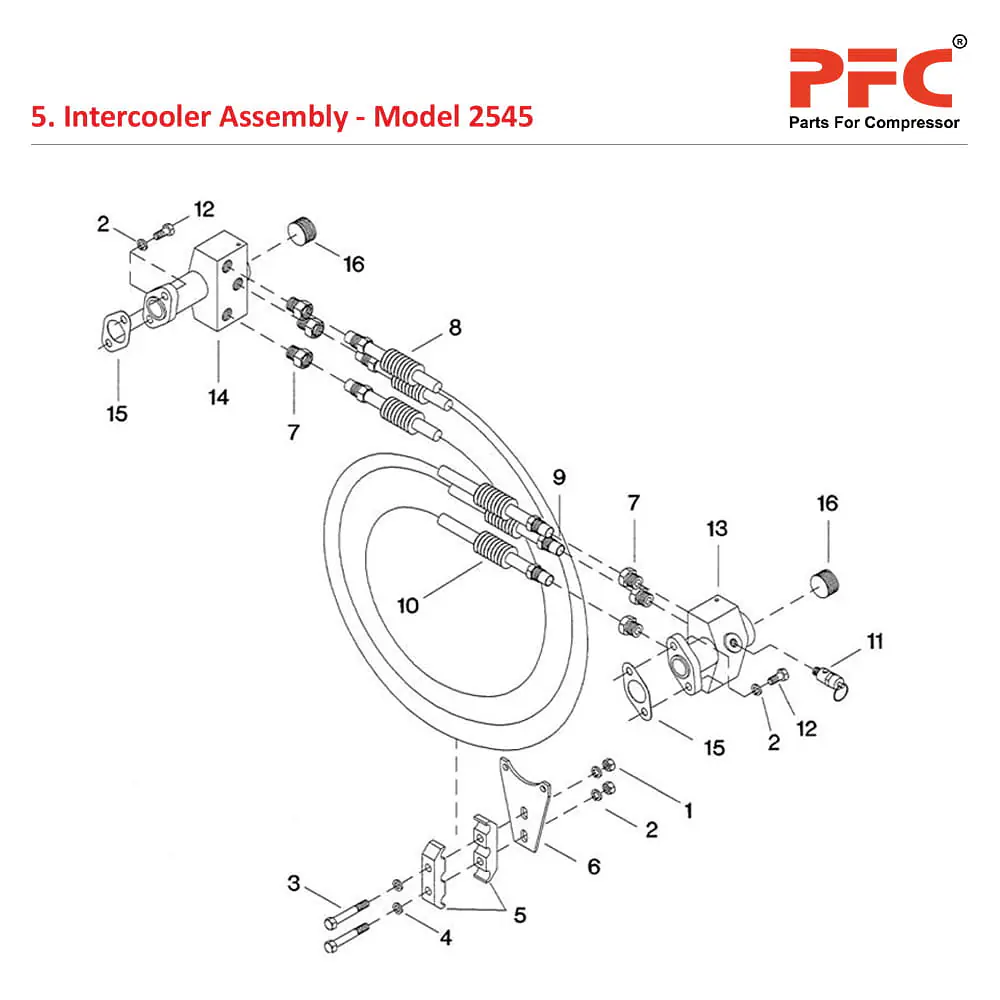

Intercooler Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32188666 | Assembly, Intercooler | 1 |
| 5-1 | 95077764 | Nut, Hex -3/8-16 | 2 |
| 5-2 | 95081857 | Lockwasher, Spring -3/8" | 6 |
| 5-3 | 95079646 | Capscrew, Hex -3/8-16 X 2-1/2" | 2 |
| 5-4 | 95069597 | Washer, Flat -3/8" | 2 |
| 5-5 | 32294159 | Clamp, Intercooler | 2 |
| 5-6 | 32294142 | Bracket, Intercooler Clamp | 1 |
| 5-7 | 95083226 | Connector, Male - 5/8 X 1/2" | 6 |
| 5-8 | 32211708 | Assembly, Tube - #3 Intercooler | 1 |
| 5-9 | 32211690 | Assembly, Tube - #2 Intercooler | 1 |
| 5-10 | 32211682 | Assembly, Tube - #1 Intercooler | 1 |
| 5-11 | 72062185 | Valve, Relief - 80 PSIG | 1 |
| 5-12 | 95468443 | Capscrew, Hex -3/8-16 X 1" | 4 |
| 5-13 | 32185787 | Manifold, Head - LP | 1 |
| 5-14 | 32185795 | Manifold, Head - HP | 1 |
| 5-15 | 32188377 | Gasket, Manifold | 2 |
| 5-16 | 95101457 | Plug, Pipe - Square Countersunk - 1" | 2 |
