DESCRIPTION
Intercooler & Shroud assembly For Ingersoll Rand Type 30 - Model 3000
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler & Shroud assembly For Ingersoll Rand Type 30 - Model 3000 from India.

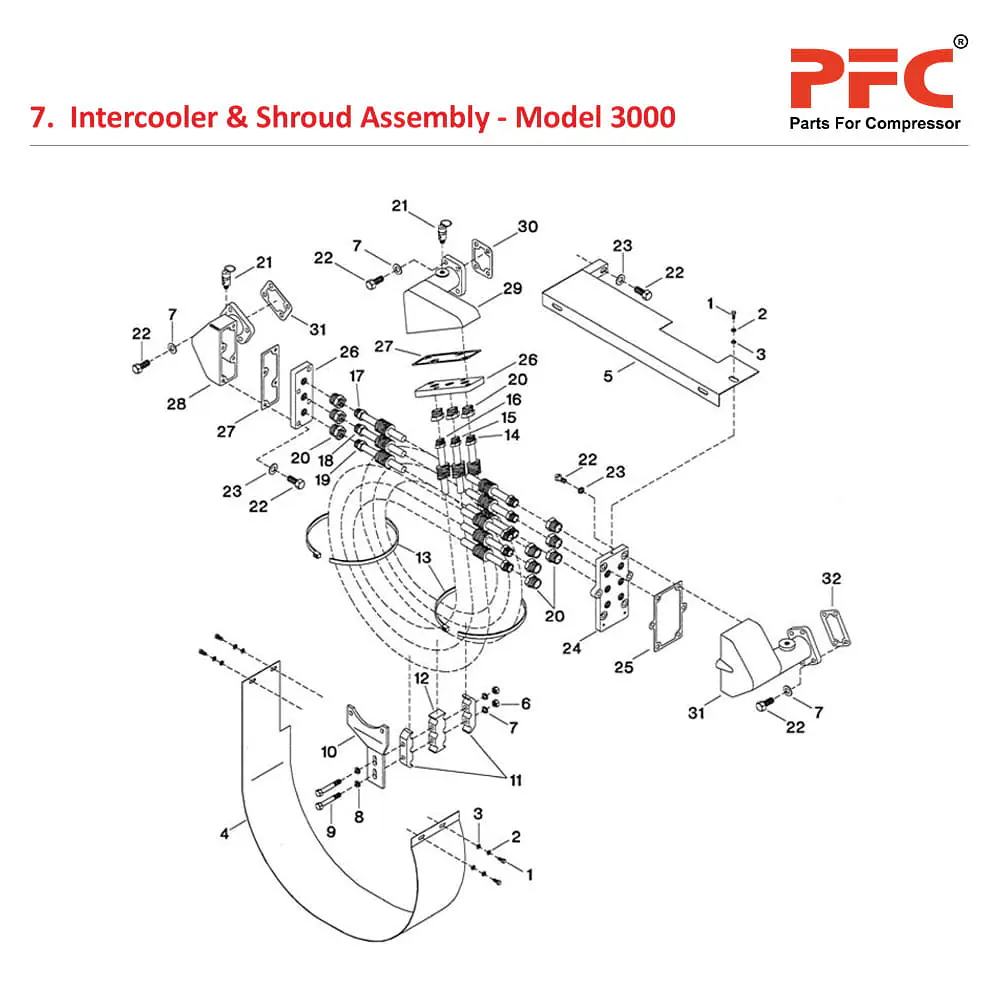

Intercooler & Shroud assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 7-1 | 95053070 | Capscrew, Hex Head - 1/4-20 X 1/2" | 5 |
| 7-2 | 95043196 | LockWasher, Spring -1/4" | 5 |
| 7-3 | 95094298 | Washer, Flat -1/4" | 5 |
| 7-4 | 32177693 | Shroud, Intercooler | 1 |
| 7-5 | 32180713 | Top, Shroud | 1 |
| 7-6 | 95077764 | Nut, Hex -3/8-16 | 2 |
| 7-7 | 95081857 | LockWasher, Spring -3/8" | 14 |
| 7-8 | 95069597 | Washer, Flat -3/8" | 2 |
| 7-9 | 95002895 | Capscrew, Hex Head - 3/8-16 X 4" | 2 |
| 7-10 | 32175515 | Bracket, Intercooler | 1 |
| 7-11 | 32165367 | Clamp, Intercooler Tube - Outer | 2 |
| 7-12 | 32165383 | Clamp, Intercooler Tube - Center | 1 |
| 7-13 | 95370888 | Tie, Cable | 2 |
| 7-14 | 32197006 | Assembly, Intercooler Tube - Finned -#3 | 1 |
| 7-15 | 32196990 | Assembly, Intercooler Tube - Finned -#2 | 1 |
| 7-16 | 32196982 | Assembly, Intercooler Tube - Finned -#1 | 1 |
| 7-17 | 32196974 | Assembly, Intercooler Tube - Finned -#3 | 1 |
| 7-18 | 32196966 | Assembly, Intercooler Tube - Finned -#2 | 1 |
| 7-19 | 32196958 | Assembly, Intercooler Tube - Finned -#1 | 1 |
| 7-20 | 95083226 | Connector, Male - 5/8 X 1/2" | 12 |
| 7-21 | 72062185 | Valve, Relief - 80 PSIG | 2 |
| 7-22 | 95079612 | Capscrew, Hex Head -3/8-16 X 1" | 27 |
| 7-23 | 95081857 | Lockwasher, Spring - 3/8" | 15 |
| 7-24 | 32180697 | Flange, Intercooler - High Pressure | 1 |
| 7-25 | 32160566 | Gasket, Flange - High Pressure | 1 |
| 7-26 | 32160475 | Flange, Intercooler - Low Pressure | 2 |
| 7-27 | 32160558 | Gasket, Flange - Low Pressure | 2 |
| 7-28 | 32160491 | Manifold, Intercooler - #1 Low Pressure | 1 |
| 7-29 | 32160509 | Manifold, Intercooler - #2 Low Pressure | 1 |
| 7-30 | 32153801 | Gasket, Manifold - Low Pressure | 2 |
| 7-31 | 32164519 | Manifold, Intercooler - High Pressure | 1 |
| 7-32 | 32153827 | Gasket, Manifold - High Pressure | 1 |
