DESCRIPTION
Intercooler & Shroud Assembly For Ingersoll Rand Type 30 - Model 7100
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler & Shroud Assembly For Ingersoll Rand Type 30 - Model 7100 from India.

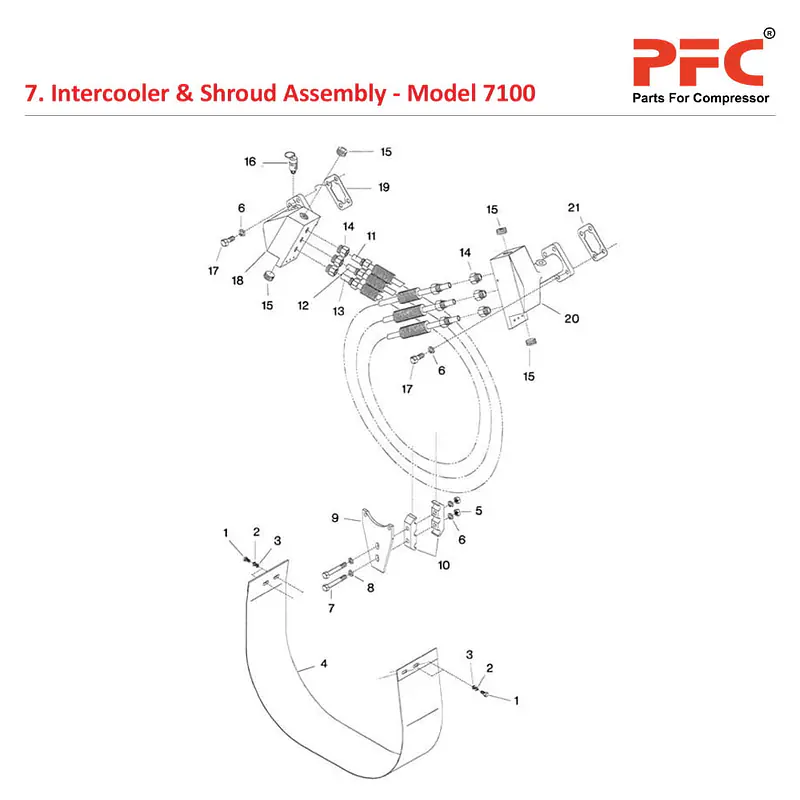

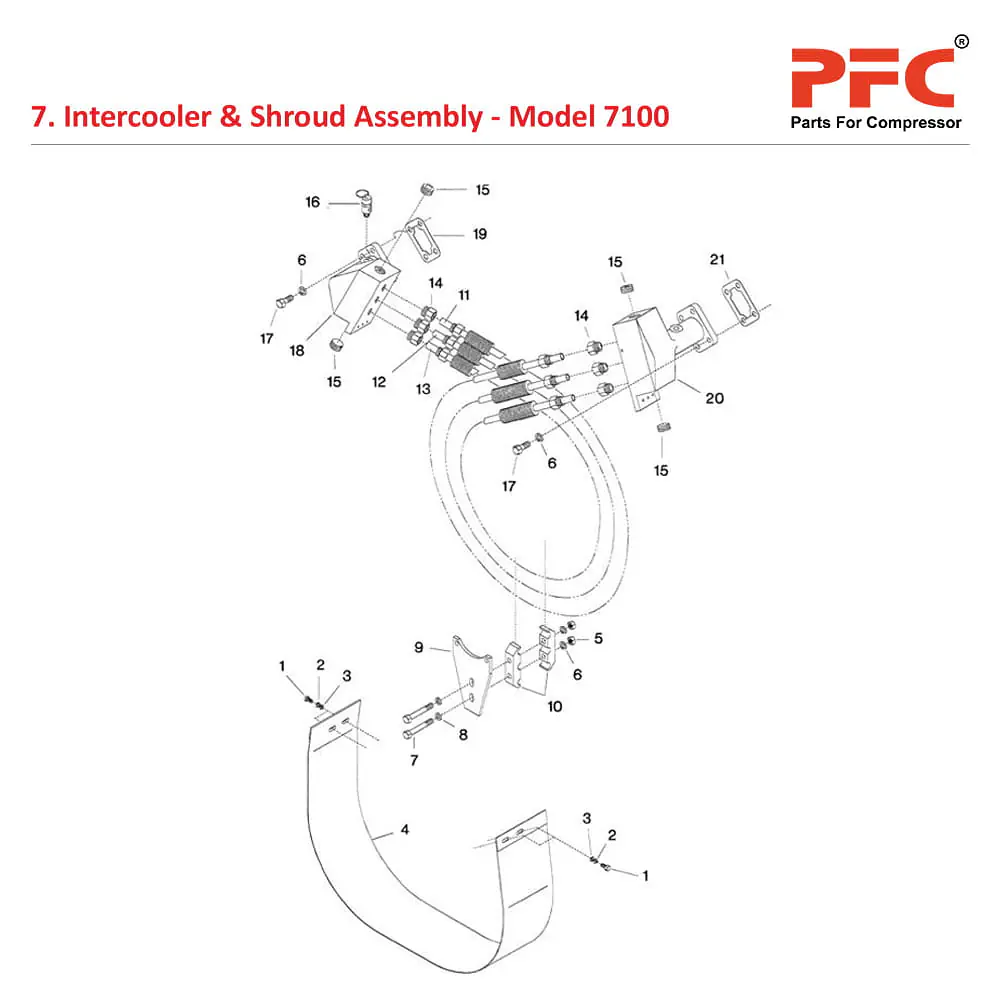

Intercooler & Shroud Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| 7-1 | 95053070 | Capscrew,Hex Head-1/4-20X1/2" (if provided) | 4 |
| 7-2 | 95043196 | Lockwasher, Spring - 1/4" (If Provided) | 4 |
| 7-3 | 95094298 | Washer, Flat 1/4" (if provided) | 4 |
| 7-4 | 32205361 | Shroud, Intercooler (If provided) | 1 |
| 7-5 | 95077764 | Nut, Hex - 3/8 - 16 | 2 |
| 7-6 | 95081857 | Lockwasher, Spring - 3/8" | 10 |
| 7-7 | 95079646 | Capscrew, Hex Head-3/8-16X2-1/2" | 2 |
| 7-8 | 95069597 | Washer, Flat - 3/8" | 2 |
| 7-9 | 32175010 | Bracket, Intercooler | 1 |
| 7-10 | 32165367 | Clamp, Intercoller Tube - Outer | 2 |
| 7-11 | 32196941 | Ass'y, Intercooler Tube - Finned - # 3 | 1 |
| 7-12 | 32196933 | Ass'y, Intercooler Tube - Finned - # 2 | 1 |
| 7-13 | 32196925 | Ass'y, Intercooler Tube - Finned - # 1 | 1 |
| 7-14 | 95083226 | Connector, Male - 5/8 X 1/2" | 6 |
| 7-15 | 95101457 | Plug, Pipe - Square Countersunk - 1" | 4 |
| 7-16 | 72062185 | Valve, Relief - 80 PSIG | 2 |
| 7-17 | 95079612 | Capscrew, Hex Head-3/8-16 X 1" | 8 |
| 7-18 | 32177313 | Manifold, Intercooler- Low Pressure | 1 |
| 7-19 | 32153801 | Gasket, Manifold - Low Pressure | 2 |
| 7-20 | 32177347 | Manifold, Intercooler- High Pressure | 1 |
| 7-21 | 32153827 | Gasket, Manifold - High Pressure | 1 |
