Intercooler & Tubing IR 2340 Air Compressor Parts
Regular price
₹0.00
Intercooler & Tubing IR 2340 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Intercooler Assembly & Tubing For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Intercooler Assembly & Tubing For Ingersoll Rand Type 30 - Model 2340 from India.

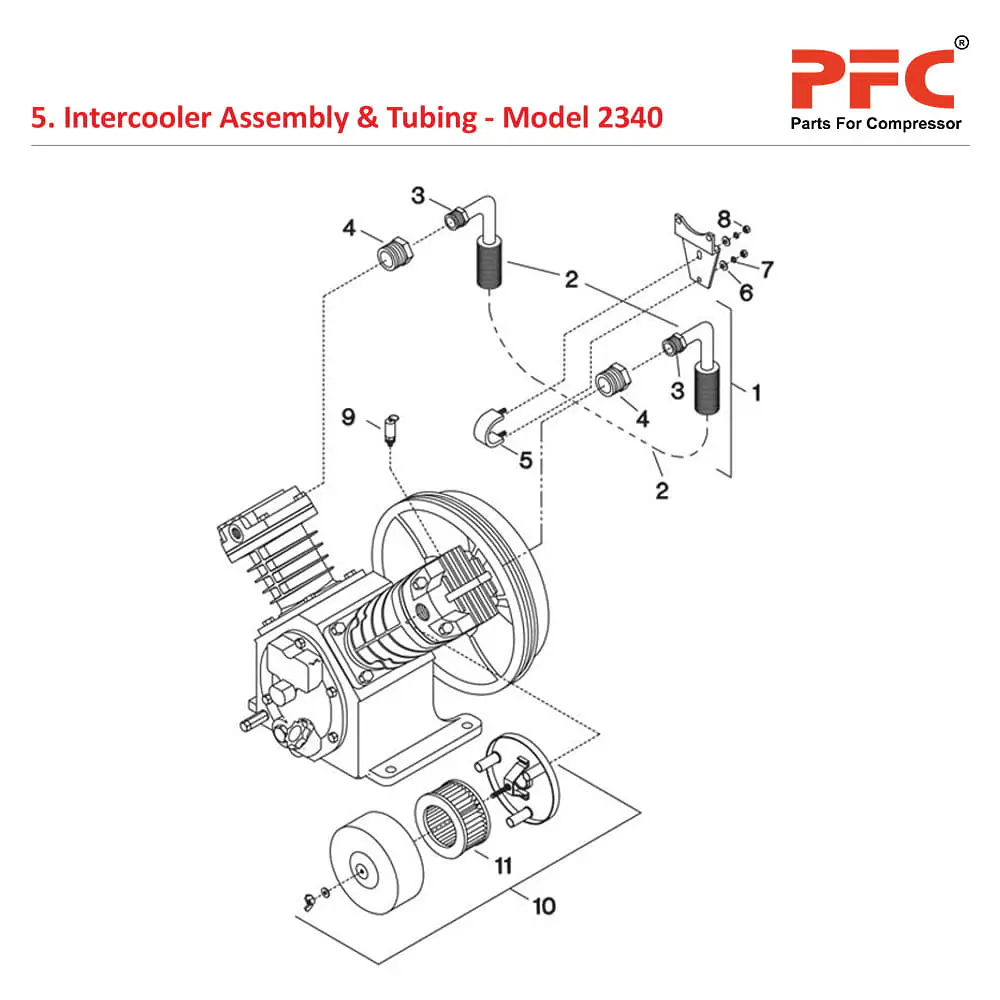

Intercooler Assembly & Tubing.(Clockwise Rotating Unit Shown Below)
| Sr.No | Ref. Part Number | Description | Qty |
| 5-1 | 97331003 | Assy., Intercooler | 1 |
| 5-2 | 97330997 | – Intercooler | 1 |
| 5-3 | 95108577 | – Nut, Tube - 3/4" | 2 |
| 5-4 | 95083275 | – Connector, Tube - 3/4" X 3/4" | 2 |
| 5-5 | 32247942 | Clamp, Intercooler | 1 |
| 5-6 | 95094298 | Washer, Flat - 1/4" | 2 |
| 5-7 | 32035479 | Lockwasher, Spring - 1/4" | 2 |
| 5-8 | 95416335 | Nut, Hex - 1/4-20 | 2 |
| 5-9 | 72062185 | Valve, Relief - 80 PSIG | 1 |
| 5-10 | 32170953 | Filter, Inlet - Complete | 1 |
| 5-11 | 32170979 | – Element, Filter - 10 Micron | 1 |
