LP Concentric Ring Valve IR 5T2 NL Parts
Regular price
₹0.00
LP Concentric Ring Valve IR 5T2 NL Parts
Regular price
₹0.00
DESCRIPTION
Low Pressure Concentric Ring Valve For Ingersoll Rand Type 30 - Model 5T2NL
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts - Low Pressure Concentric Ring Valve For Ingersoll Rand Type 30 - Model 5T2NL from India.

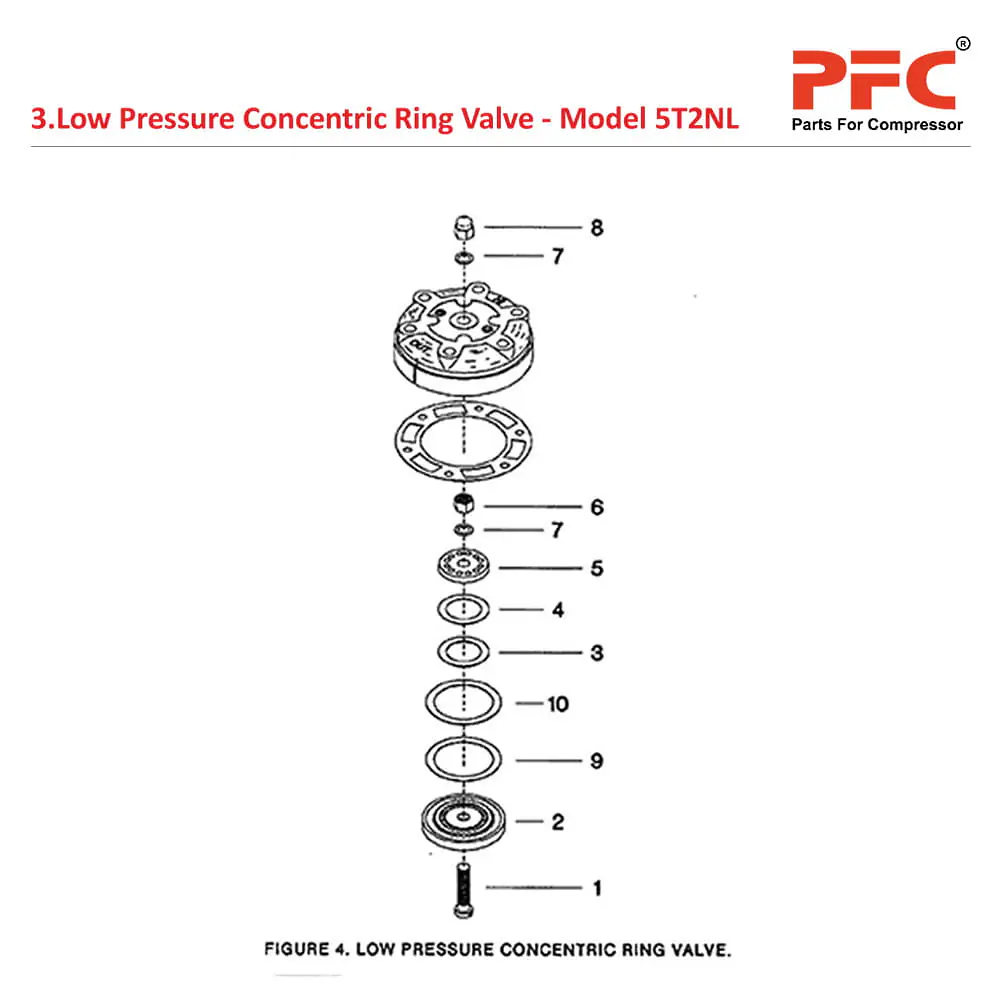

Low Pressure Concentric Ring Valve
| REF. NBR. | PART NO. | DESCRIPTION | UNITS PER ASSY. |
| REF. | 37004843 | Valve, 50 - Complete | 1 |
| 4-1 | 30279897 | – Bolt, Valve | 1 |
| 4-2 | 30229538 | – Seat, Valve | 1 |
| 4-3 | 30181499 | – Plate, Valve - Discharge/Inlet | 1 |
| 4-4 | 30221501 | – Spring, Valve - Discharge/Inlet | 1 |
| 4-5 | 30218978 | – Plate, Stop | 1 |
| 4-6 | 95076816 | – Nut, Hex | 1 |
| 4-7 | 37092897 | – Washer, Belleville | 2 |
| 4-8 | 30287650 | – Nut, Acorn | 1 |
| 4-9 | 30221550 | – Spring, Valve - Inlet | 1 |
| 4-10 | 30215891 | – Plate, Valve - Inlet | 1 |
