DESCRIPTION
Low Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2340
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Low Pressure Valve Plate Assembly For Ingersoll Rand Type 30 - Model 2340 from India.

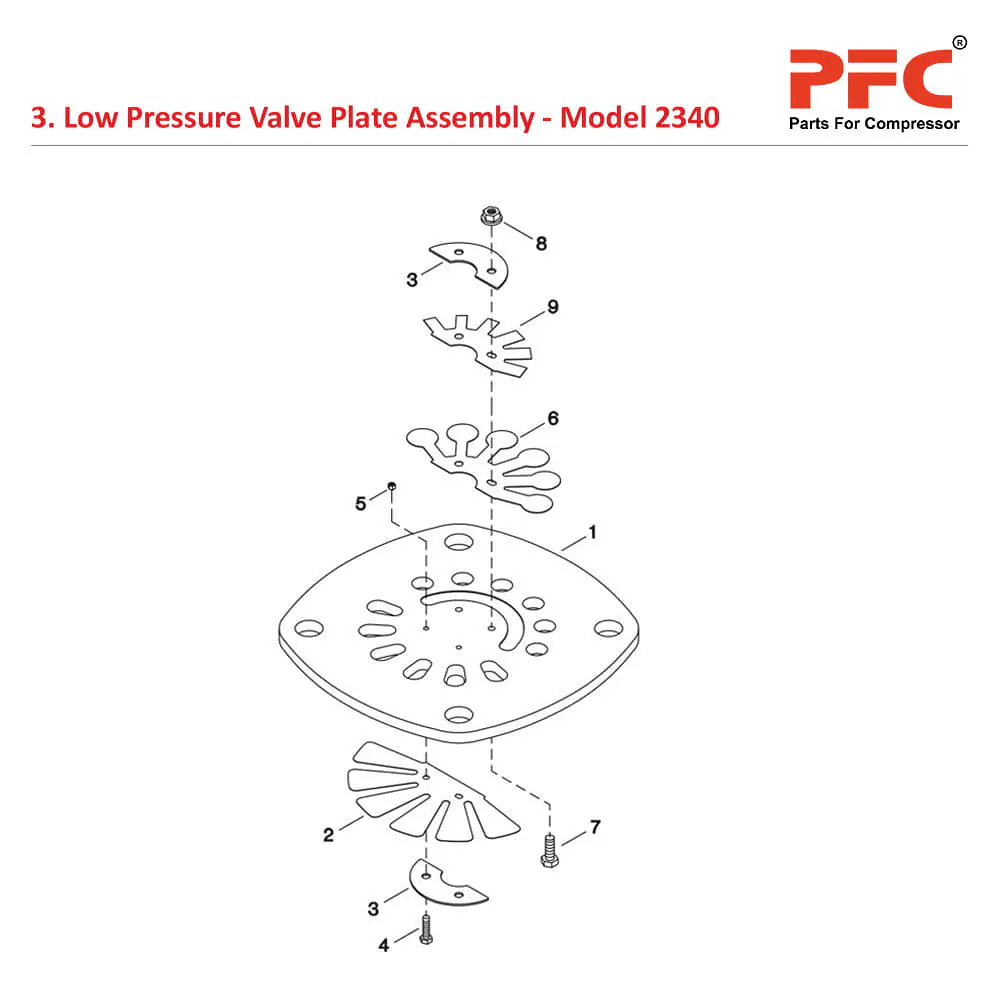

Low Pressure Valve Plate Assembly
| Sr.No | Ref. Part Number | Description | Qty |
| REF | 32310807 | Assy, Valve Plate - LP | 1 |
| 3-1 | NSS | – Plate, Valve - LP | 1 |
| 3-2 | 32241002 | – Valve, Finger - LP Inlet | 1 |
| 3-3 | 97511091 | – Retainer, Valve - LP | 2 |
| 3-4 | 32297327 | – Screw, M3 X 12 | 2 |
| 3-5 | 97511059 | – Nut, Hex - M3 W/Lockwasher | 2 |
| 3-6 | 32241036 | – Valve, Finger - LP Discharge | 1 |
| 3-7 | 32247512 | – Screw, M4 X 12 Hex Head | 2 |
| 3-8 | 32248171 | – Nut, M4 Hex | 2 |
| 3-9 | 32294472 | – Damper, Valve | 1 |
