DESCRIPTION
Assembly Lubricator 1 feed For Ingersoll Rand Model - 9 1/2 x 5 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly Lubricator 1 feed For Ingersoll Rand Model - 9 1/2 x 5 LUB from India

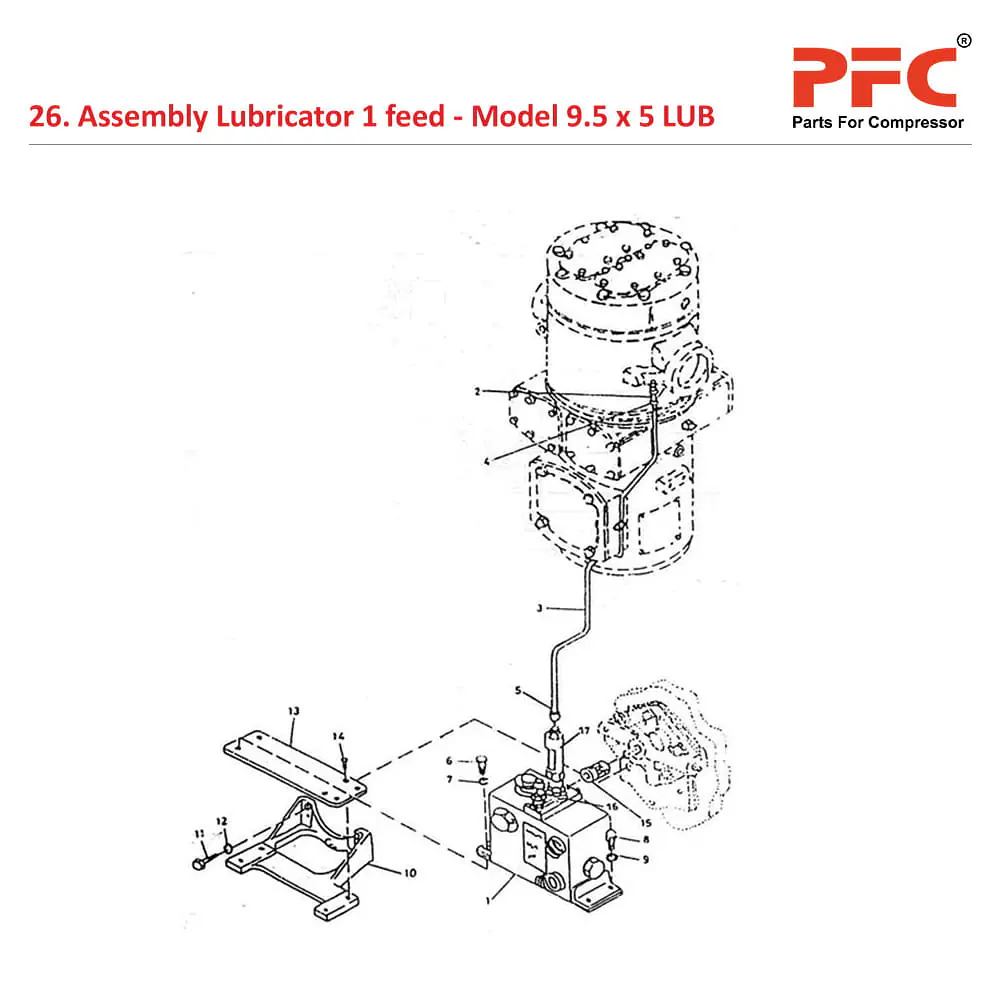

ASSEMBLY LUBRICATOR 1 FEED
| Sr. No | Description | Ref Part Nos | Qty |
| 1 | LUBRICATOR 1 FEED | 37045994 | 1 |
| 2 | VALVE CHECK ANGLE | 37026218 | 1 |
| 3 | TUBE 1/4" | 70387246 | 10 |
| 4 | CONNECTOR MALE 1/4" X 1/8" | 70219647 | 1 |
| 5 | CONNECTOR MALE 1/4" X 1/8" | 70219647 | 1 |
| 6 | SCREW CAP HEX 3/8" X 1" H.T. | 95035333 | 2 |
| 7 | WASHER SPRING 3/8" | 95081857 | 2 |
| 8 | SCREW CAP HEX HEAD 3/8" X 3/4" | 95103743IM | 2 |
| 9 | WASHER SPRING 3/8" | 95081857 | 2 |
| 10 | BRACKET LUBRICATOR | 30180541 | 1 |
| 11 | BOLT HEX HEAD 7/16" X 1" | 95104006 | 3 |
| 12 | WASHER SPRING 7/16" | 95081865 | 3 |
| 13 | STRIP BRACKET ADAPTER | 31538556 | 1 |
| 14 | SCREW MACHINE 3/8" X 5/8" | 95051363 | 2 |
| 15 | COUPLING FLEXIBLE | 30182737 | 1 |
| 16 | FEED PUMP LUBRICATOR | 30335575 | 1 |
| 17 | SIGHT UNIT | 97086243 | 1 |
