DESCRIPTION
Machinery(Alicab) 0174882000 Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Machinery(Alicab) 0174882000 for Alimak Pneumatic Raise Climber from India
Product
- Page 1

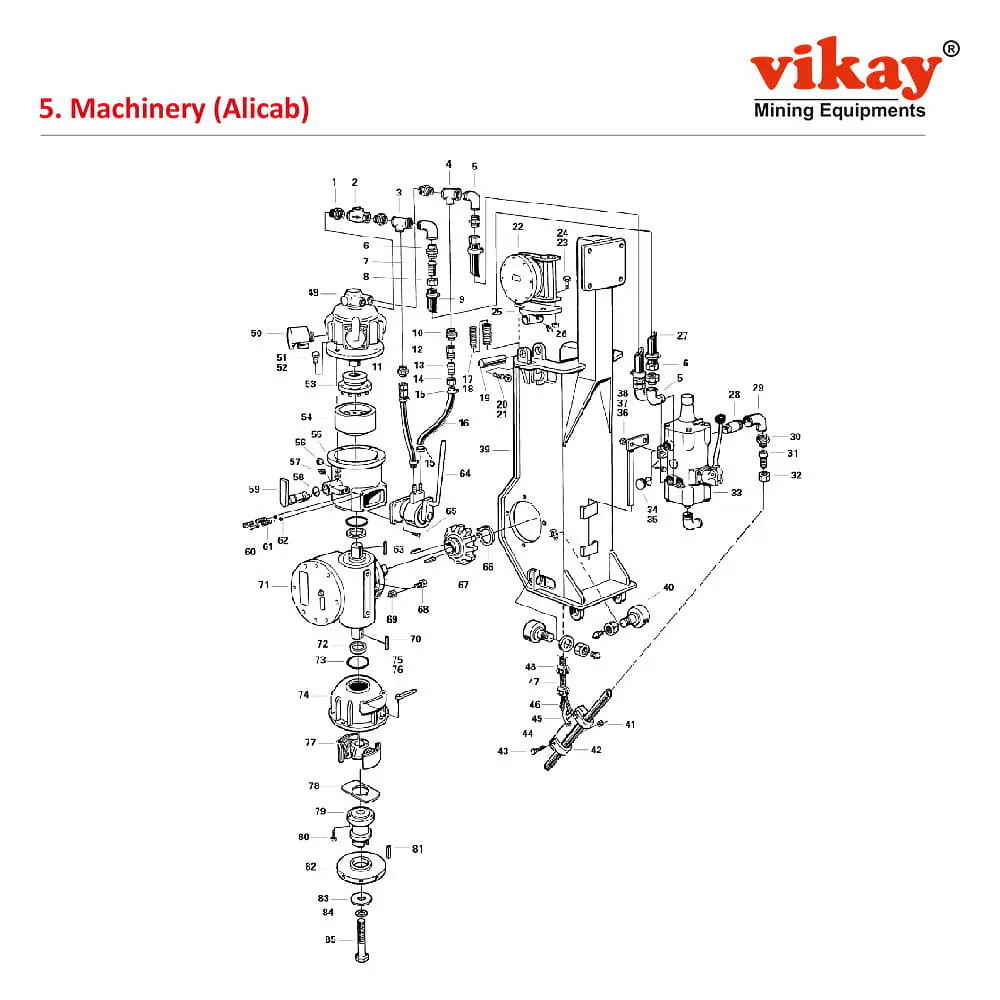

Machinery(Alicab) 0174882000
| No. | Description | Designation | Ref. Part No. | ||
| Machinery (Alicab) | 0174882000 | ||||
| 1 | Hexagon nipple | 3000840116 | |||
| 2 | Check valve | 0470156000 | |||
| 3 | Tee | 3000839461 | |||
| 4 | Tee | 3000837516 | |||
| 5 | Elbow | 3000839216 | |||
| 6 | Hexagon nipple | 0415998000 | |||
| 7 | Hose nipple | 0416002000 | |||
| 8 | Nut | 0415997000 | |||
| 9 | Hose clamp | 3000931197 | |||
| 10 | Hexagon nipple | 3000840214 | |||
| 11 | Hexagon nipple | 3000840113 | |||
| 12 | Hexagon nipple | 0415999000 | |||
| 13 | Hose nipple | 0416000000 | |||
| 14 | Nut | 0416001000 | |||
| 15 | Hose clamp | 3000253024 | |||
| 16 | Hose | 3001150201 | |||
| 17 | Spring | 0413682000 | |||
| 18 | Spring | 0413683000 | |||
| 19 | Shaft | 0471180000 | |||
| 20 | Screw | T6SS 8x25 SMS 2182 | 3000150453 | ||
| 21 | Nut | MBM 8-8.-fz | 3000081118 | ||
| 22 | Safety device | 0277407000 | |||
| 23 | Screw | M6S 16x45-8.8-fz | 3000071629 | ||
| 24 | Lock nut | L-K M6M16-8.-fz | 3000438124 | ||
| 25 | Bracket | 0276877000 | |||
| 26 | Grease nipple | 3000221026 | |||
| 27 | Hose | 3001150251 | |||
| 28 | Nipple pipe | 3000837251 | |||
| 29 | EIbow | 3000839116 | |||
| 30 | Hexagon nipple | 0415998000* | |||
| 31 | Hose nipple | 0416002000 * | |||
| 32 | Nut | 0415997000 * | |||
| 33 | Control valve | 0145097000 * | |||
| 34 | O-ring | 3000136408 | |||
| 35 | Plug | 0413688000 | |||
| 36 | Bracket | 0374916000 | |||
| 37 | Screw | M6S 12x50-8.8-fz | 3000071542 | ||
| 38 | Lock nut | L- K M6M 12-8.-fz | 3000438122 | ||
| 39 | U-frame | 438665 | 9001018000 | ||
| 40 | Guide roller | 9018650000 | |||
| 41 | Lock nut | L-K M6M10-8.-fz | 3000438120 | ||
| 42 | Clamp | 0474941000* | |||
| 43 | Screw | M6S 10x35-8.8-fz | 3000071497 | ||
| 44 | Yoke | 0474940000 | |||
| 45 | Shackle | 3000860103 | |||
| 46 | Thimble | 3000305608 | |||
| 47 | Wire | 3001114108 | |||
| 48 | Wire clip | 3000211203 | |||
| 49 | Air motor (K-14V) | 113752 | 9013834101 | ||
| 50 | Outlet valve | 0492402000 | |||
| 51 | Screw | M6S 12x50-8.8-fz | 3000071542 | ||
| 52 | Lock nut | L-K M6M12-8.-fz | 3000438122 | ||
| 53 | Coupling | 0475155000 | |||
| 54 | Brake drum | 0371072000 | |||
| 55 | Coupling housing | 272595 | 9001006000 | ||
| 56 | Plug | 3000858151 | |||
| 57 | Grease nipple | 3000221046 | |||
| 58 | O-ring | 3000136407 | |||
| 59 | Coupling Lever | 0472855000 | |||
| 60 | Pipe Plug | 3000840510 | |||
| 61 | Spring | 0412234000 | |||
| 62 | Steel Ball | 3000131032 | |||
| 63 | Key | 3000741436 | |||
| 64 | Brake Cylinder | 0275684000 | |||
| 65 | Screw | M6S 10x30-8.8-fz | 3000071495 | ||
| 66 | Circlip | 3000132142 | |||
| 67 | Pinion | 0371053000 | |||
| 68 | Screw | M6S 16x45-8.8-fz | 3000071629 | ||
| 69 | Lock Nut | L-K M6M 16-8.8.-fz | 3000438124 | ||
| 70 | Key | 3000137439 | |||
| 71 | Worm gear | 278190/278192 | 0289985000 | ||
| 72 | Sealing ring | 3000916192 | |||
| 73 | O-ring | 272596 | 3000136431 | ||
| 74 | Brake drum | 9001015102 | |||
| 75 | Screw | M6S 6x12-8.8-fz | 3000071366 | ||
| 76 | Inspection over | 0474796000 | |||
| 77 | Nave w. centrifugal | 478175 | 9001014000 | ||
| Weights | |||||
| 78 | Support plate | 0478078000 | |||
| 79 | Nave | 0374887000 | |||
| 80 | Screw | M6S 10x25-8.8-fz | 3000071493 | ||
| 81 | Key | 3000742425 | |||
| 82 | Flywheel | 0371349000 | |||
| 83 | Washer | 0411672000 | |||
| 84 | Washer | BRB 13,5x24 HB200-fz | 3000091179 | ||
| 85 | Screw | M6S 12x130-8.8-fz | 3000071558 |
