Oil Lubricator Atlas Copco Cavo 310 Parts
Regular price
₹0.00
Oil Lubricator Atlas Copco Cavo 310 Parts
Regular price
₹0.00
DESCRIPTION
Oil Lubricator Replacement
Vikay is a global supplier of new aftermarket replacement parts - Oil Lubricator for Atlas Copco Mucking Loader Cavo-310 from India.
Product
- Page 1

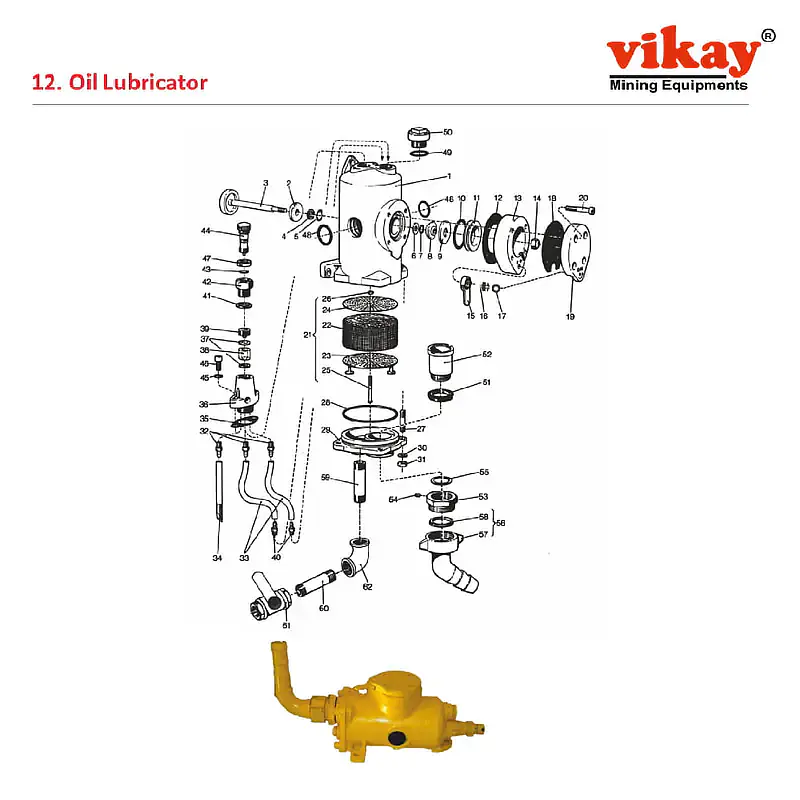

Oil Lubricator
| No. | Description | Modified | Ref. Part No. | ||
| Lubricator Complete | 5042016583 | ||||
| 1 | Container (Not Delivered Separately) | 5042016500 | |||
| 2 | Gasket | 5042020200 | |||
| 3 | Valve | 5042020600 | |||
| 4 | Washer | 5042019900 | |||
| 5 | Circlip | 0335111400 | |||
| 6 | Washer | 0301214100 | |||
| 7 | O Ring | 0663211600 | |||
| 8 | Bushing | 5042020500 | |||
| 9 | Gasket | 5042020300 | |||
| 10 | O Ring | 0663214000 | |||
| 11 | Piston bronze | 5042021000 | |||
| 12 | Gasket | 5042021100 | |||
| 13 | Spacer | 5042021300 | |||
| 14 | Lock Nut | 0291111100 | |||
| 15 | Lever | 5042014800 | |||
| 16 | Pin | 0101132000 | |||
| 17 | Cup Washer | 0384315600 | * | M10435 | |
| 18 | Gasket | 5042021200 | |||
| 19 | Cover | 5042021400 | |||
| 20 | Screw | 0211133000 | |||
| 21 | Filter Element Complete | 5042014181 | |||
| 22 | Element | 5096988800 | |||
| 23 | Spacer | 5042017200 | |||
| 24 | Spacer | 5096988480 | |||
| 25 | Screw | 0166121700 | |||
| 26 | Nut | 0266110700 | |||
| 27 | Stud | 0246128100 | |||
| 28 | O Ring | 0663614900 | |||
| 29 | Cover | 5042017000 | |||
| 30 | Spring Washer | 0333213600 | |||
| 31 | Nut | 0266111200 | |||
| 32 | Nipple | 5042016700 | |||
| 33 | Hose | 5054011000 | |||
| 34 | Pressure Hose | 5042017300 | |||
| 35 | Gasket | 5042016800 | |||
| 36 | Valve Housing | 5042016600 | |||
| 37 | Gasket | 5041013000 | |||
| 38 | Sight Class | 5041015100 | |||
| 39 | Screw | 5041016000 | |||
| 40 | Nipple | 5042024100 | |||
| 41 | Gasket | 5041013400 | * | M10459 | |
| 42 | Adapter | 5041012200 | * | M10460 | |
| 43 | O Ring | 0663212000 | |||
| 44 | Set Screw | 5041015900 | |||
| 45 | Spring Washer | 0333213000 | |||
| 46 | Screw | 0211136300 | |||
| 47 | Nut | 0295310500 | |||
| 48 | O Ring | 0663213600 | |||
| 49 | O Ring | 0663213300 | |||
| 50 | Plug | 5042024400 | |||
| 51 | Seal Ring PU | 0665705100 | |||
| 52 | Sleeve | 5042014900 | |||
| 53 | - Adapter | 5042015080 | |||
| 54 | - Screw | 0194132000 | |||
| 55 | - Gasket | 0653119500 | |||
| 56 | Hose Nipple Complete 1 1/2" | 5105083700 | |||
| 57 | -Hose Nipple | - | |||
| 58 | -Gasket | 9000002600 | |||
| PARTS FOR AIR OUTLET | |||||
| 59 | -Tube | 0551320600 | |||
| 60 | -Tube | 0551321400 | |||
| 61 | - Valve | 8202090109 | |||
| 62 | - Elbow | 0560100600 |
