DESCRIPTION
Oil Pump for Atlas Copco Air Compressor
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Oil Pump Parts for Atlas Copco Air Compressor from India

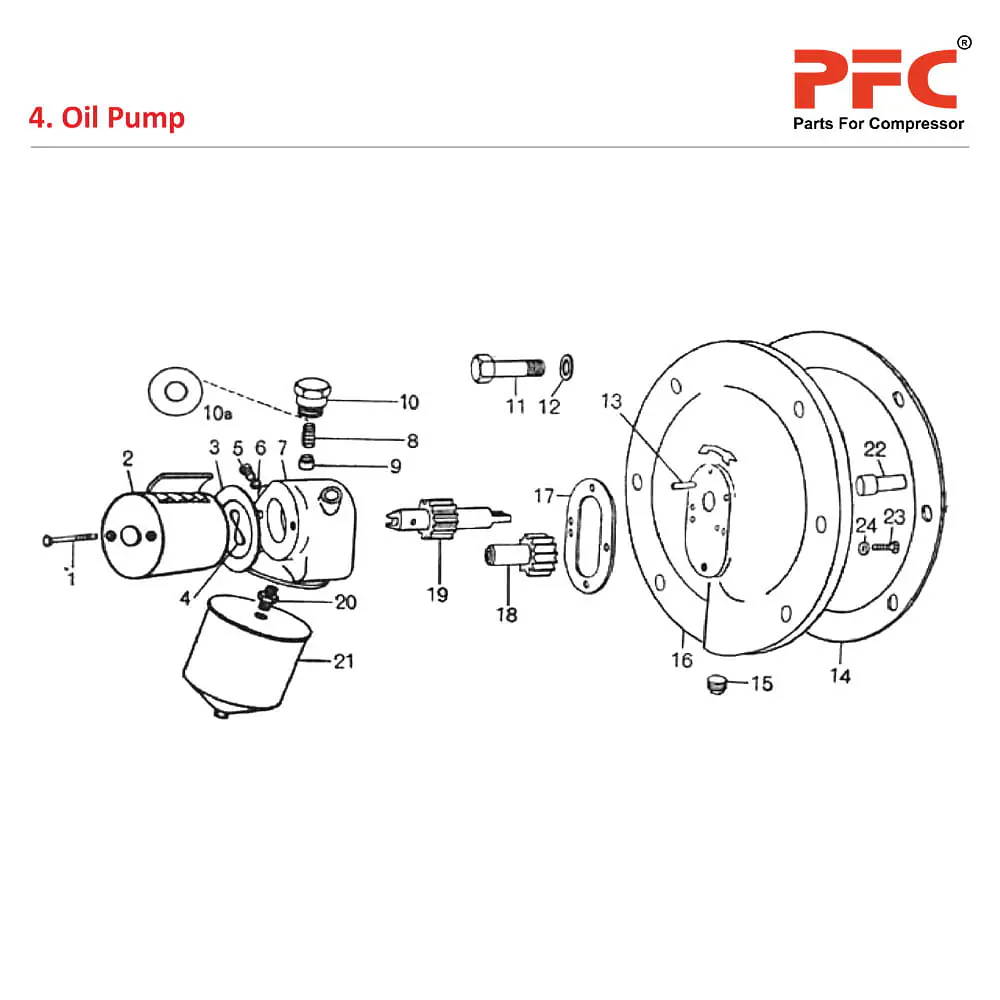

OIL PUMP
| SR. NO. | DESCRIPTION | REF PART NO. | QTY |
| 1 | Screw ECS 1/4" UNC X 55 | 160321400 | 2 |
| 2 | Hourmeter, compl. | 9718253700 | 1 |
| 3 | – Gasket | 1614098800 | 1 |
| 4 | – O-Ring | 663312500 | 1 |
| 5 | Plug 1/8" BSP | 663370100 | 1 |
| 6 | Washer 10/14 x 1, copper | 653104100 | 1 |
| 7 | Housing, pump | 1404166200 | 1 |
| 8 | Spring | 1090023400 | 1 |
| 9 | Valve, overflow | 1614022800 | 1 |
| 10 | Plug | 1614022902 | 1 |
| 10a | Washer 17/21 x 1, copper | 653110000 | 1 |
| 11 | Screw U6S 3/8" UNC x 7/8" D 80 | 144328600 | 6 |
| 12 | Spring washer FBB 10.2 | 333213000 | 6 |
| 13 | Pin, elastic FRP 4.3 x 24 | 108124400 | 2 |
| 14 | Gasket | 1616037200 | 1 |
| 15 | Plug 3/8" UNC | 686176600 | 1 |
| 16 | Housing, bearing | 1614038200 | 1 |
| 17 | Gasket | 1614022700 | 1 |
| – | Drive Shaft Set For Oil Pump | VT DRIVESET | |
| 18 | – Wheel, gear (driven) | 1614023300 | 1 |
| 19 | – Wheel, gear (driving) | 1614022302 | 1 |
| 20 | Nipple | 1404166400 | 1 |
| 21 | Filter, oil | 1030088200 | 1 |
| 22 | Pipe | 1616023400 | 1 |
| 23 | Screw ECS 1/4" UNC X 30 | 160320900 | 4 |
| 24 | Spring washer FBB 6.5 | 333212100 | 4 |
