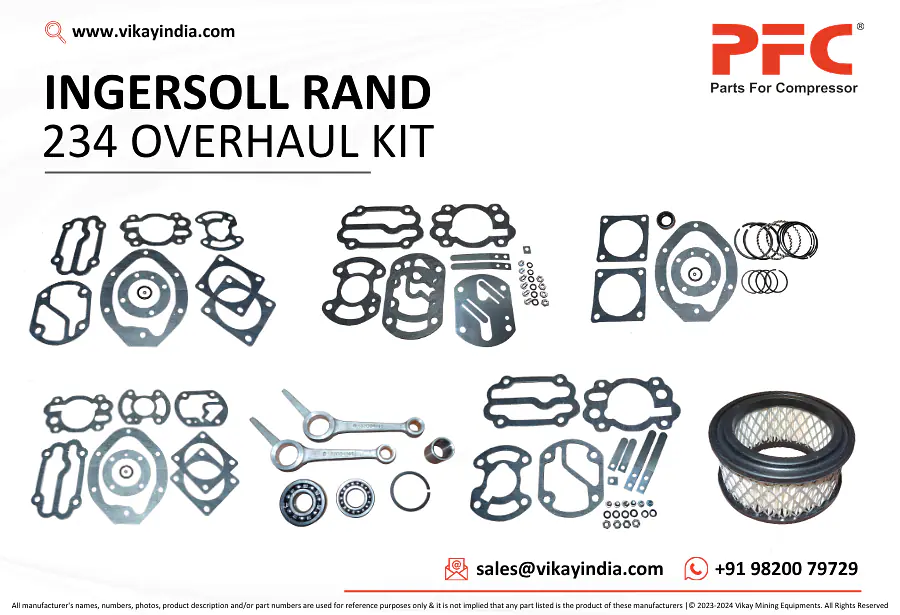

Overhaul Kit 32305922 IR 234 Replacement

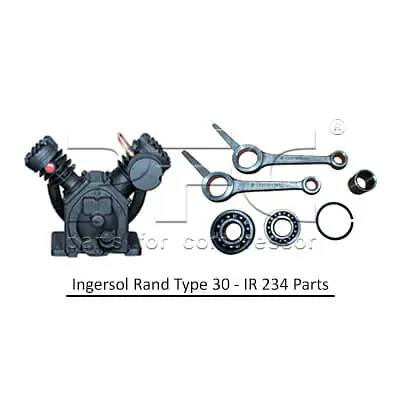

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 234 replacement from India.
Product
Overhaul Kit 32305922 IR 234 Replacement

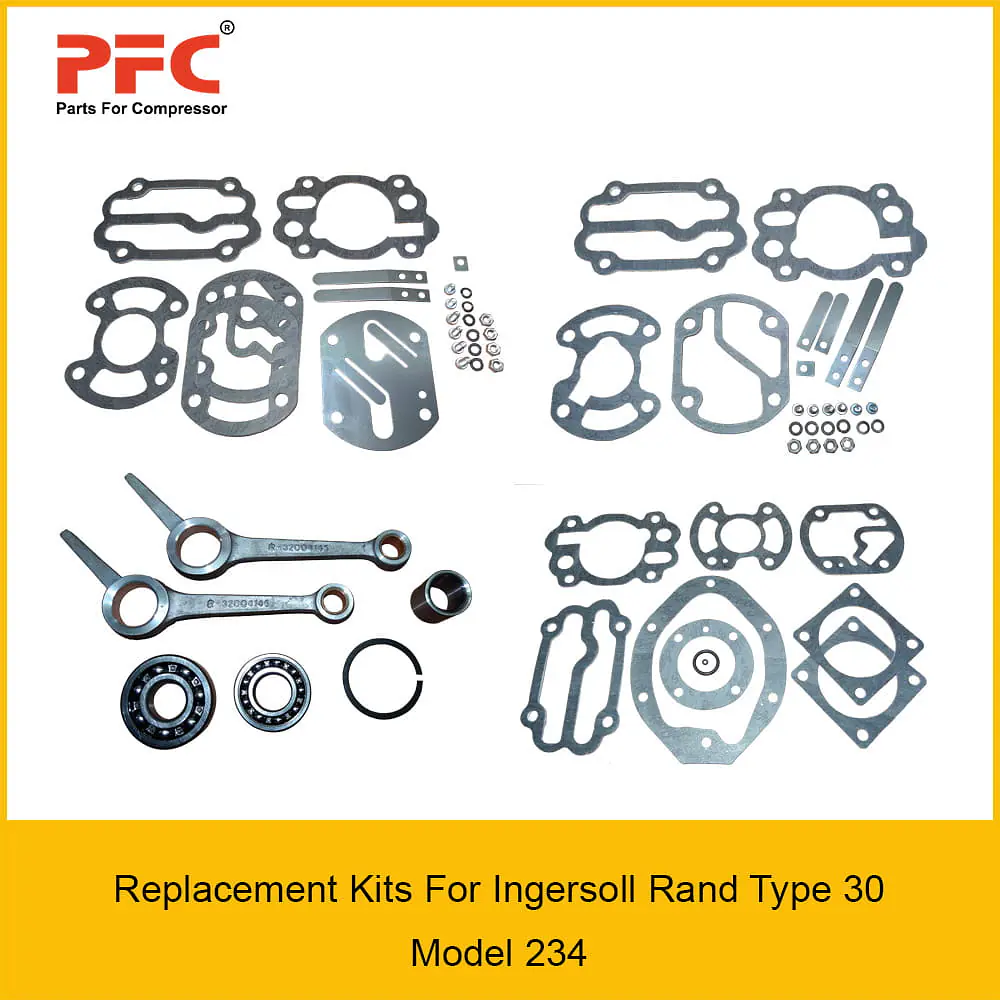

Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32127359 | -- |
| Crankpin Bushing | 30289813 | 1 | |
| Connecting Rod | 32004145 | 2 | |
| Ball Bearing | 95930400 | 1 | |
| Ball Bearing W/Snap Ring | 95951216 | 1 | |
| B | Gasket Set (S/N. 567999 And Down) | 30420327 | -- |
| Oil Filler Plug O-Ring | 95022158 | 1 | |
| O-Ring (95210225) | 95022695 | 1 | |
| LP Head Gasket | 32232761 | 1 | |
| LP Spacer Gasket | 30280499 | 1 | |
| Cylinder Flange Gasket | 30294227 | 2 | |
| Frame End Cover Gasket | 30299226 | 1 | |
| Shaft End Cover Gasket | 30295034 | 1 | |
| HP Spacer Gasket | 30280390 | 1 | |
| HP Head Gasket | 30786164 | 1 | |
| C | Valve/Gasket Kit (New Style) (S/N. 568000 And Up) | 32159337 | -- |
| HP Finger Valve | 30220115 | 2 | |
| LP Finger Valve | 30221170 | 2 | |
| HP Head Gasket | 32144552 | 1 | |
| LP Head Gasket | 32232761 | 1 | |
| HP Spacer Gasket | 32144545 | 1 | |
| LP Spacer Gasket | 30280499 | 1 | |
| Screw Filliester Head 1/4-20 x 1/4 | 32035495 | 2 | |
| Washer Belleville | 32217382 | 2 | |
| Nut-Hex 1/4-20 | 95416335 | 4 | |
| Lock Washer, Spring - 1/4 (95648150) | 32035479 | 4 | |
| Screw Fillister Head - 1/4-20 x 1/2 | 32035461 | 4 | |
| Shim Finger Valve | 32139891 | 1 | |
| D | Ring/Gasket Kit | 32198301 | -- |
| HP Ring Set | 37138237 | 1 | |
| LP Ring Set | 32194276 | 1 | |
| Oil Seal | 32204521 | 1 | |
| Oil Filler Plug O-Ring | 95022158 | 1 | |
| O-Ring | 95022695 | 1 | |
| Flange Gasket | 30294227 | 2 | |
| Frame End Cover Gasket | 30299226 | 1 | |
| Shaft End Cover Gasket | 30295034 | 1 | |
| E | Gasket Set (S/N. 568000 And Up) | 32159311 | -- |
| Oil Filler Plug O-Ring | 95022158 | 1 | |
| O-Ring | 95210225 | 1 | |
| LP Head Gasket | 32232761 | 1 | |
| LP Head Spacer Gasket | 30280499 | 1 | |
| Cylinder Flange Gasket | 30294227 | 2 | |
| Frame End Cover Gasket | 30299226 | 1 | |
| Shaft End Cover Gasket | 30295034 | 1 | |
| HP Spacer Gasket | 32144545 | 1 | |
| HP Head Gasket | 32144552 | 1 | |
| F | Valve/Gasket Kit (New Style) (S/N. 567999 And Down) | 32127334 | -- |
| Valve Plate | 30215842 | 1 | |
| LP Finger Valve | 30221170 | 2 | |
| HP Head Gasket | 30786164 | 2 | |
| LP Head Gasket | 32232761 | 1 | |
| HP Spacer Gasket | 30280390 | 1 | |
| LP Spacer Gasket | 30280499 | 1 | |
| Screw Filliester Head 1/4-20 x 1/4 | 32035495 | 2 | |
| Washer Belleville - 1/4 | 32217382 | 2 | |
| Nut-Hex 1/4-20 | 95416335 | 4 | |
| Lock Washer, Spring - 1/4 (95648150) | 32035479 | 4 | |
| Screw, Fillister Head - 1/4-20 x 1/2 | 32035461 | 4 | |
| Shim, Finger Valve | 32139891 | 1 | |
| G | Air Filter Element | 32170979 | 1 |
| Total | 85 |
