DESCRIPTION

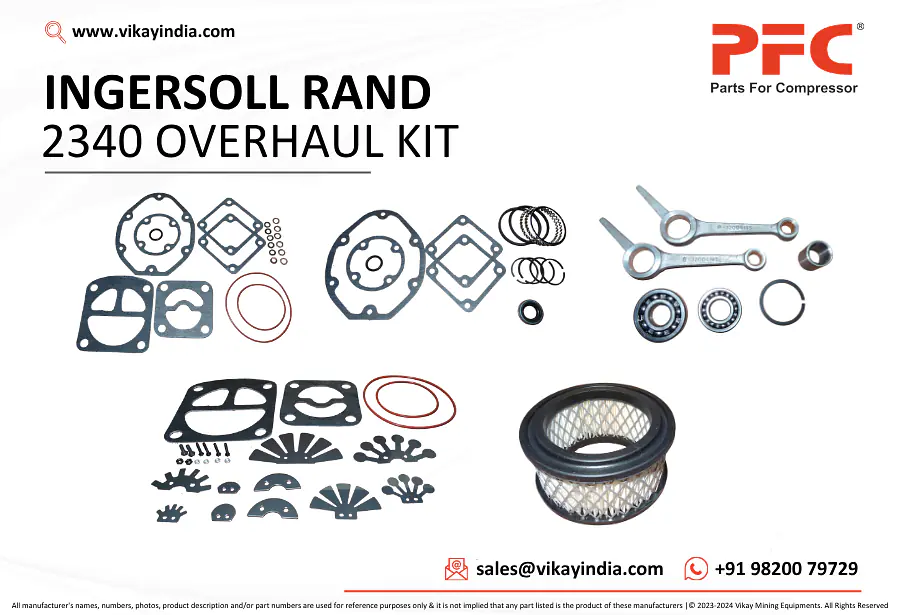

Overhaul Kit 32319451 IR 2340 Replacement

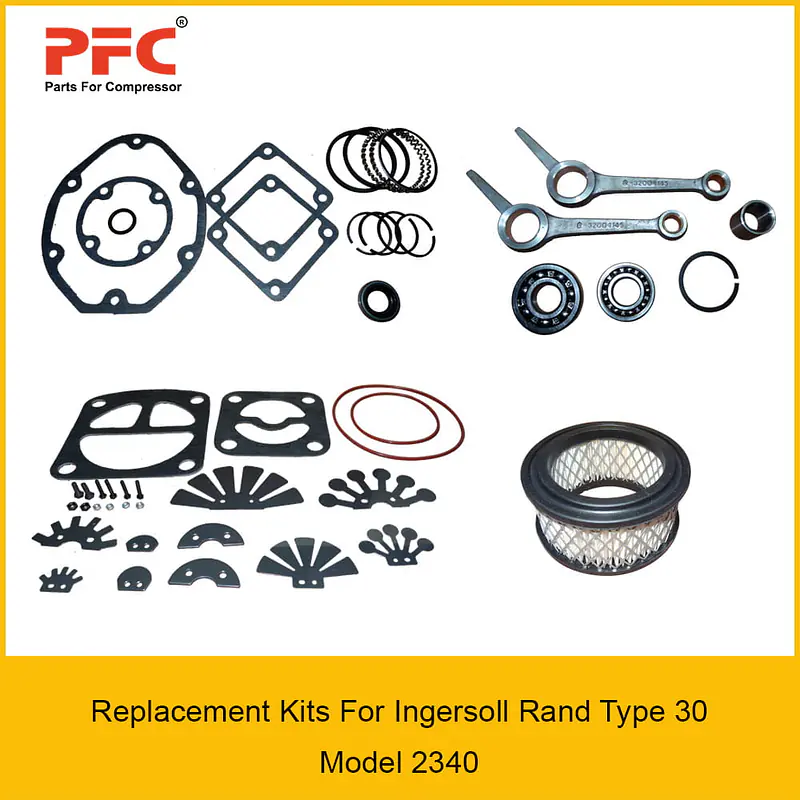

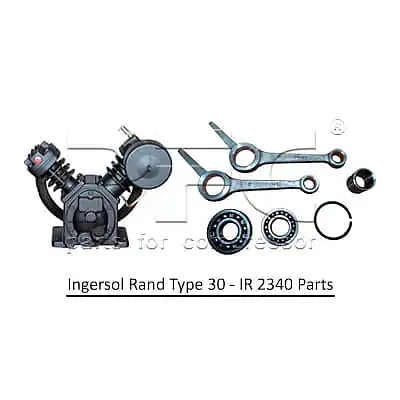

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2340 replacement from India.
Overhaul Kit 32319451 IR 2340 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Ring/Gasket Kit | 32304602 | -- |
| – Frame End Cover Gasket | 32293680 | 1 | |
| – Oil Fill Plug O-Ring | 95022158 | 1 | |
| – Oil Seal | 32204521 | 1 | |
| – Shaft End Cover Gasket | 32293672 | 1 | |
| – Ring Set - 3’’ | 32194276 | 1 | |
| – Ring Set - 1 3/4’’ | 37138237 | 1 | |
| – Cyl/Frame Gasket | 32293623 | 2 | |
| B | Valve/Gasket Kit | 32304610 | -- |
| – Airhead Gasket - HP | 32247926 | 1 | |
| – Airhead Gasket - LP | 32247934 | 1 | |
| – VP-HP Cyl. O-Ring | 32246878 | 1 | |
| – VP-LP Cyl. O-Ring | 32246910 | 1 | |
| – HP Inlet Finger Valve | 32236671 | 1 | |
| – Retainer, Finger Valve | 32297343 | 1 | |
| – Hex Head Cap Screw | 32247512 | 2 | |
| – Nut M4 Hex | 32248171 | 2 | |
| – HP Discharge Valve Retainer | 97511000 | 1 | |
| – HP Discharge Finger Valve | 32241010 | 1 | |
| – HP Discharge Damper Valve | 32294472 | 1 | |
| – LP Inlet Finger Valve | 32241002 | 1 | |
| – Hex Head Cap Screw | 32297327 | 4 | |
| – Hex Nut | 97511059 | 4 | |
| – LP Discharge Finger Valve | 32241036 | 1 | |
| – LP Discharge Finger Retainer | 97511091 | 2 | |
| C | Gasket Set | 32307738 | -- |
| – Frame End Cover Gasket | 32293680 | 1 | |
| – Oil Fill Plug O-Ring | 95022158 | 1 | |
| – Shaft End Cover Gasket | 32293672 | 1 | |
| – Copper Gasket | 95674651 | 6 | |
| – Copper Gasket | 95674677 | 8 | |
| – Cyl/Frame Gasket | 32293623 | 2 | |
| – VP/HP Cyl O-Ring | 32246878 | 1 | |
| – HP Airhead Gasket | 32247926 | 1 | |
| – VP/LP Cyl O-Ring | 32246910 | 1 | |
| – LP Airhead Gasket | 32247934 | 1 | |
| D | Bearing/Conn Rod Kit | 32127359 | -- |
| – Ball Bearing | 95930400 | 1 | |
| – Bearing W/Snap Ring | 95951216 | 1 | |
| – Crankpin Bushing | 30289813 | 1 | |
| – Connecting Rod | 32004145 | 2 | |
| E | Air Filter Element | 32170979 | 1 |
| Total | 62 |
