Overhaul Kit 32319501 IR 15T Replacement

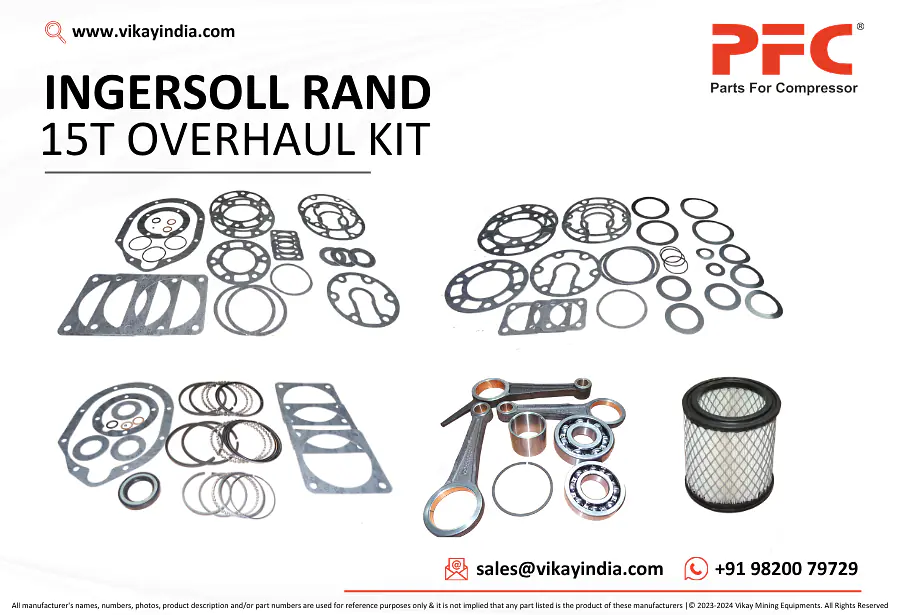

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 15T replacement from India.
Overhaul Kit 32319501 IR 15T Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32127490 | -- |
| – HP Inlet LP Disch. VLV Plate | 30181499 | 3 | |
| – HP Discharge Valve Plate | 30215941 | 1 | |
| – HP Discharge Valve Spring | 30221576 | 1 | |
| – HP Airhead Gasket | 30294508 | 1 | |
| – HP Unloader Body Gasket | 30294680 | 1 | |
| – HP Airhead Center Gasket | 37007754 | 1 | |
| – LP Inlet Valve Plate | 30215891 | 2 | |
| – HP Inlet LP Disch. VLV. Spring | 30221501 | 3 | |
| – LP Inlet Valve Spring | 30221550 | 2 | |
| – LP Airhead Gasket | 30294193 | 2 | |
| – LP Unloader Body Gasket | 30294698 | 2 | |
| – LP Airhead Center Gasket | 37007747 | 2 | |
| – Unloader Cover Gasket | 30294656 | 3 | |
| – Unloader O-Ring | 32136715 | 3 | |
| B | Bearing/Conn Rod Kit | 32127516 | -- |
| – Crankpin Bushing | 32295875 | 1 | |
| – H/P Connecting Rod | 32003642 | 1 | |
| – L/P Connecting Rod | 32003659 | 2 | |
| – Ball Bearing | 95764163 | 1 | |
| – Bearing W/Snap Ring | 95951273 | 1 | |
| C | Ring/Gasket Set | 32218869 | -- |
| – HP Ring Set | 32218182 | 1 | |
| – LP Ring Set | 32198376 | 2 | |
| – Oil Seal (32204596) | 32204562 | 1 | |
| – Oil Filler Plug “O”Ring | 95022158 | 1 | |
| – “O” Ring | 95022695 | 1 | |
| – Cylinder/Flame Gasket(32221384) | 30294235 | 3 | |
| – Frame End Cover Gasket | 30439285 | 1 | |
| – Shaft End Cover Gasket | 30294961 | 1 | |
| – Copper Gasket | 95674750 | 2 | |
| – Gasket, Manifold | 30294870 | 3 | |
| D | Gasket Set | 30418834 | -- |
| – LP Airhead Gasket | 30294193 | 2 | |
| – HP Airhead Gasket | 30294508 | 1 | |
| – LP Airhead Center Gasket | 37007747 | 2 | |
| – HP Airhead Center Gasket | 37007754 | 1 | |
| – Manifold Gasket | 30294870 | 3 | |
| – Cylinder Gasket (32221384) | 30294235 | 3 | |
| – Unloader Cover Gasket | 30294656 | 3 | |
| – LP Unloader Body Gasket | 30294698 | 2 | |
| – HP Unloader Body Gasket | 30294680 | 1 | |
| – Unloader O-Ring | 32136715 | 3 | |
| – Shaft End Cover Gasket | 30294961 | 1 | |
| – Frame End Cover Gasket | 30439285 | 1 | |
| – Oil Fill Plug O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| – Copper Gasket | 95674750 | 2 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 77 |
