DESCRIPTION

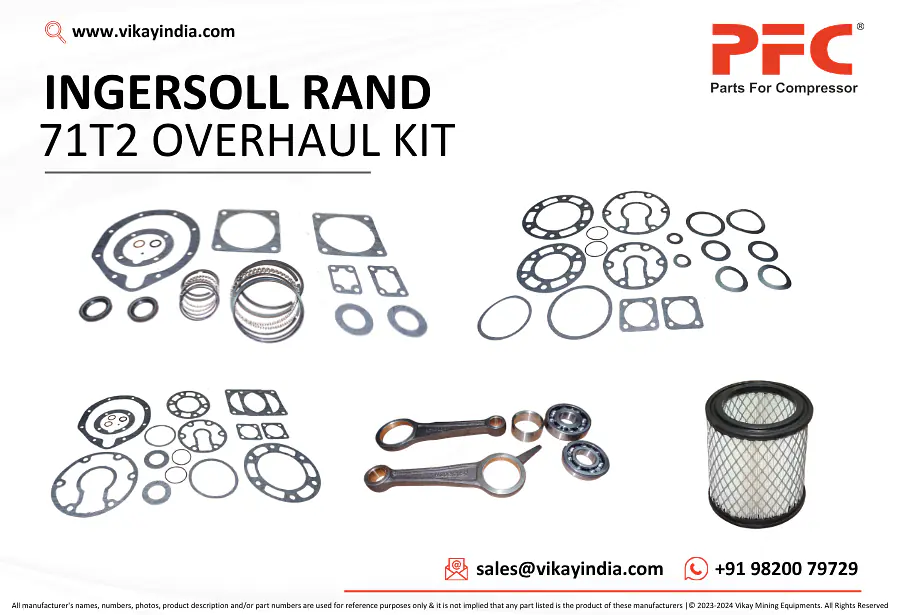

Overhaul Kit 32319642 IR 71T2 Replacement

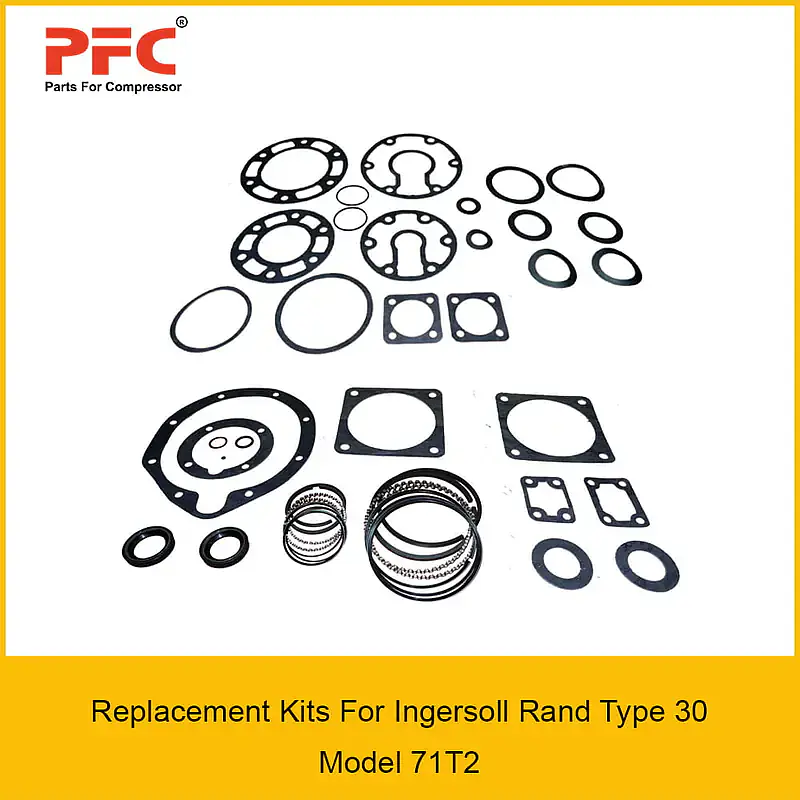

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 71T2 replacement from India.
Overhaul Kit 32319642 IR 71T2 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32127458 | -- |
| – LP Inlet, Hp Disch. Vlv.plate | 30181499 | 2 | |
| – LP Disch. Vlv.plate | 30215941 | 1 | |
| – LP Inlet Valve Plate | 30215891 | 1 | |
| – LP Disch. Lp Inlet Vlv. Spring | 30221501 | 2 | |
| – LP Inlet Valve Spring | 30221550 | 1 | |
| – HP Inlet Valve Spring | 30221576 | 1 | |
| – LP Airhead Centre Gasket | 37047156 | 1 | |
| – HP Airhead Centre Gasket | 37007754 | 1 | |
| – LP Airhead Gasket | 30294326 | 1 | |
| – HP Airhead Gasket | 30294508 | 1 | |
| – Unloader Cover Gasket | 30294656 | 2 | |
| – Unloader Body Gasket | 30294680 | 1 | |
| – Unloader Body Gasket | 30294698 | 1 | |
| – O-Ring | 32136715 | 2 | |
| B | Bearing/Conn Rod Kit | 32127474 | -- |
| – Crankpin Bushing | 32295883 | 1 | |
| – L/P Connecting Rod | 32003659 | 1 | |
| – H/P Connecting Rod | 30217327 | 1 | |
| – Ball Bearing | 95951299 | 1 | |
| – Bearing W/Snap Ring | 95951257 | 1 | |
| C | Ring/Gasket Set | 32194029 | -- |
| – H/P Ring Set | 32194276 | 1 | |
| – L/P Ring Set | 32194144 | 1 | |
| – Oil Seal | 32204588 | 2 | |
| – Cylinder Flange Gasket | 32221384 | 2 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Manifold Gasket | 30294870 | 2 | |
| – L/P Head Gasket(disch.) | 32153801 | 1 | |
| – H/P Head Gasket(inlet) | 32153827 | 1 | |
| – "O" Ring | 95022695 | 1 | |
| – Oil Filler Plug "o" Ring | 95022158 | 1 | |
| – Copper Gasket | 95674750 | 1 | |
| D | Gasket Set | 30420541 | -- |
| – Oil Filler Plug "O" Ring | 95022158 | 1 | |
| – "O" Ring | 95022695 | 1 | |
| – "O" Ring | 32136715 | 2 | |
| – HP Valve Plate Gasket | 30294508 | 1 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Cylinder Gasket | 32221384 | 2 | |
| – L/P Airhead Center Gasket | 37047156 | 1 | |
| – H/P Airhead Center Gasket | 37007754 | 1 | |
| – Unloder Cover Gasket | 30294656 | 2 | |
| – Unloder Body Gasket | 30294680 | 1 | |
| – Unloder Body Gasket | 30294698 | 1 | |
| – Manifold Gasket | 30294870 | 2 | |
| – Gasket, Copper | 95674750 | 2 | |
| – LP. Air Head Gasket | 30294326 | 1 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 59 |
