Overhaul Kit 32319642 IR 71T2 Replacement
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Overhaul Kit 32319642 IR 71T2 Replacement

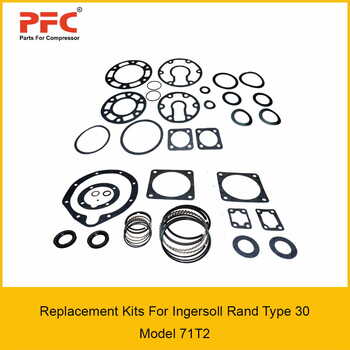

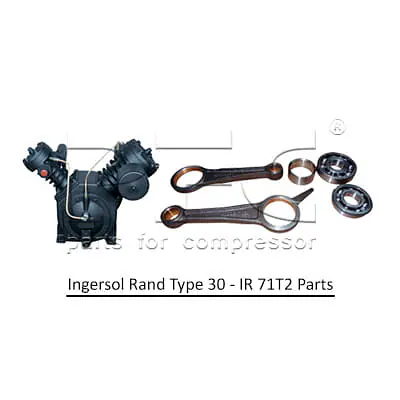

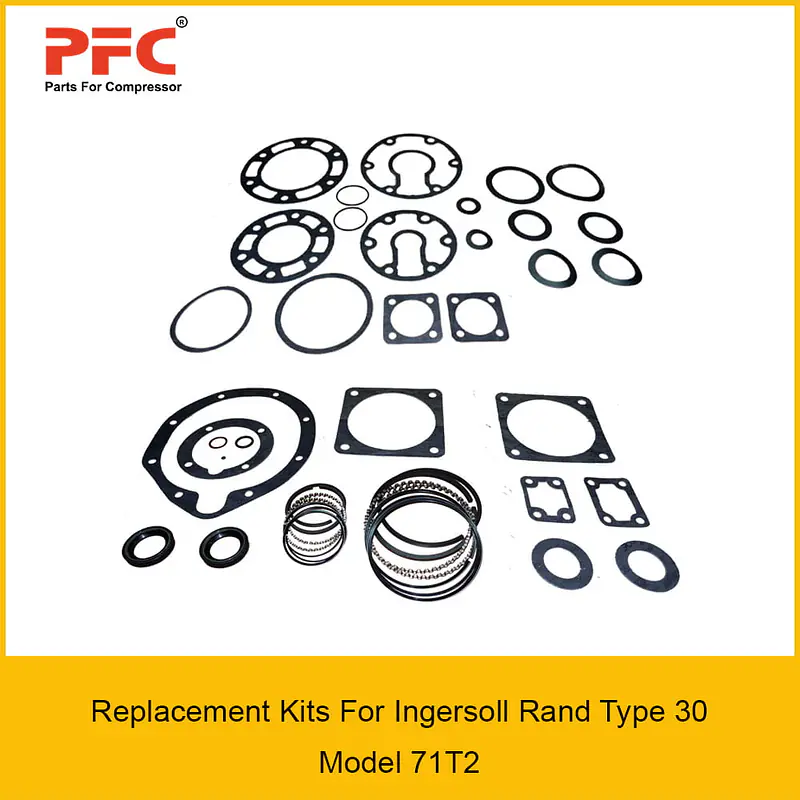

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 71T2 replacement from India.
Product
Overhaul Kit 32319642 IR 71T2 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32127458 | -- |
| LP Inlet, Hp Disch. Vlv.plate | 30181499 | 2 | |
| LP Disch. Vlv.plate | 30215941 | 1 | |
| LP Inlet Valve Plate | 30215891 | 1 | |
| LP Disch. Lp Inlet Vlv. Spring | 30221501 | 2 | |
| LP Inlet Valve Spring | 30221550 | 1 | |
| HP Inlet Valve Spring | 30221576 | 1 | |
| LP Airhead Centre Gasket | 37047156 | 1 | |
| HP Airhead Centre Gasket | 37007754 | 1 | |
| LP Airhead Gasket | 30294326 | 1 | |
| HP Airhead Gasket | 30294508 | 1 | |
| Unloader Cover Gasket | 30294656 | 2 | |
| Unloader Body Gasket | 30294680 | 1 | |
| Unloader Body Gasket | 30294698 | 1 | |
| O-Ring | 32136715 | 2 | |
| B | Bearing/Conn Rod Kit | 32127474 | -- |
| Crankpin Bushing | 32295883 | 1 | |
| L/P Connecting Rod | 32003659 | 1 | |
| H/P Connecting Rod | 30217327 | 1 | |
| Ball Bearing | 95951299 | 1 | |
| Bearing W/Snap Ring | 95951257 | 1 | |
| C | Ring/Gasket Set | 32194029 | -- |
| H/P Ring Set | 32194276 | 1 | |
| L/P Ring Set | 32194144 | 1 | |
| Oil Seal | 32204588 | 2 | |
| Cylinder Flange Gasket | 32221384 | 2 | |
| Frame End Cover Gasket | 30439277 | 1 | |
| Shaft End Cover Gasket | 30295166 | 1 | |
| Manifold Gasket | 30294870 | 2 | |
| L/P Head Gasket(disch.) | 32153801 | 1 | |
| H/P Head Gasket(inlet) | 32153827 | 1 | |
| "O" Ring | 95022695 | 1 | |
| Oil Filler Plug "o" Ring | 95022158 | 1 | |
| Copper Gasket | 95674750 | 1 | |
| D | Gasket Set | 30420541 | -- |
| Oil Filler Plug "O" Ring | 95022158 | 1 | |
| "O" Ring | 95022695 | 1 | |
| "O" Ring | 32136715 | 2 | |
| HP Valve Plate Gasket | 30294508 | 1 | |
| Frame End Cover Gasket | 30439277 | 1 | |
| Shaft End Cover Gasket | 30295166 | 1 | |
| Cylinder Gasket | 32221384 | 2 | |
| L/P Airhead Center Gasket | 37047156 | 1 | |
| H/P Airhead Center Gasket | 37007754 | 1 | |
| Unloder Cover Gasket | 30294656 | 2 | |
| Unloder Body Gasket | 30294680 | 1 | |
| Unloder Body Gasket | 30294698 | 1 | |
| Manifold Gasket | 30294870 | 2 | |
| Gasket, Copper | 95674750 | 2 | |
| LP. Air Head Gasket | 30294326 | 1 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 59 |
