DESCRIPTION

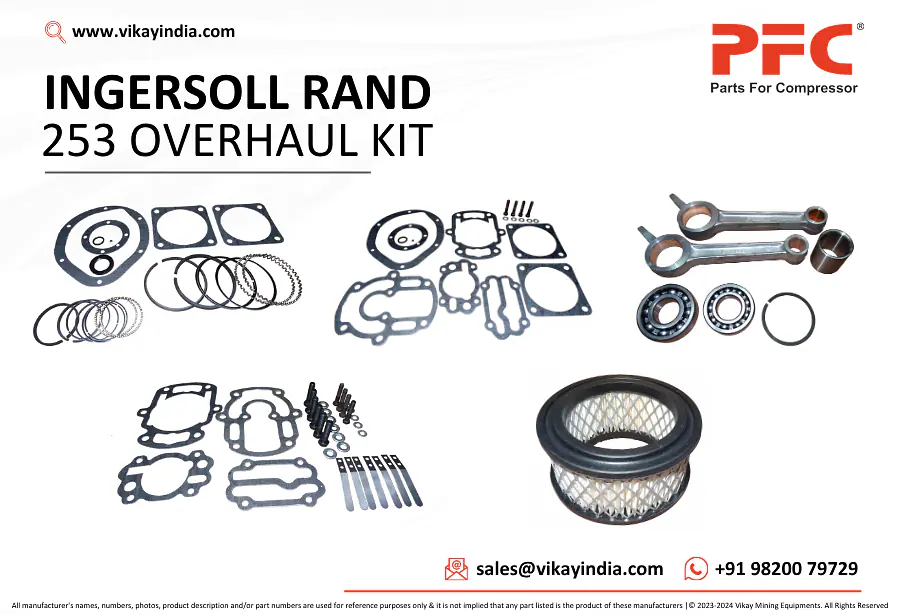

Overhaul Kit 32319659 IR 253 Replacement

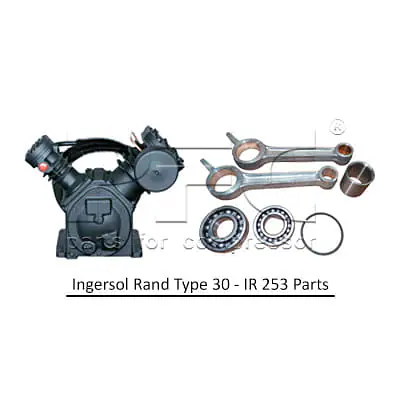

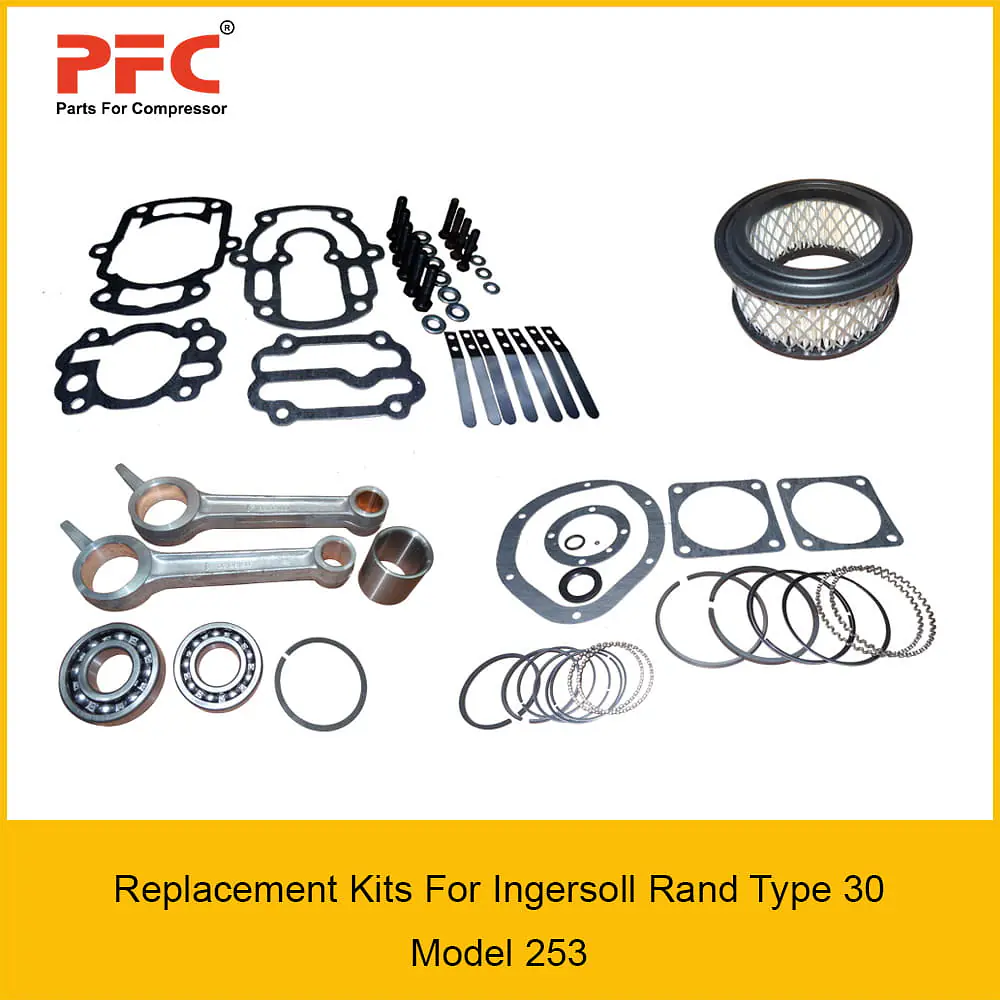

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 253 replacement from India.
Overhaul Kit 32319659 IR 253 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32127433 | -- |
| – Crankpin Bushing | 30210165 | 1 | |
| – Connecting Rod | 32198160 | 2 | |
| – Ball Bearing | 95753604 | 1 | |
| – Ball Bearing W/Snap Ring | 95951224 | 1 | |
| B | Ring/Gasket Kit | 32198327 | -- |
| – H/P Ring Set | 32194276 | 1 | |
| – L/P Ring Set | 32198376 | 1 | |
| – Oil Seal (32204547) | 32204570 | 1 | |
| – Oil Fill Plug O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| – Flange Gasket | 30294201 | 2 | |
| – Frame End Cover Gasket | 30439327 | 1 | |
| – Shaft End Cover Gasket | 30280531 | 1 | |
| C | Valve/Gasket Kit | 32249278 | -- |
| – Finger Valve | 30221170 | 7 | |
| – H/P Head Gasket | 32246324 | 1 | |
| – L/P Head Gsket | 32267536 | 1 | |
| – H/P Spacer Gasket | 32246340 | 1 | |
| – L/P Spacer Gasket | 32267528 | 1 | |
| – Screw | 32246563 | 4 | |
| – Flat Washer | 32246555 | 5 | |
| Upgrade Kit | 32281271 | -- | |
| – Flat Washer | 32279408 | 7 | |
| – Hex Cap Screw | 95104196 | 6 | |
| D | Gasket Set | 32249286 | -- |
| – Oil Filler Plug O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| – L/P Head Gasket | 32267536 | 1 | |
| – LP Head Spacer Gasket | 32267528 | 1 | |
| – Cylinder Flange Gasket | 30294201 | 2 | |
| – Frame End Cover Gasket | 30439327 | 1 | |
| – Shaft End Cover Gasket | 30280531 | 1 | |
| – Flat Washer | 32246555 | 5 | |
| – Hex Cap Screw | 32246563 | 4 | |
| – Head Gasket | 32246324 | 1 | |
| – Spacer Gasket | 32246340 | 1 | |
| E | Air Filter Element | 32170979 | 1 |
| Total | 67 |
