DESCRIPTION
Overhaul Kit 32319667 IR 2540 Replacement

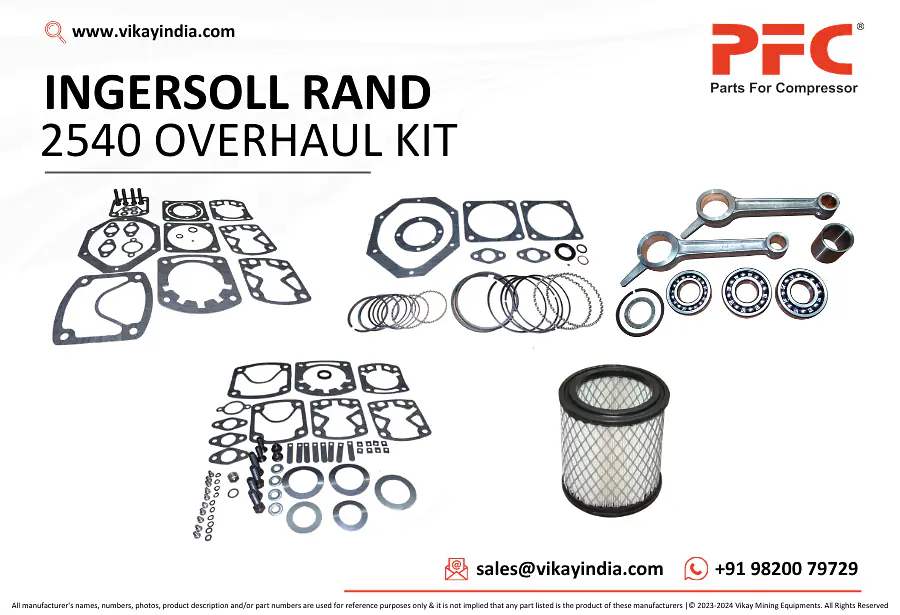

Ovewrhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 2540 replacement from India.
Overhaul Kit 32319667 IR 2540 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32204307 | -- |
| – Crankpin Bushing | 30210165 | 1 | |
| – Connecting Rod | 32198160 | 2 | |
| – Ball Bearing | 95753604 | 2 | |
| – Ball Bearing W/Snap Ring | 95951224 | 1 | |
| – Inner Bearing Spacer | 32203218 | 1 | |
| B | Ring/Gasket Kit | 32198400 | -- |
| – Gasket, Cover | 30280531 | 1 | |
| – Oil Seal | 32204570 | 1 | |
| – O-Ring | 95022158 | 1 | |
| – Gasket, Cylinder Flange | 30294201 | 2 | |
| – Manifold Gasket | 32188377 | 2 | |
| – Frame End Cover Gasket | 32183956 | 1 | |
| – Copper Gasket | 95674750 | 1 | |
| – Ring Set | 32198335 | 1 | |
| – Ring Set | 32198376 | 1 | |
| – O-Ring | 95022695 | 1 | |
| C | Gasket Set | 32229890 | -- |
| – L/P Valve Plate Gasket | 32233850 | 1 | |
| – L/P Air Head Gasket | 32267494 | 1 | |
| – Mainfold Gasket | 32188377 | 1 | |
| – H/P Air Head Gasket | 32252777 | 1 | |
| – H/P Valve Plate Gasket | 32252785 | 1 | |
| – H/P Spacer Plate Gasket | 32252793 | 2 | |
| – Flat washer | 32279408 | 4 | |
| – Hex Cap Screw | 95104196 | 4 | |
| – Cover Gasket | 30280531 | 1 | |
| – Cylinder Flange Gasket | 30294201 | 2 | |
| – Unloader Cover Gasket | 32182826 | 1 | |
| – Frame End Cover Gasket | 32183956 | 1 | |
| – Manifold Gasket | 32188377 | 2 | |
| – Unloader Piston O-Ring | 32188385 | 1 | |
| – O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| D | Valve/Gasket Kit | 32229874 | -- |
| – Finger Valve | 30220115 | 8 | |
| – Disch Valve Plate | 30215917 | 1 | |
| – Disch Valve Plate | 30215941 | 1 | |
| – Disch Valve Spring | 30221394 | 2 | |
| – Disch Valve Spring | 30221576 | 1 | |
| – Unloader Cover Gasket | 32182826 | 1 | |
| – Manifold Gasket | 32188377 | 2 | |
| – LP Air Head Gasket | 32267494 | 1 | |
| – LP Valve Plate Gasket | 32223850 | 1 | |
| – Manifold Gasket | 32188377 | 1 | |
| – H/P Airhead Gasket | 32252777 | 1 | |
| – H/P Valve Plate Gasket | 32252785 | 1 | |
| – H/P Spacer Plate Gasket | 32252793 | 2 | |
| – Flat washer | 32279108 | 4 | |
| – Hex Cap Screw | 95104196 | 4 | |
| – Unloader Piston Seal | 32254740 | 1 | |
| – Unloader Piston O-Ring | 32188385 | 1 | |
| – Valve Retailer | 32228306 | 8 | |
| – Valve Bolt | 32223927 | 2 | |
| – Fillister Head Screw | 32035511 | 10 | |
| – Washer | 32217382 | 8 | |
| – Lock Washer | 95648150 | 2 | |
| – Lock Nut | 32229684 | 1 | |
| – Nut | 97166946 | 2 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 111 |
