DESCRIPTION

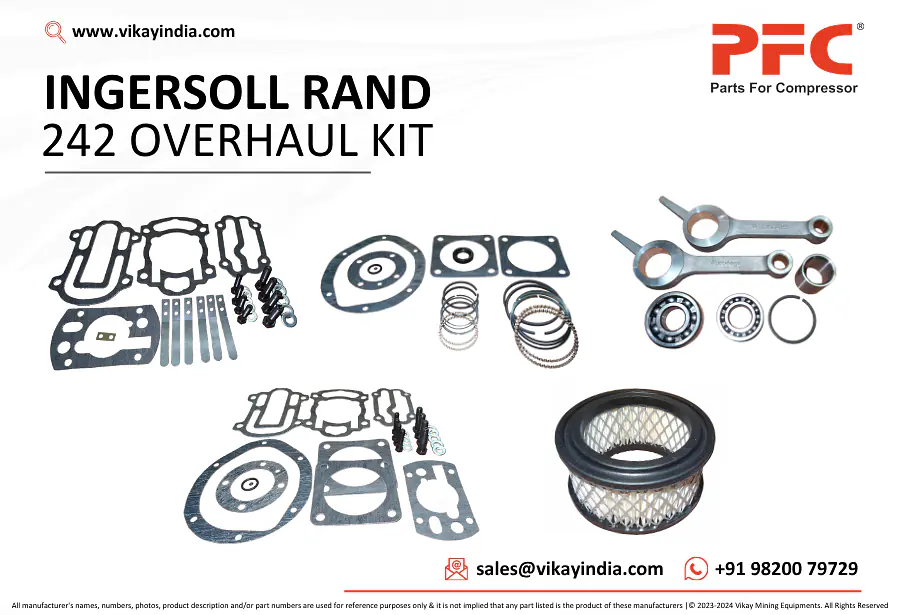

Overhaul Kit 32319675 IR 242 Replacement

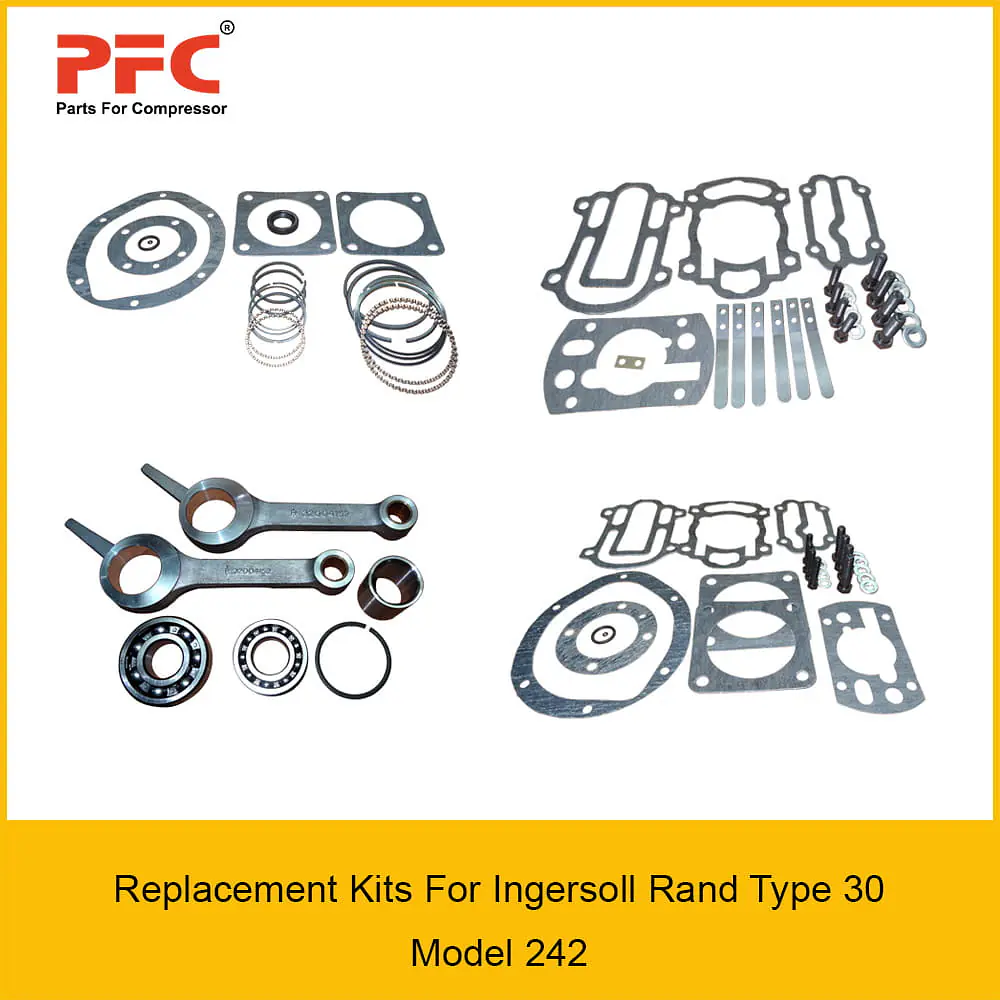

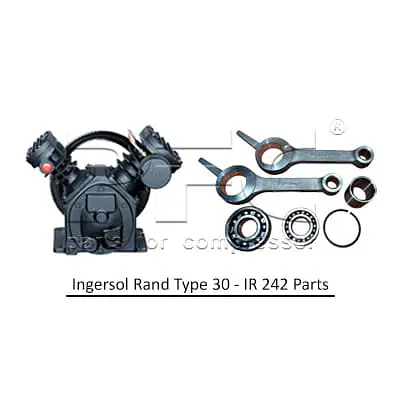

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 242 replacement from India.
Overhaul Kit 32319675 IR 242 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32127391 | -- |
| – Crankpin Bushing | 30210199 | 1 | |
| – Connecting Rod | 32004152 | 2 | |
| – Ball Bearing (32248122) | 95213914 | 1 | |
| – Ball Bearing W/Snap Ring | 95134185 | 1 | |
| B | Ring/Gasket Kit | 32198319 | -- |
| – HP Ring Set | 32198368 | 1 | |
| – LP Ring Set | 32194151 | 1 | |
| – Oil Seal | 32204539 | 1 | |
| – O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| – Flange Gasket | 30289870 | 2 | |
| – Frame End Cover Gasket | 30439319 | 1 | |
| – Shaft End Cover Gasket | 30294995 | 1 | |
| C | Valve/Gasket Kit | 32248294 | -- |
| – Finger Valve | 30221170 | 6 | |
| – H/P Head Gasket | 32246324 | 1 | |
| – L/P Head Gsket | 32267551 | 1 | |
| – H/P Spacer Gasket | 32246332 | 1 | |
| – L/P Spacer Gasket | 32267544 | 1 | |
| – Spring Shim | 32139891 | 1 | |
| – Screw - 3/8’’ x 1 3/4’’ | 32246548 | 4 | |
| – Flat Washer - 3/8’’ | 32246555 | 5 | |
| – Flat Washer - 1/2’’ | 32279408 | 5 | |
| – Hex Cap Screw | 95104196 | 4 | |
| D | Gasket Set | 32249302 | -- |
| – O-Ring | 95022158 | 1 | |
| – O-Ring | 95022695 | 1 | |
| – LP Head Gasket | 32267551 | 1 | |
| – LP Head Spacer Gasket | 32267544 | 1 | |
| – Cylinder Flange Gasket | 30289870 | 2 | |
| – Frame End Cover Gasket | 30439319 | 1 | |
| – Shaft End Cover Gasket | 30294995 | 1 | |
| – Flat Washer | 32246555 | 5 | |
| – Hex Cap Screw | 32246548 | 4 | |
| – Head Gasket | 32246324 | 1 | |
| – Spacer Gasket | 32246332 | 1 | |
| – Flat Washer | 32279408 | 5 | |
| – Hex Cap Screw | 95104196 | 4 | |
| E | Air Filter Element | 32170979 | 1 |
| Total | 72 |
