DESCRIPTION
Overhaul Kit IR 25T2 Replacement

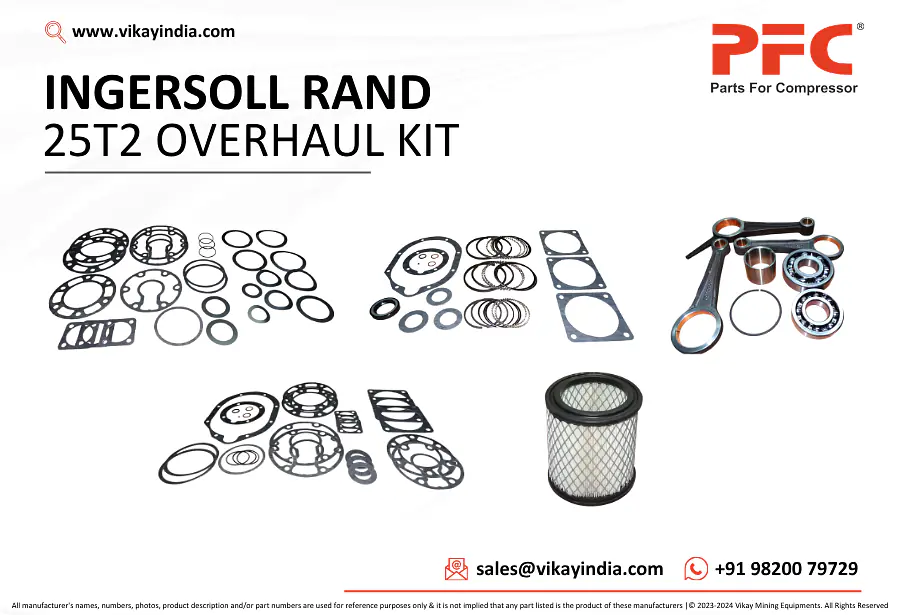

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 25T2 replacement from India.
Overhaul Kit - 25T2
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Valve/Gasket Kit | 32127532 | -- |
| – Discharge Valve Plate | 30181499 | 2 | |
| – Discharge Valve Plate | 30215917 | 1 | |
| – Discharge Valve Spring | 30221394 | 1 | |
| – Discharge Valve Spring | 30221501 | 2 | |
| – Inlet Valve Plate | 30215859 | 1 | |
| – Inlet Valve Plate | 30215891 | 2 | |
| – Inlet Valve Spring | 30221527 | 1 | |
| – Inlet Valve Spring | 30221550 | 2 | |
| – L/P Airhead Gasket | 30294326 | 2 | |
| – H/P Airhead Gasket | 30294300 | 1 | |
| – L/P Airhead Centre Gasket | 37047156 | 2 | |
| – H/P Airhead Centre Gasket | 37130432 | 1 | |
| – O-ring | 32136715 | 3 | |
| – LP Unloader Body Gasket | 30294698 | 2 | |
| – HP Unloader Body Gasket | 30294631 | 1 | |
| – Unloader Cover Gasket | 30294656 | 3 | |
| B | Bearing/Conn Rod Kit | 32127516 | -- |
| – Crankpin Bushing | 37002382 | 1 | |
| – L/P Connecting Rod | 32003659 | 2 | |
| – H/P Connecting Rod | 32003642 | 1 | |
| – Ball Bearing | 95764163 | 1 | |
| – Bearing W/Snap Ring | 95951273 | 1 | |
| C | Air Filter Element | 32012957 | 1 |
| D | Ring/Gasket Set | 32127540 | -- |
| – H/P Ring Set | 32194151 | 1 | |
| – L/P Ring Set | 32194144 | 2 | |
| – Oil Seal | 32204596 | 1 | |
| – Cylinder Flange Gasket (32221384) | 30294235 | 3 | |
| – Frame End Cover Gasket | 30439285 | 1 | |
| – Shaft End Cover Gasket | 30294961 | 1 | |
| – Manifold Gasket | 30294870 | 3 | |
| – O-Ring | 95022695 | 1 | |
| – Oil Filler Plug "o" Ring | 95022158 | 1 | |
| – Copper Gasket | 95674750 | 2 | |
| E | Gasket Set | 37190782 | -- |
| – "O" Ring | 95022158 | 1 | |
| – "O" Ring | 32136715 | 3 | |
| – "O" Ring | 95022695 | 1 | |
| – Cylinder Gasket (32221384) | 30294235 | 3 | |
| – L/P Airhead Gasket | 30294326 | 2 | |
| – L/P Airhead Center Gasket | 37047156 | 2 | |
| – H/P Airhead Gasket | 30294300 | 1 | |
| – H/P Airhead Center Gasket | 37130432 | 1 | |
| – Manifold Gasket | 30294870 | 3 | |
| – L/P Unloader Body Gasket | 30294698 | 2 | |
| – H/p Unloader Body Gasket | 30294631 | 1 | |
| – Frame End Cover Gasket | 30439285 | 1 | |
| – Shaft End Cover Gasket | 30294961 | 1 | |
| – Unloader Cover Gasket | 30294656 | 3 | |
| – Copper Gasket | 95674750 | 2 | |
| Total | 77 |
