DESCRIPTION
Overhaul Kit VK-OK7T2 IR 7T2 Replacement

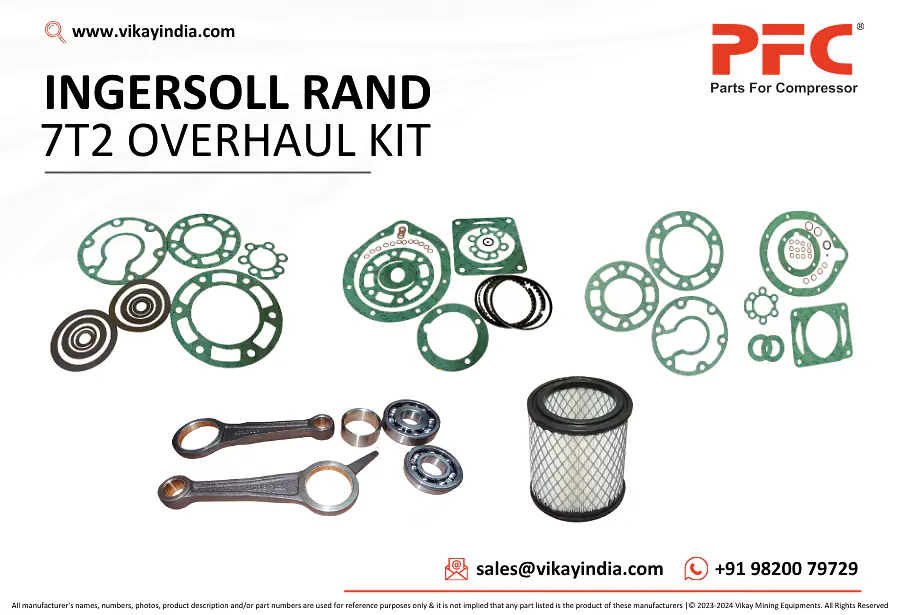

Overhaul Kit for Ingersoll Rand Type 30 Air Compressor Model 7T2 replacement from India.
Overhaul Kit VK-OK7T2 - IR 7T2 Replacement
Contain of Kit
| No. | Description | Part No. | QTY |
| A | Bearing/Conn Rod Kit | 32127474 | -- |
| – Crankpin Bushing | 32295883 | 1 | |
| – L/P Connecting Rod | 32003659 | 1 | |
| – H/P Connecting Rod | 30217327 | 1 | |
| – Ball Bearing | 95951299 | 1 | |
| – Ball Bearing W/Snap Ring | 95951257 | 1 | |
| B | Ring/Gasket Kit | 32133944 | -- |
| – Cylinder Gasket (32221384) | 30294235 | 2 | |
| – HP Airhead Gasket | 30294508 | 1 | |
| – Manifold Gasket | 30294870 | 2 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – Oil Filler Plug O-Ring | 95022158 | 1 | |
| – O-Ring | 95210225 | 1 | |
| – Ring Set | 32015174 | 1 | |
| – L/P Ring Set | 32198376 | 1 | |
| – Oil Seal | 32204588 | 1 | |
| – Washer, Copper - Pilot Valve Shim | 30346597 | 2 | |
| – Copper Gasket | 95674677 | 12 | |
| – Copper Washer Gasket 1/2’’ | 95674701 | 4 | |
| C | Valve/Gasket Kit | 32133936 | -- |
| – LP Airhead Gasket | 30294193 | 1 | |
| – Gasket, Airhead | 30294284 | 1 | |
| – LP Airhead Center Gasket | 37007747 | 1 | |
| – Plate, Valve - 1st Stage Disch & 2nd Stg Inlet | 30181499 | 1 | |
| – Plate, Valve - 3rd Stage Inlet | 30215834 | 1 | |
| – Plate Valve - 1st Stage Inlet | 30215891 | 1 | |
| – Plate, Valve - 3rd Stage Discharge | 30215925 | 1 | |
| – Spring, Valve - 3rd Stage Inlet | 30221493 | 1 | |
| – Spring, Valve - 1st Stage Disch & 2nd Stg Inlet | 30221501 | 1 | |
| – Spring Valve - 1st Stage | 30221550 | 1 | |
| – Spring, Valve - 3rd Stage Discharge | 30221584 | 1 | |
| – Washer | 37092897 | 4 | |
| D | Gasket Set | 30420566 | -- |
| – LP Airhead Gasket | 30294193 | 1 | |
| – Cylinder Gasket (32221384) | 30294235 | 2 | |
| – Gasket, Airhead | 30294284 | 1 | |
| – HP Airhead Gasket | 30294508 | 1 | |
| – Manifold Gasket | 30294870 | 2 | |
| – Shaft End Cover Gasket | 30295166 | 1 | |
| – Frame End Cover Gasket | 30439277 | 1 | |
| – LP Airhead Center Gasket | 37007747 | 1 | |
| – Oil Filler Plug O-Ring | 95022158 | 1 | |
| – O-Ring | 95210225 | 1 | |
| – Washer, Copper - Pilot Valve Shim | 30346597 | 2 | |
| – Copper Gasket | 95674677 | 12 | |
| – Copper Washer Gasket 1/2’’ | 95674701 | 4 | |
| E | Air Filter Element | 32012957 | 1 |
| Total | 81 |
