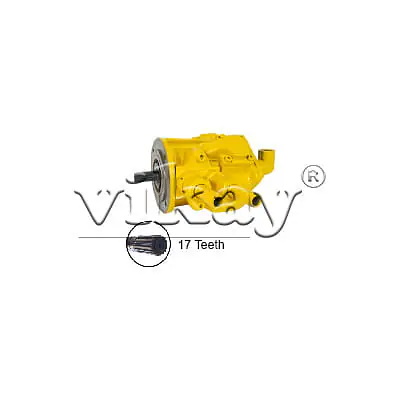

Piston Motor (17 Teeth) 8973161006 Replacement
Regular price
₹0.00
Piston Motor (17 Teeth) 8973161006 Replacement
Regular price
₹0.00
DESCRIPTION
Piston Motor (17 Teeth) 8973161006 Replacement
Vikay is a global supplier of new aftermarket replacement parts - Piston Motor (17 Teeth) 8973161006 for Atlas Copco Wagon Drill Bvb-25 from India
Product
- Page 1

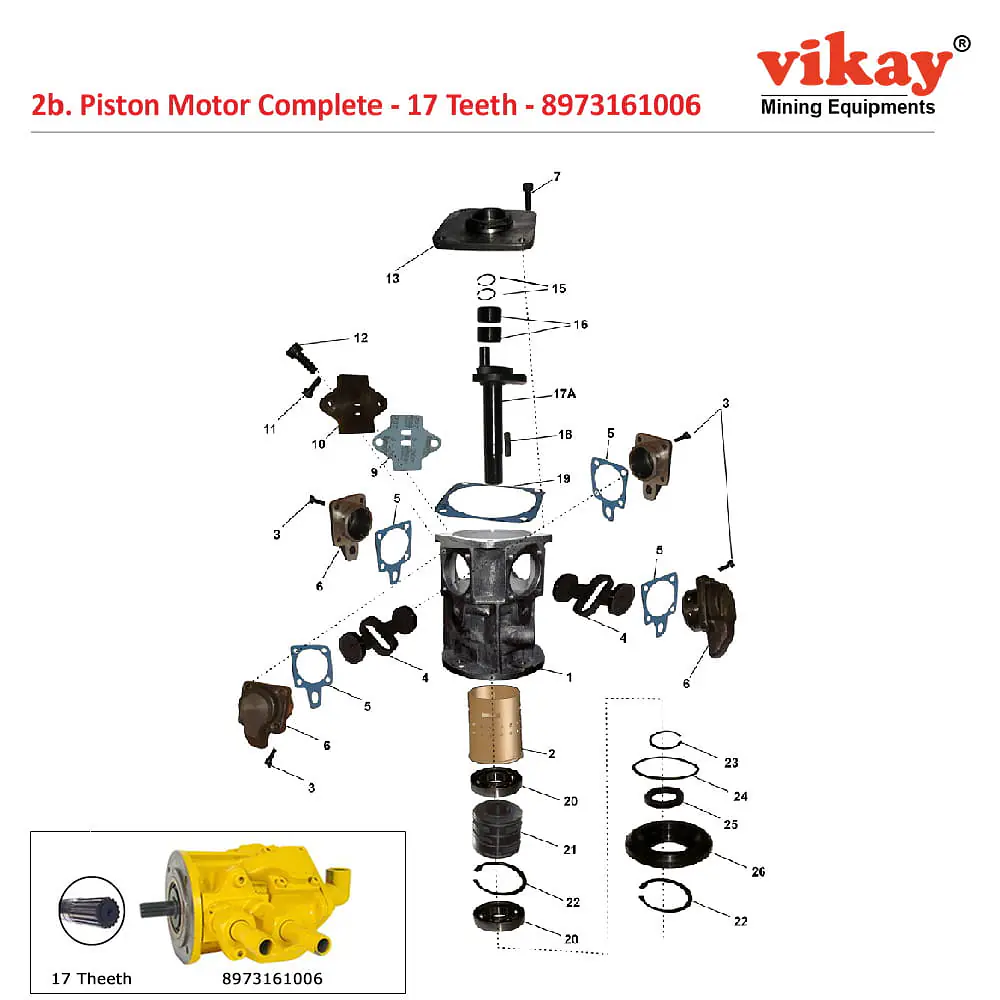

Piston Motor (17 Teeth) 8973161006
| No. | Description | Modified | Ref. Part No. | ||
| - | Piston Motor Complete - 17 Teeth (4450054188) | 8973161006 | |||
| 1 | - Crankcase Feed Rotation & Traction | * | |||
| 2 | - Main Valve Liner | 4450071200 | |||
| 3 | - Screw (Modified) | 0211132400 | * | M100003 | |
| 4 | - Double Piston | 4350222200 | |||
| 5 | - Gasket | 4450054400 | |||
| 6 | - Cylinder | 4450054300 | |||
| 7 | - Screw (Modified) | 0211132400 | * | M100003 | |
| 9 | - Gasket | 4450054600 | |||
| 10 | - Distributor Plate | 4450075200 | |||
| 11 | - Spring Washer | 0333213000 | |||
| 12 | - Screw (Modified) | 0211136100 | * | M100012 | |
| 13 | - Cover | 4350222300 | |||
| 15 | - Circlip 16 mm | M100015 | |||
| 16 | - Needle Bearing (Modified) | 5053010800 | * | M100016 | |
| 17A | - Crankshaft Feed Motor - 17 Teeth (Modified) | 9718502600 | * | M100017A | |
| 18 | - Key | 0337259200 | |||
| 19 | - Gasket | 4450055000 | |||
| 20 | - Ball Bearing | 0502321800 | |||
| 21 | - Main Valve | 4450054700 | |||
| 22 | - Circlip (Int.) | 0333215700 | |||
| 23 | - Circlip (Ext.) | 0335113200 | |||
| 24 | - O-Ring | 0663613700 | |||
| 25 | - Seal Ring | 0666226100 | |||
| 26 | - Seal Ring Retainer | 4450055100 |
