Pistons, Rings & Cylinders For Ingersoll Rand Type 30 - Model 15T
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Pistons, Rings & Cylinders For Ingersoll Rand Type 30 - Model 15T from India.

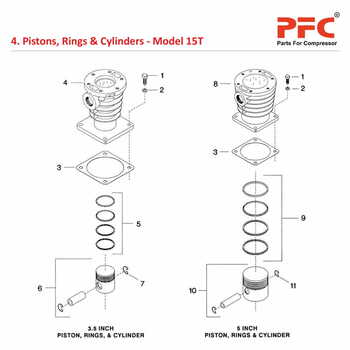

Pistons, Rings And Cylinders
| Sr.No | Ref. Part Number | Description | Qty |
| 4-1 | 95053567 | Capscrew - Hex 1/2-13 X 1 - 1/4 | 12 |
| 4-2 | 95674701 | Gasket - copper washer 1/2 | 12 |
| 4-3 | 30294235 | Gasket, flange | 3 |
| 4-4 | 37128501 | Cylinder, air - 3.5 inch high pressure | 1 |
| 4-5 | 32218182 | Set ring - 3.5 inch high pressure | 1 |
| 4-6 | 30215198 | Piston air - complete - 3.5 inch pressure | 1 |
| 4-7 | 30288450 | – Ring lock | 2 |
| 4-8 | 37128782 | Cylinder, air - 5 inch low pressure | 2 |
| 4-9 | 32198376 | Set ring - 5 inch low pressure | 2 |
| 4-10 | 32054504 | Piston air - complete - 5 low pressure | 2 |
| 4-11 | 30288450 | – Ring lock | 2 |
