Plate Port Outer End IR 9 1/2 x 5 ESV LUB Parts
Regular price
₹0.00
Plate Port Outer End IR 9 1/2 x 5 ESV LUB Parts
Regular price
₹0.00
DESCRIPTION
Assembly Plate Port Outer End For Ingersoll Rand Model - 9 1/2 x 5 LUB
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for Assembly Plate Port Outer End For Ingersoll Rand Model - 9 1/2 x 5 LUB from India

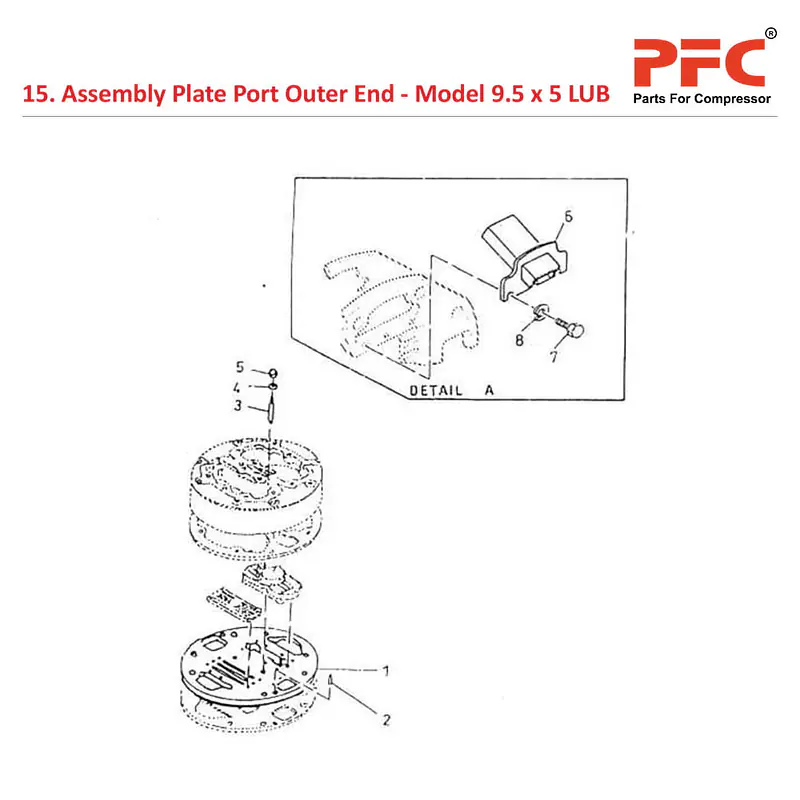

ASSEMBLY PLATE PORT OUTER END
| Sr. No | Description | Ref Part Nos | Qty |
| – | ASSEMBLY PLATE PORT OUTER END | 70223268 | – |
| 1 | – PLATE PORT OUTER END | 31204076 | 1 |
| 2 | – PIN ROLL 3/8" X 1-3/4" | 95098703 | 2 |
| 3 | – STUD 1/2" X 5-1/2" | 95211892 | 2 |
| 4 | – GASKET COPPER WASHER 1/2" | 30756068 | 2 |
| 5 | – NUT CAP 1/2" | 95108239 | 2 |
| 6 | – CHOKE TUBE | 30699128 | 1 |
| 7 | – SCREW CAP HEX HEAD 3/8" X 3/4" | 95103743IM | 2 |
| 8 | – WASHER SPRING 3/8 | 95081857 | 2 |
