Pneumatic Slim Drill VKPSD

Pneumatic Slim Drill for Wire sawing VK-PSD

Vikay is a Global Supplier of Pneumatic Slim Drill from India

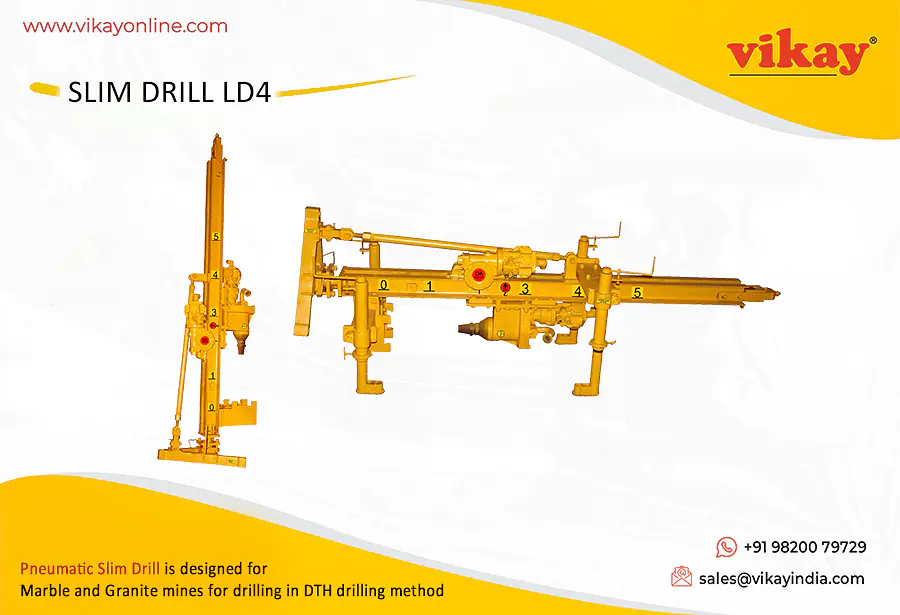

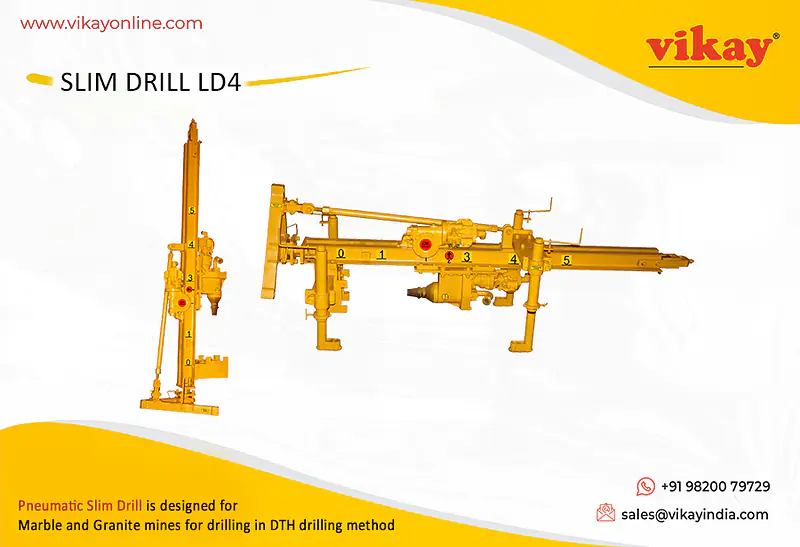

Pneumatic Slim Drill is designed for Marble and Granite mines for drilling in Down-The-Hole Hammer drilling method, ideally for drilling lead holes matching for Diamond Wire Cutting.

This machine has the ability to drill hole diameter from 85 mm - 130 mm, upto 40 Mtr length, in Vertical and Horizontal positions, and can be easily dismantled into Sub Assemblies, ensuring easy portability and repositioning, due to its light weight.

Salient Features

• • Rotation Unit - Powerful heavy duty Rotation Unit Type BBR-4, fitted with 4 Cylinder Piston Type Air  Motor with Planetory gear and reduction gear box.
  • Feed Unit - 4 Cylinder Piston Motor with Worm reduction Gear Box.
  • Controller - Gang Type Remote Control Panel with Pressure regulator controller and 3 Ltr capacity Oil Lubricator.
  • A ball joint system is provided at the bottom of the Mast, to facilitate Precision alignment for matching holes.
  • Cover Leveling Jack with re-usable Rock Bolt System and Heavy Duty Double C Class Channels, to maintain perfect rigidity during drilling.

Technical Details

DTH Version (Down-The-Hole hammer)

 Feed and boom
