DESCRIPTION

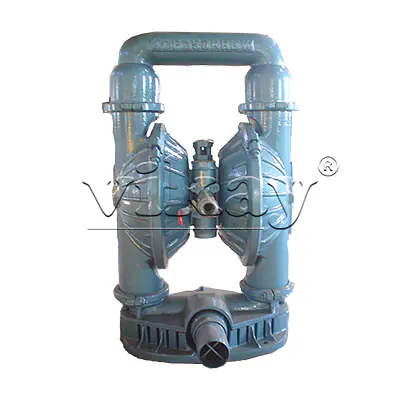

Pneumatic Slurry Pump KPD 170
Vikay is a worldwide distributor of Pneumatic Slurry Pump KPD 170, a perfect alternative to CP 0077 sludge pump - T024005 - 8900004033 suitable for pumping seawater and certain corrosive chemicals from India.
Vikay Pneumatic Slurry Pump for Underground Mines.
Double Diaphragm Slurry pump designed for Shaft Sinking, Drives, decline, Ramps, Tunnels & Dams with the Head delivery of 40 – 70 Mtrs.
Technical Details
| Model | KPD-170 |
| Weight | 25 Kgs |
| Dimensions | 17" x 12" x 24" |
| Discharge | 150 - 250 lpm |
| Head Capacity | 35 - 40 Meter Vertical |
| Air Consumption | 70 - 80 cfm |
| Air Pressure | 5 - 6 kg/cm² 70/90 psig |
| Suction Size | 50 mm 2" |
| Delivery Size | 50 mm 2" |
| Suction Lift | 10 feet |
| Stroke Capacity | 60 - 80 Per Minute |
| Max. Size of Solid | 8 mm 5/16" |
| Lubricant | Servoneum 100 |
| Self Priming | Yes |
| Submersible | Yes |
| Material of Construction | Alluminium Alloy Casting |
# Perfect alternative to Chicago Pneumatic Sludge Pump - CP 0077 - T024005 - 8900004033
