Pneumatic Slurry Pump KPD 250
Regular price
₹1.00
Pneumatic Slurry Pump KPD 250
Regular price
₹1.00
DESCRIPTION
Pneumatic Slurry Pump KPD 250
Vikay is a worldwide distributor of Pneumatic Slurry Pump KPD 250 a perfect alternative to CP 0077 sludge pump - T024005 - 8900004033 suitable for pumping seawater and certain corrosive chemicals from India.
Vikay Pneumatic Slurry Pump for Underground Mines.
Double Diaphragm Slurry pump designed for Shaft Sinking, Drives, decline, Ramps, Tunnels & Dams with the Head delivery of 40 – 70 Mtrs.

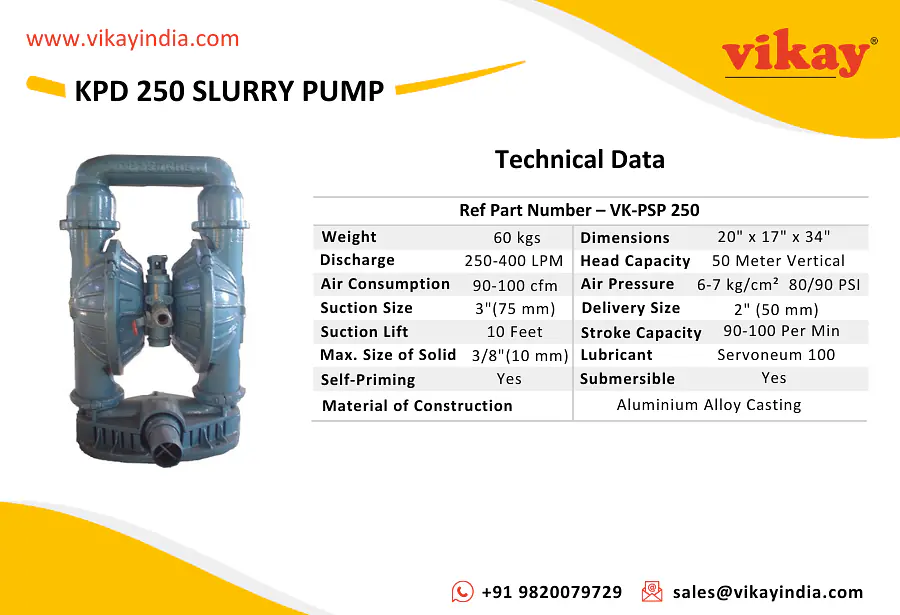

Technical Details
| Model | KPD-250 |
| Weight | 60 Kgs |
| Dimensions | 20" x 17" x 34" |
| Discharge | 250 - 400 lpm |
| Head Capacity | 50 Meter Vertical |
| Air Consumption | 90 - 100 cfm |
| Air Pressure | 6 - 7 kg/cm² 80/90 psig |
| Suction Size | 75 mm 3" |
| Delivery Size | 50 mm 2" |
| Suction Lift | 10 feet |
| Stroke Capacity | 90 - 100 Per Minute |
| Max. Size of Solid | 10 mm 3/8" |
| Lubricant | Servoneum 100 |
| Self Priming | Yes |
| Submersible | Yes |
| Material of Construction | Alluminium Alloy Casting |
# Perfect alternative to Chicago Pneumatic Sludge Pump - CP 0077 - T024005 - 8900004033
