Pressure Controller IR 234 Air Compressor Parts
Regular price
₹0.00
Pressure Controller IR 234 Air Compressor Parts
Regular price
₹0.00
DESCRIPTION
Pressure Controller For Ingersoll Rand Type 30 - Model 234
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Pressure Controller For Ingersoll Rand Type 30 - Model 234 from India

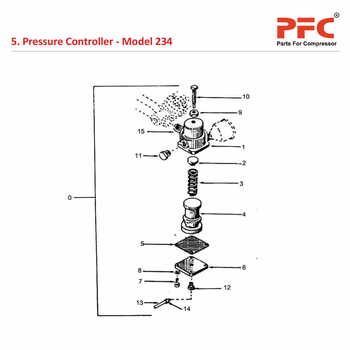

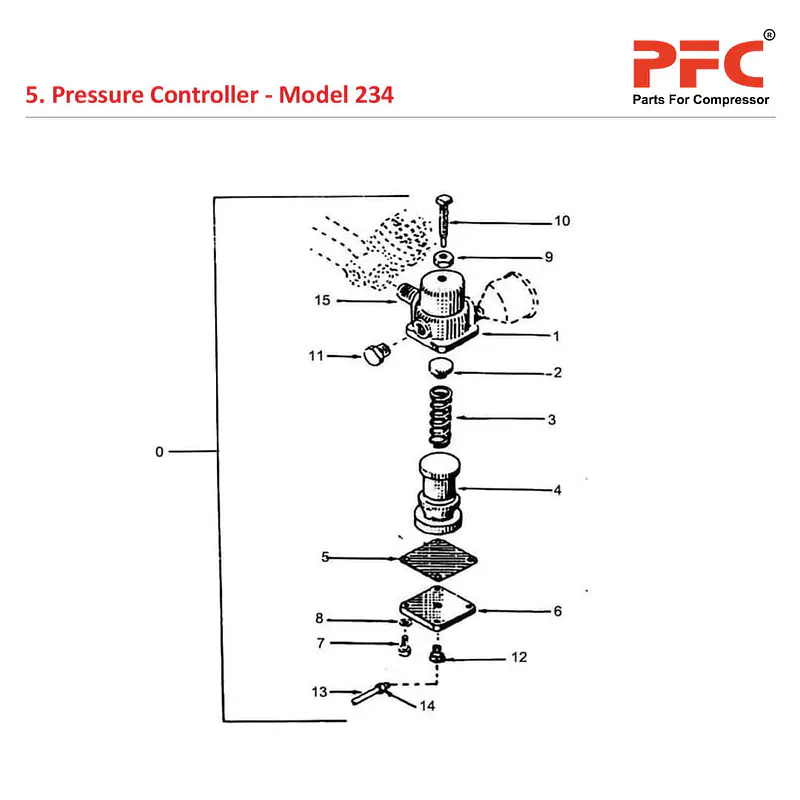

Pressure Controller
| Sr.No | Ref. Part Number | Description | Qty |
| 5-0 | Pressure Controller Compl | 1 | |
| 5-1 | 30296032 | – Body Pressure Controller | 1 |
| 5-2 | 30285118 | – Washer Spring | 1 |
| 5-3 | 30671762 | – Spring | 1 |
| 5-4 | 30288013 | – Valve | 1 |
| 5-5 | 30282404 | – Diaphragm | 1 |
| 5-6 | 30211270 | – Cover | 1 |
| 5-7 | 95079612 | – Capscrew | 4 |
| 5-8 | 95081857 | – Washer Spring | 4 |
| 5-9 | 95077798 | – Nut | 1 |
| 5-10 | 30290811 | – Screw Spring Adjusting | 1 |
| 5-11 | 30284863 | – Plug Body | 1 |
| 5-12 | 95082475 | – Connector Tube | 1 |
| 5-13 | 32020489 | – Tube | 1 |
| 5-14 | 95229027 | – Nut Tube | 2 |
| 5-15 | 95048435 | – Nipple Close | 1 |
