Pressure Controller IR 242 Air Compressor Parts
This product is not available in the selected currency.
In Stock
Backordered
Out of Stock
Description
Pressure Controller For Ingersoll Rand Type 30 - Model 242
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Pressure Controller For Ingersoll Rand Type 30 - Model 242 from India
Product
- Page 1

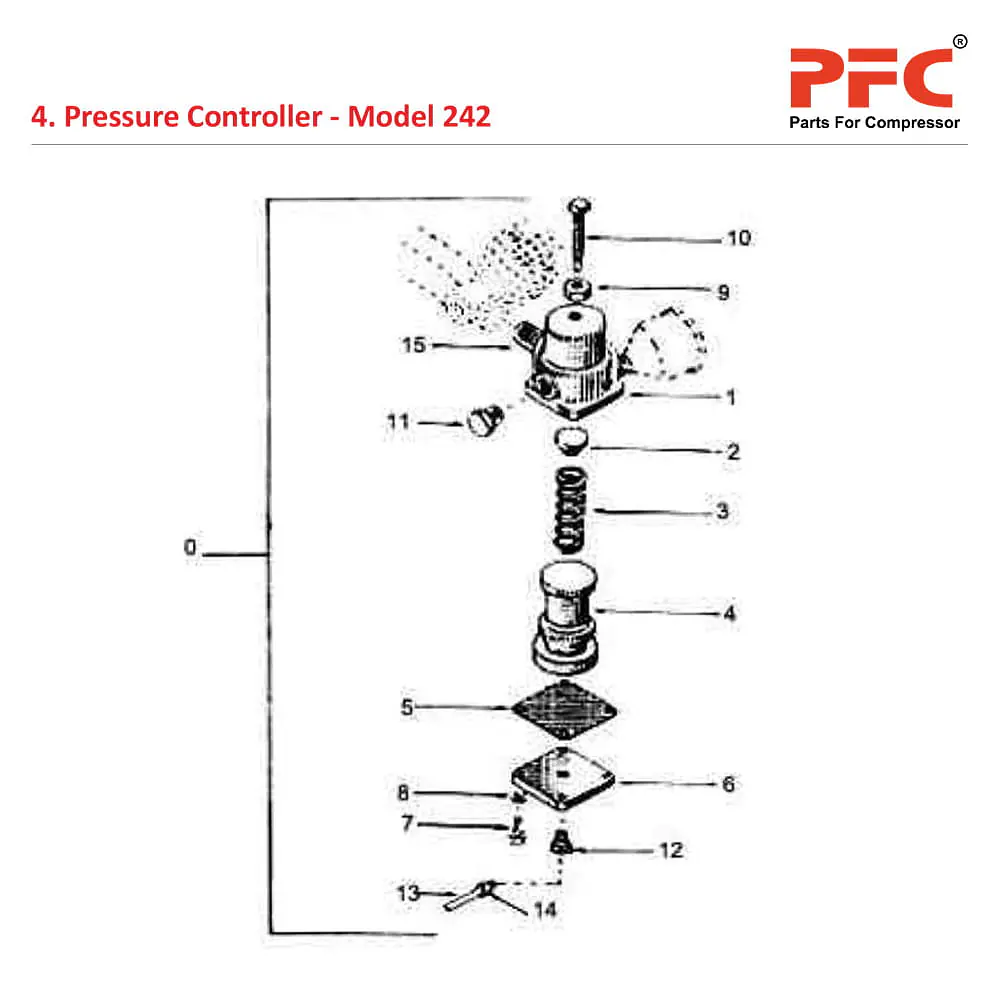

1. Pressure Controller
| Sr.No | Ref. Part Number | Description |
| 4-0 | 30292155 | Pressure Controller Complete |
| 4-1 | 30296032 | Body |
| 4-2 | 30285118 | Washer Spring |
| 4-3 | 30671762 | Spring Up To 125 Psig |
| 4-4 | 30673180 | Spring Above 125 Psig |
| 4-5 | 30288013 | Valve |
| 4-6 | 30282404 | Diaphragm |
| 4-7 | 30211270 | Cover |
| 4-8 | 95079612 | Capscrew |
| 4-9 | 95081857 | Washer Spring |
| 4-10 | 95077798 | Nut |
| 4-11 | 30290811 | Screw Spring Adjusting |
| 4-12 | 30284863 | Plug Body |
| 4-13 | 95031860 | Elbow Tube |
| 4-14 | 32020489 | Tube |
| 4-15 | 95229027 | Nut Tube |
| 4-16 | 94465861 | Nipple Close |
| 4-17 | 94465010 | Aux. Valve |
