DESCRIPTION
Pressure Controller For Ingersoll Rand Type 30 Model 253
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Pressure Controller For Ingersoll Rand Type 30 - Model 253 from India.

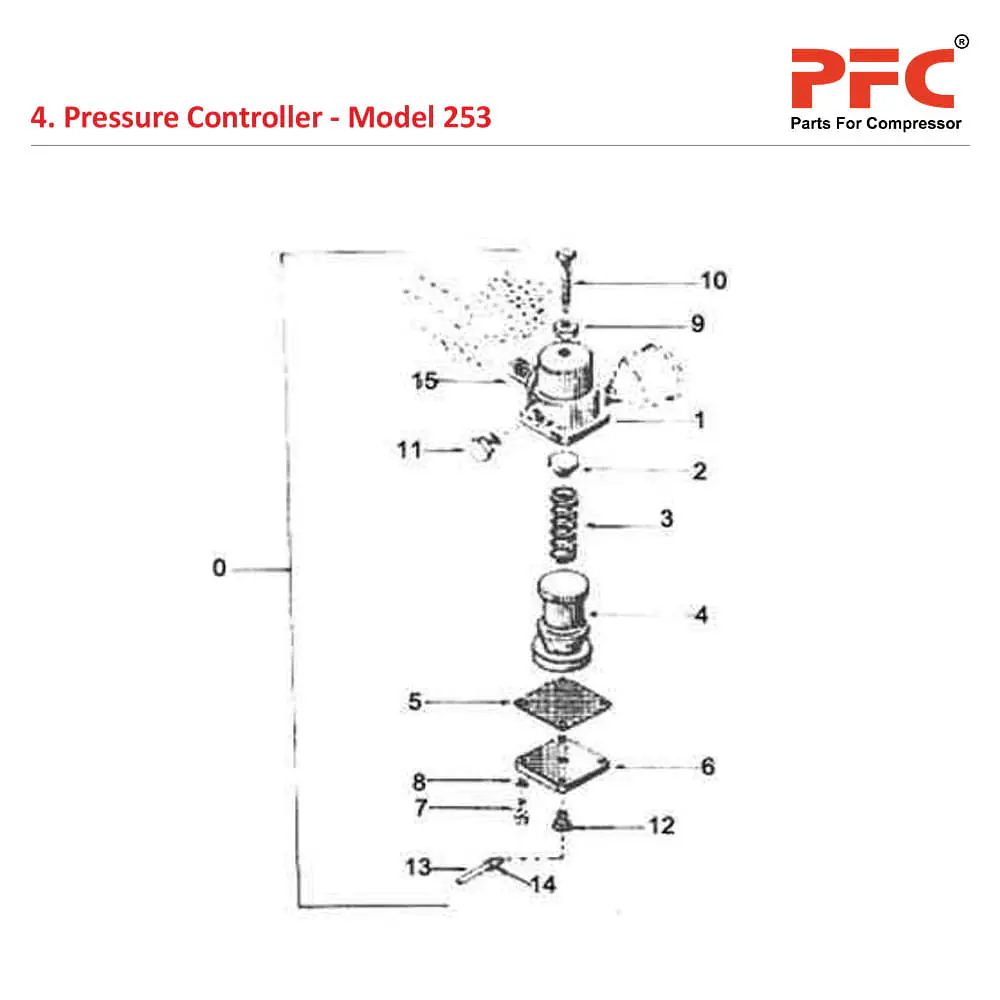

Pressure Controller
| Sr.No | Ref. Part Number | Description | Qty |
| 4-0 | 30210702 | Pressure Controller Complete | 1 |
| 4-1 | 30296040 | – Body | 1 |
| 4-2 | 30220859 | – Washer Spring | 1 |
| 4-3 | 30671812 | – Spring Up to 125 PSIG | 1 |
| 4-3 | 30673198 | – Spring Above 125 PSIG | 1 |
| 4-4 | 30220768 | – Valve | 1 |
| 4-5 | 30296040 | – Diaphragm | 1 |
| 4-6 | 30211262 | – Cover | 1 |
| 4-7 | 95079612 | – Capscrew | 4 |
| 4-8 | 95081857 | – Washer Spring | 4 |
| 4-9 | 95077798 | – Nut | 1 |
| 4-10 | 30290811 | – Screw Spring Adjusting | 1 |
| 4-11 | 30284863 | – Plug Body | 2 |
| 4-12 | 95031860 | – Elbow Tube | 1 |
| 4-13 | 32020489 | – Tube | 3FT |
| 4-14 | 95229027 | – Nut Tube | 2 |
| 4-15 | 94466026 | – Nipple Close | 1 |
