DESCRIPTION
Regulating Valve for Atlas Copco Air Compressor
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Regulating Valve for Atlas Copco Air Compressor from India
Product
- Page 1

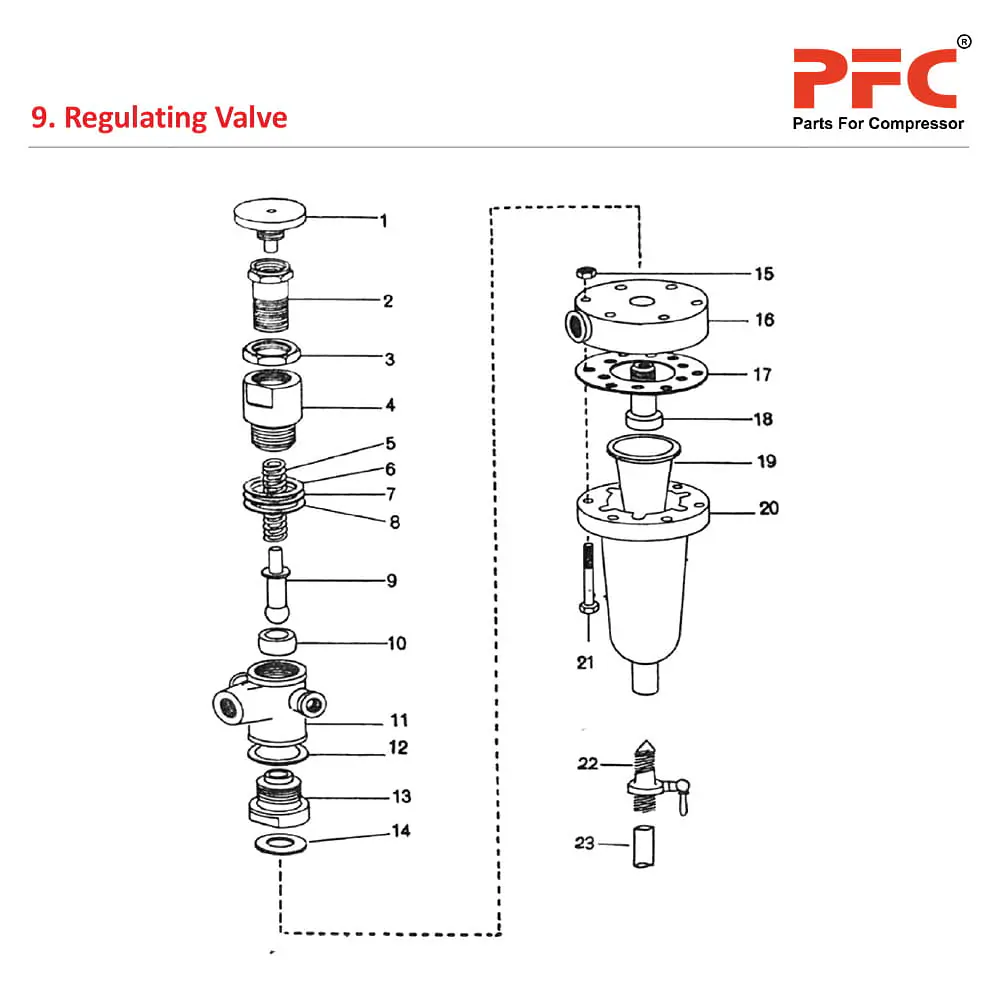

09. Regulating Valve
| No. | Description | Ref. Part No. | |
| - | VALVE, regulating compl. | 1011351080 | |
| 1 | - Screw for manual unloading | 1010526700 | |
| 2 | - Adjusting Screw | 1010526600 | |
| 3 | - Locknut | 1010526500 | |
| 4 | - Seat, upper | 1011349500 | |
| 5 | - Spring 2.5/8.5 x 44 mm | 1090036700 | |
| 6 | - Shim brass | 0653724700 | |
| 7 | - Shim brass | 0653724200 | |
| 8 | - Shim brass | 0653724100 | |
| 9 | - Spring Guide | 1011349800 | |
| 10 | - Valve Disc. | 1011349700 | |
| 11 | - Housing | 1012024700 | |
| 12 | - Copper Washer | 0653052500 | |
| 13 | - Seat, lower | 1011349600 | |
| - | FILTER, compl. | 1011132486 | |
| 14 | - Washer | 0653905900 | |
| 15 | - Nut | 0266110800 | |
| 16 | - Flange | 1011168300 | |
| 17 | - Joint | 1011132700 | |
| 18 | -Tubular Screw | 1011132800 | |
| 19 | - Air Filter | 1012035600 | |
| 20 | - Housing | 1011132400 | |
| 21 | Bolt | 0147125200 | |
| 22 | Drain cock | 1619198100 | |
| 23 | Drain Tube | 1614023900 | |
| - | Valve Regulating Complete with Filter Housing |
