Remote Control Complete with Nipples 3040007083 Replacement Parts
Vikay is a global supplier of new aftermarket replacement parts - Remote Control Complete with Nipples 3040007083 for Atlas Copco Simba-Junior from India
Product
- Page 1

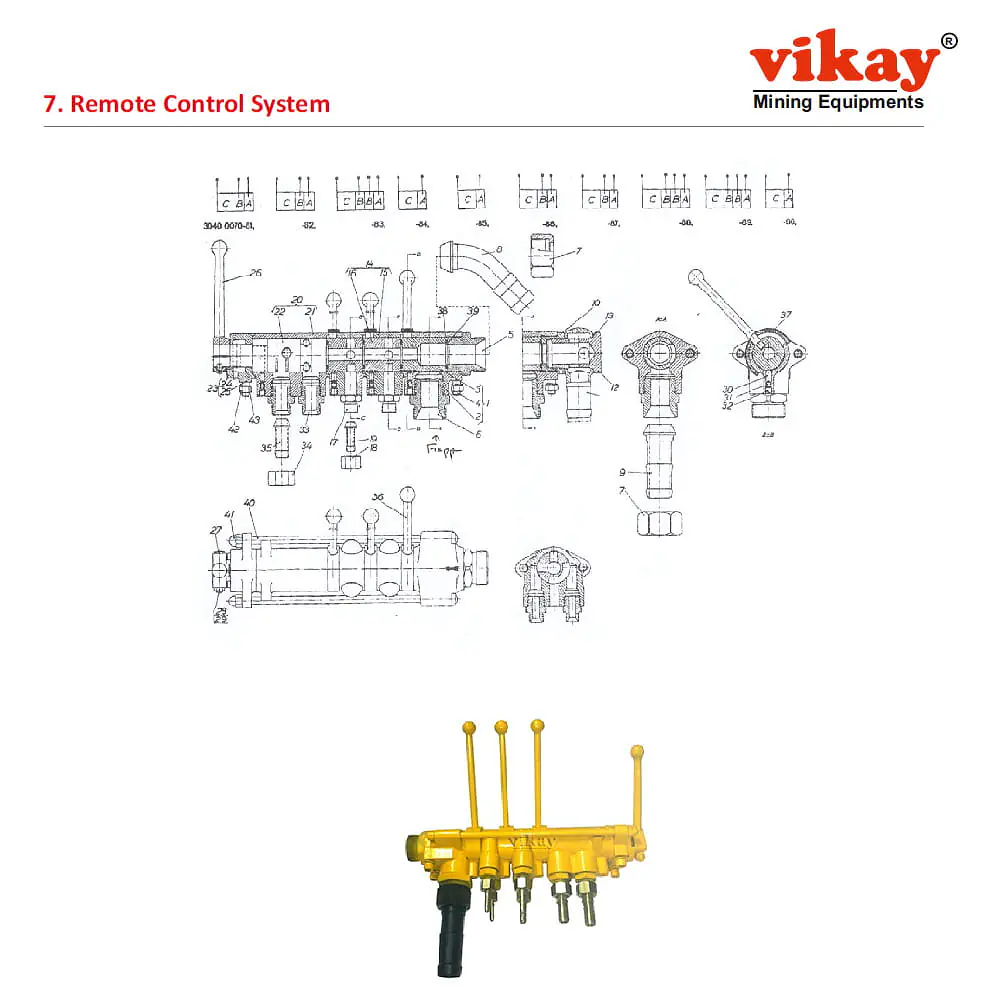

Remote Control Complete with Nipples
| No. | Description | Modified | Ref. Part No. |
| Remote Control Complete With Nipple | 3040007083 | ||
| 1 | Valve Casing Compl. | 3040003080 | |
| 2 | Valve Casing | ||
| 3 | Valve | 3040003100 | |
| 4 | Stud (PS 12X42) | 0246128000 | |
| 5 | Adapter | 3040003200 | |
| 6 | Nipple | 9000034700 | |
| 7 | Coupling Nut | 9000033500 | |
| 8 | Nipple, Bent 11/2" | 3040005100 | |
| 9 | Nipple, Straight 11/2" | 9000017700 | |
| 14 | Valve Casing, Compl. | 3040002780 | |
| 15 | Valve Casing | ||
| 16 | Valve | 3040002900 | |
| 17 | Nipple 3/8" | 9000036800 | |
| 18 | Coupling Nut 3/8" | 9000033100 | |
| 19 | Nipple 3/8" | 9000032100 | |
| Valve Casing,Compl. w. Cover | 3040006181 | ||
| 20 | Valve Casing, Compl. | 3040006180 | |
| 21 | Valve Casing | ||
| 22 | Valve | 3040006200 | |
| 23 | Cover, Compl. | 3040006380 | |
| 24 | Cover | 3040006300 | |
| 25 | Stud (PS 12x42) | 0246128000 | |
| 26 | Lever | 3040006400 | |
| 27 | Screw (B6LS 10x60) | 0147136900 | |
| 28 | Spring Washer (FBB 10.2) | 0333213000 | |
| 29 | Nut (B6LM 10) | 0266111100 | |
| 30 | Pin | 3040003700 | |
| 31 | Spring | 3040003800 | |
| 32 | Screw | 3040003900 | |
| 33 | Nipple | 9000034500 | |
| 34 | Coupling Nut 3/4" | 9000033300 | |
| 35 | Nipple 1/2" | 9000010000 | |
| 35 | Nipple 3/4" | 9000032500 | |
| 30 | Pin | 3040003700 | |
| 31 | Spring | 3040003800 | |
| 32 | Screw | 3040003900 | |
| 36 | Lever | 3040005400 | |
| 37 | Guard | 3040003500 | |
| 38 | Guide Ring | 3040006000 | |
| 39 | O-Ring (39.2 x 3A) | 0663213300 | |
| 40 | Side Bolt | 3040004600 | |
| 41 | Cap Nut | 3040004100 | |
| 42 | Nut (B6LM 12) | 0266111200 | |
| 43 | Spring Washer (FBB 12.2) | 0333213600 |
The following part are available on special order
| No. | Description | Ref. Part No. |
| Short Lever | ||
| 36 | Lever | 3040003400 |
| When using 1/4" hose for reverse rotation | ||
| 19 | Nipple 1/4" | 9000039600 |
| Holder For Wagon Drill | ||
| 19 | Holder | 3040006800 |
