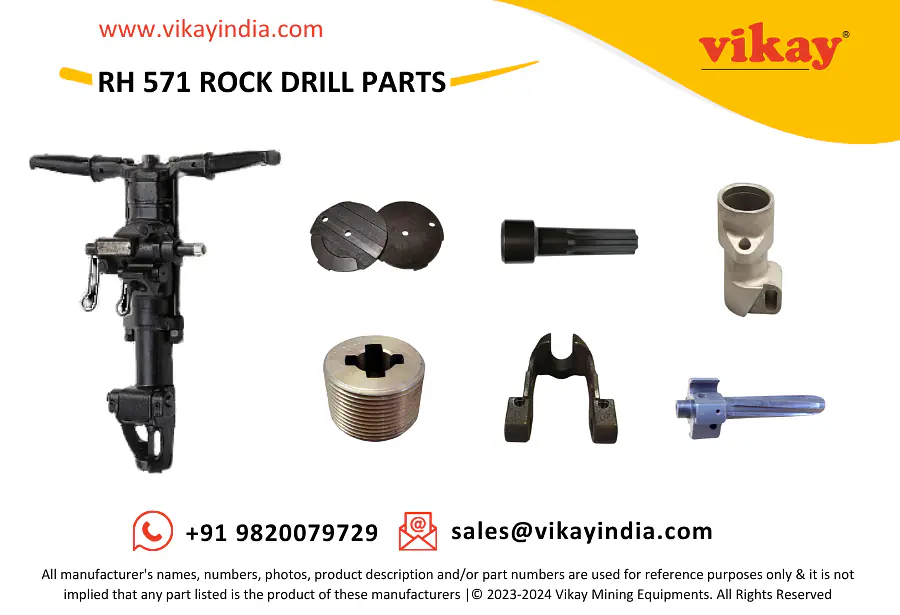

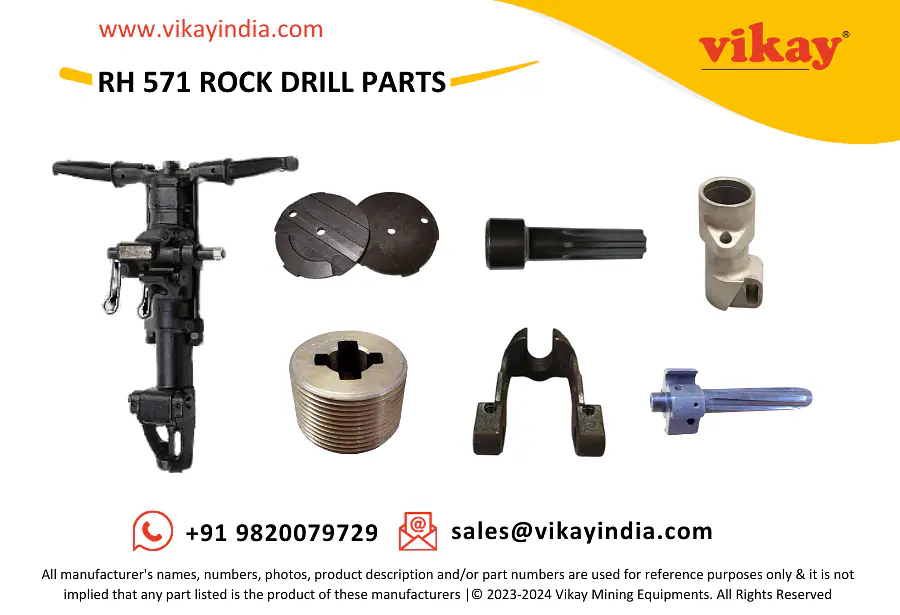

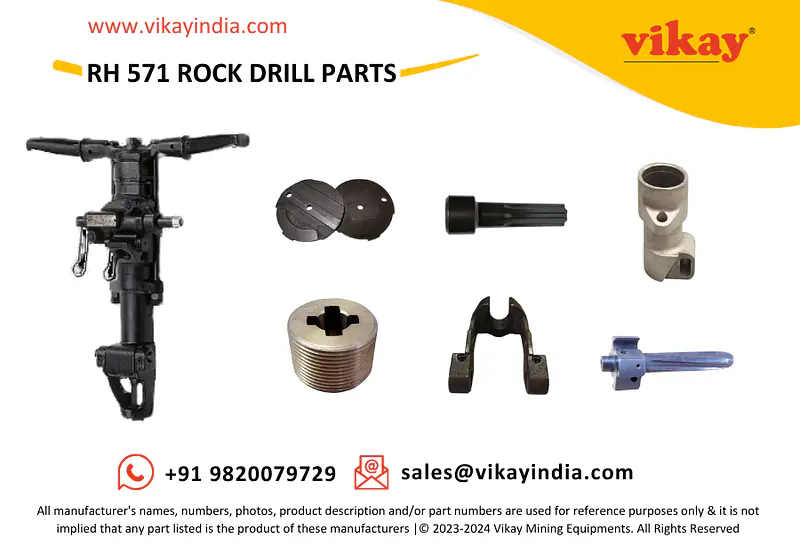

Rh 571 Atlas copco Rock Drill Parts

₹0.00

Pinch to
zoom

Quantity

DESCRIPTION

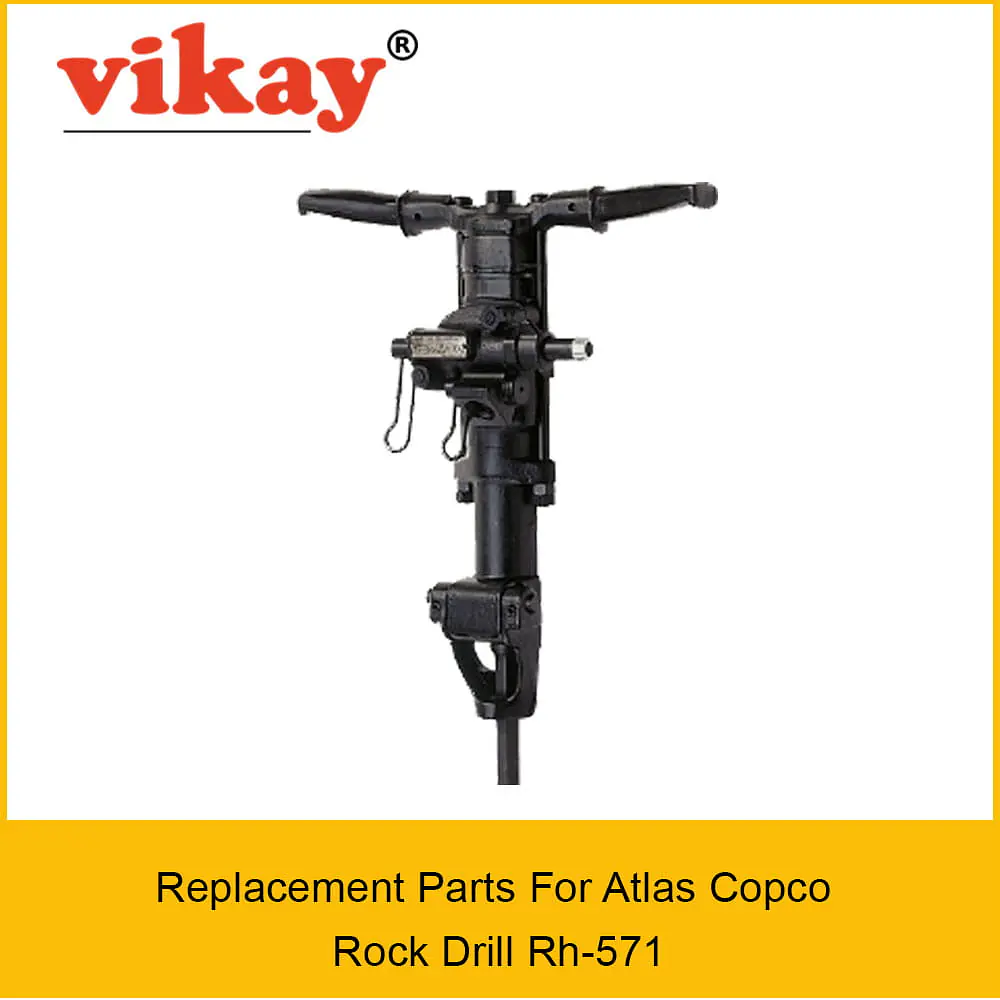

Rh-571 Rock Drill Atlas Copco Replacement Parts

Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Rock Drill Rh-571 from India

Product

  • Page 1

Rh-571 Rock Drill Parts

Sr. NoDescription Ref. Part No.
1Drill steel retainer 3121085100
2Retainer pin 3121085200
3Tension pin 0108339200
4Rubber buffer 3121003000
5Buffer plate 3121002900
6Front head 3111014100
7Nut 0266120800
8Rotation chuck, complete (9-10) 3111018580
9 - Rotation Chuck   ---
10 - Chuck bushing Hexagon 22 x 108 mm 3111018600
11Intermediate part 3111014300
12Piston, complete (13-14) 3111016280
13 - Piston   ---
14- Rifle nut 3100929908
15Cylinder 3106082500
16Spring pin 0108123800
17Main valve 3101158601
18Throttle housing, complete (19-25) 3115116380
19 - Throttle housing   ---
20- Lever 3115119100
21 - Hexagon nipple 9000034500
22 - Throttle valve 3115119000
23- Lever 3101366400
24- Coil spring 3001395701
25- Exhaust valve 3101498800
26Nut 3000134500
27Lock washer 0333313900
28Bolt 3100019406
29Hose nipple  3115154300
30Wing nut  9000033800
31Cover 3106082700
32Rifle bar 3111014500
33Pawl, complete (34-36) 3115920090
34- Pressure spring 3100914002
35- Pawl pin 3100964101
36- Pawl 3101315900
37Ratchet ring 3115116700
38Back head 3115116600
39Rubber packing  3000012100
40Spring pin 0108136000
41Handle, complete (42-43)  3310056980
42 - Handle    ---
43 - Bushing 3310057200
44Air flushing tube 3111014000
45Seal washer 3100934100
46Side bolt 3111014400
47Plug 3100012000
48Data Plate   ---
49Safety label 3310160200
