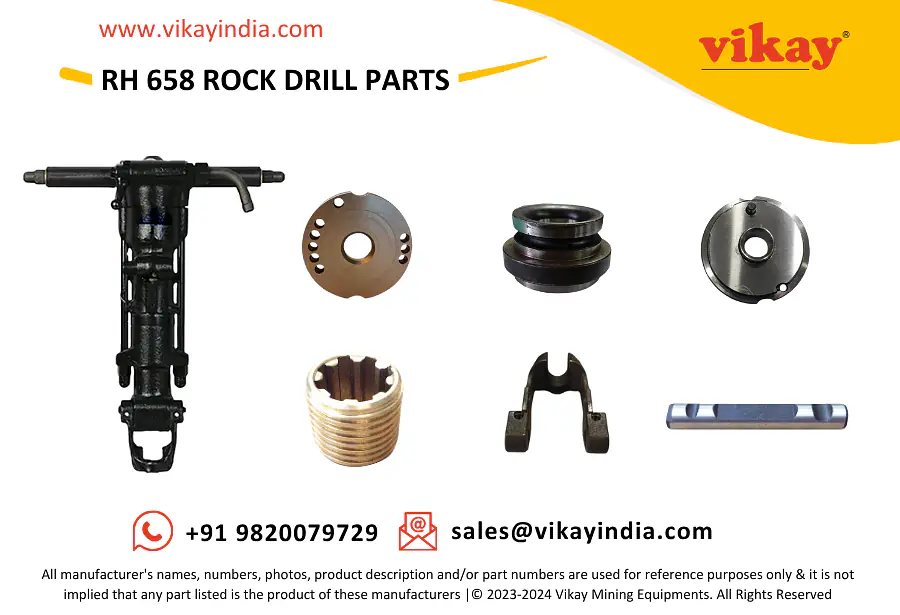

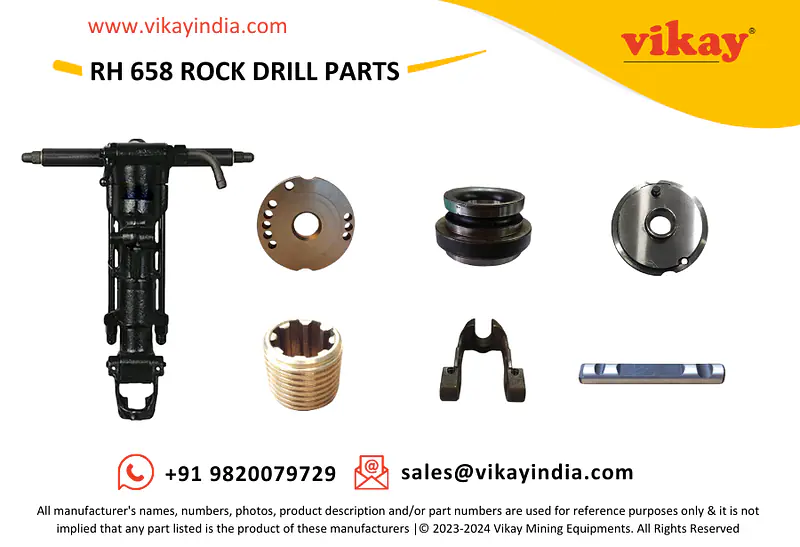

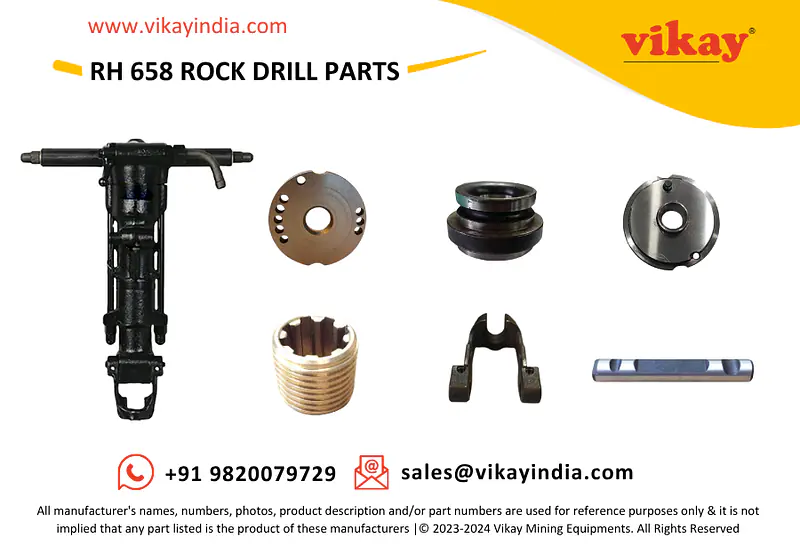

Rh 658 Atlas copco Rock Drill Parts
Regular price
₹0.00
Rh 658 Atlas copco Rock Drill Parts
Regular price
₹0.00
DESCRIPTION

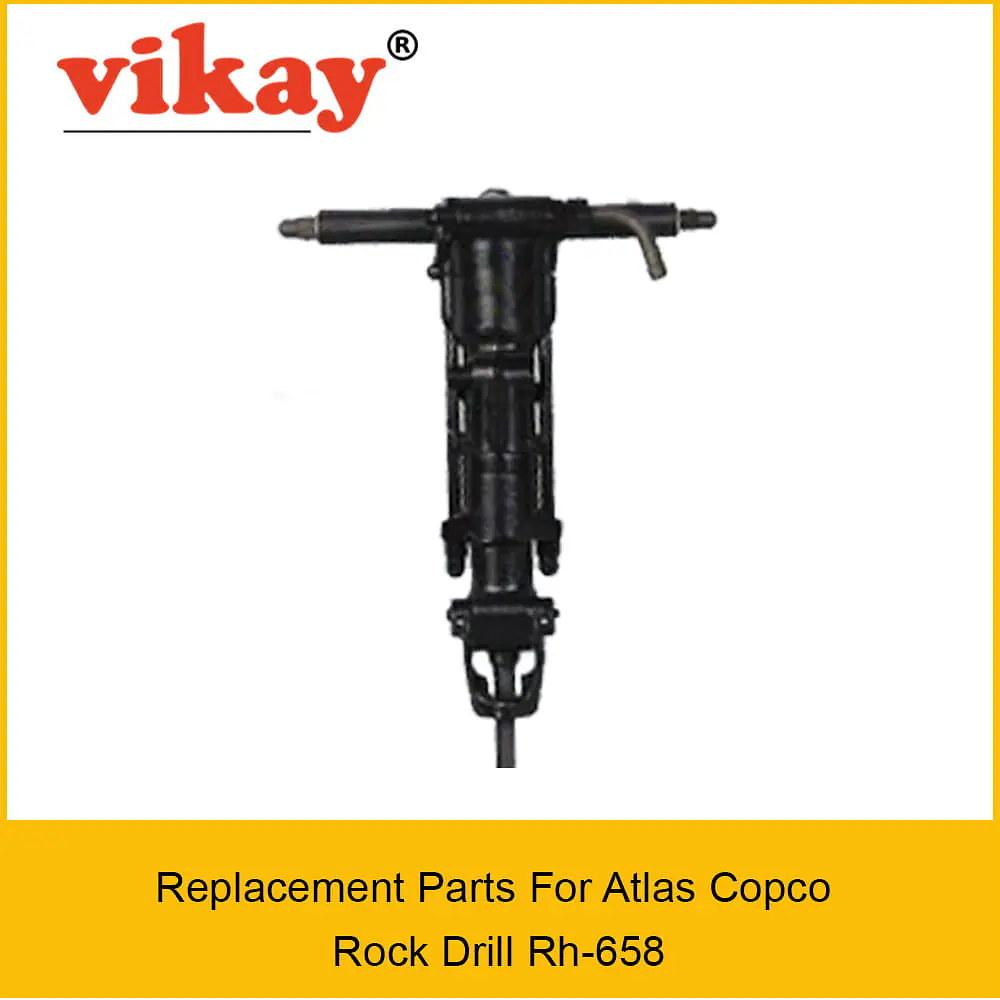

Rh-658 Rock Drill Atlas Copco Replacement Parts
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Atlas Copco Rock Drill Rh-658 from India
Product
- Page 1
Rh-658 Rock Drill Parts
| Sr. No | Description | Ref. Part No. | |
| 1 | Drill steel retainer Hexagon 22 mm | 3121085100 | |
| 2 | Retainer pin | 3121085200 | |
| 3 | Tension pin | 0108339200 | |
| 4 | Rubber buffer | 3121003000 | |
| 5 | Buffer plate | 3121002900 | |
| 6 | Dome nut | 3121029200 | |
| 7 | Front head | 3121034200 | |
| 8 | Rotation chuck, complete (9-11) | 3121076980 | |
| 9 | - Rotation chuck | --- | |
| 10 | - Rotation chuck bushing Hexagon 22 x 108 mm | 3121002300 | |
| 11 | - Chuck nut | 3115122100 | |
| 12 | Intermediate part | 3121033900 | |
| 13 | Piston, complete (14-15) | 3100847880 | |
| 14 | - Piston | --- | |
| 15 | - Rifle nut | 3100929905 | |
| 16 | Cylinder | 3121033700 | |
| 17 | Outlet valve | 3115177800 | |
| 18 | Lever for extra blowing | 3115177900 | |
| 19 | Guide disc | 3106868300 | |
| 20 | Ratchet box | 3106868200 | |
| 21 | Tension pin | 0108133600 | |
| 22 | Rifle bar | 3101315400 | |
| 23 | Pawl, complete (24-26) | 3115920090 | |
| 24 | - Pressure spring | 3100914002 | |
| 25 | - Plunger | 3100964101 | |
| 26 | - Pawl | 3101315900 | |
| 27 | Guide pin | 3100966500 | |
| 28 | Cover, complete (29-30) | 3106868080 | |
| 29 | - Cover | - | |
| 30 | - Bushing | 3100989401 | |
| 31 | Main valve | 3106868100 | |
| 32 | Back head | 3115056900 | |
| 33 | Throttle valve | 3121034900 | |
| 34 | Washer | 3115104500 | |
| 35 | Adapter | 9000034500 | |
| 36 | Hose nipple | 3115117000 | |
| 37 | Cap nut | 9000033300 | |
| 38 | Pin | 3121032900 | |
| 39 | Coil spring | 3121500051 | |
| 40 | Lock washer | 3121033200 | |
| 41 | O-ring | 0663212800 | |
| 42 | Throttle lever | 3115057300 | |
| 43 | Nut | 3006873400 | |
| 44 | Handle grip | 3101137200 | |
| 45 | Washer | 3000011901 | |
| 46 | Dome nut | 3121029200 | |
| 47 | Side bolt | 3121034300 | |
| 48 | Washer | 3115057400 | |
| 49 | Air flushing tube | 3121035200 | |
| 50 | Packing | 3121033600 | |
| 51 | Sealing washer | 3000934102 | |
| 52 | Adapter | 3100962301 | |
| 53 | Sealing washer | 3101414600 | |
| 54 | Protective nut | 3100964301 | |
| 55 | Handle bolt | 3121036000 | |
| 56 | Data plate | - | |
| 57 | Safety label | 3310160200 |
