DESCRIPTION

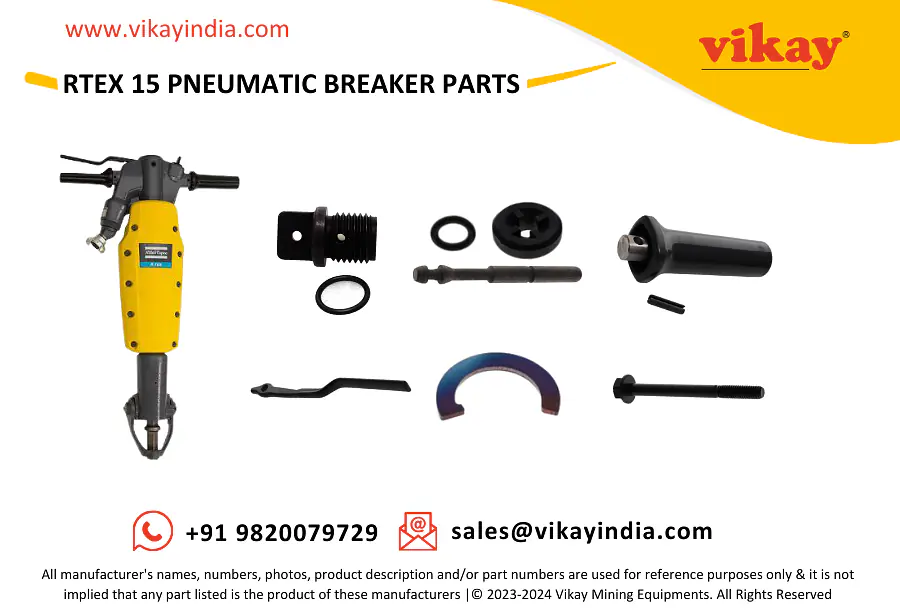

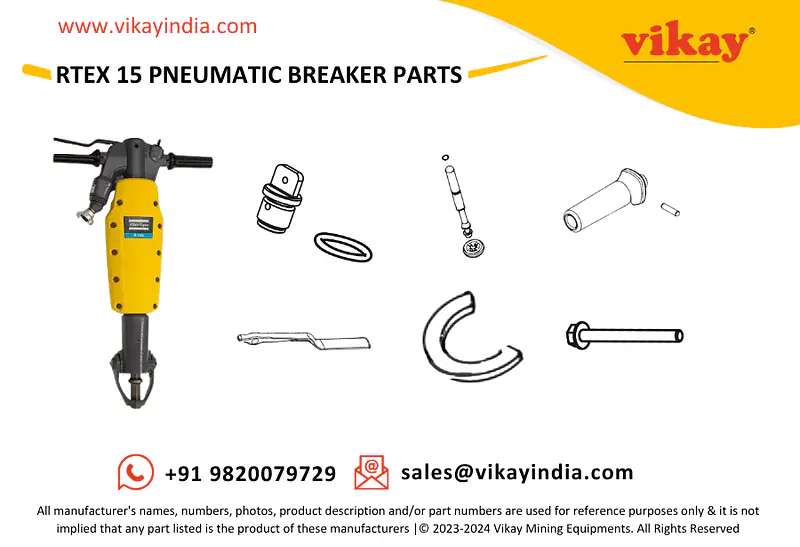

RTEX 15 Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of RTEX 15 Pneumatic Breaker Spare Parts suitable for Atlas Copco RTEX 15 Pneumatic Breaker from India.
| No. | Description | Part number | Quantity |
| 1 | Cylinder | - | 1 |
| 2 | Retainer complete | 3310110290 | 1 |
| 3 | Bush | 3310198800 | 1 |
| 4 | Tool retainer | - | 1 |
| 5 | Protection plug | 3310150800 | 1 |
| 6 | Spring | 3310089400 | 1 |
| 7 | Plunger | 3310089300 | 1 |
| 8 | Spring pin | 108169105 | 1 |
| 9 | Chuck bushing | 3310180600 | 1 |
| 10 | Intermediate part | 3310180300 | 1 |
| 11 | Lock ring | 3310180700 | 1 |
| 12 | Anvil | 3310180500 | 1 |
| 13 | Piston Madag | 3310180400 | 1 |
| 14 | Doosing feeder | 3310189300 | 1 |
| 15 | Top cover compete | 3310110280 | 1 |
| 16 | Top cover | 1 | |
| 17 | O ring | 663914300 | 1 |
| 18 | Top label | 3310190300 | 1 |
| 19 | Swivel nut | 3310175800 | 1 |
| 20 | Swivel | 3310175700 | 1 |
| 21 | Lock Washer | 3121086100 | 1 |
| 22 | O ring swivel | 663212800 | 1 |
| 23 | Handle left, complete | 3310110076 | 1 |
| 24 | Handle | - | 1 |
| 25 | Slotted spring pin, Ø8 x 32 mm, Ø0.31 x 1.26 in. | 108135900 | 2 |
| 26 | Liner, complete | 3310110310 | 1 |
| 27 | Liner | - | 1 |
| 28 | Oring | 0663210137 | 2 |
| 29 | O ring, Liner + SW | 0663210101 | 1 |
| 30 | Handle right, complete | 3310110077 | 1 |
| 31 | Handle | - | 1 |
| 32 | Slotted spring pin, Ø8 x 32 mm, Ø0.31 x 1.26 in. | 108135900 | 2 |
| 33 | Oil plug, complete | 3310146280 | 1 |
| 34 | Oil plug | - | 1 |
| 35 | O ring | 663212600 | 1 |
| 36 | Trigger | 3310175900 | 1 |
| 37 | Spring pin | 108110350 | 1 |
| 38 | Cover | 3310170200 | 1 |
| 39 | Cover | 3310165500 | 1 |
| 40 | Main Valve, complete | 3310110073 | 1 |
| 41 | Main valve | - | 1 |
| 42 | Sealing valve | - | 1 |
| 43 | AIRZET PK25 | 663990052 | 1 |
| 44 | O Ring | 663990053 | 1 |
| 45 | O ring | 663213400 | 1 |
| 46 | O ring T | 663212050 | 1 |
| 47 | Circlip | 335213300 | 1 |
| 48 | Circlip | 335214400 | 1 |
| 49 | Data plate (Not available separately) | - | 1 |
| 50 | Drive screw | 244414400 | 2 |
| 51 | Safety Label | 3310160200 | 1 |
| 52 | Valve stern complete | 3310110078 | 1 |
| 53 | Valve stem | - | 1 |
| 54 | O ring | 663211400 | 1 |
| 55 | Inlet valve | - | 1 |
| 56 | Silencer complete | 3310110300 | 1 |
| 57 | Front label | 3310190000 | 1 |
| 58 | Dimension label 25 x 108 | 3310190600 | 1 |
| 59 | Sound power label | 3310132706 | 1 |
| 60 | Silencer front | - | 1 |
| 61 | Silencer back | - | 1 |
| 62 | Separation wall front | 3310188200 | 1 |
| 63 | Separation wall back | 3310188300 | 1 |
| 64 | O-ring, 49.2 x 5.7 mm (70 SHORE), 1.94 x 0.22 in. | 663213700 | 1 |
| 65 | Oring | 663213900 | 1 |
| 66 | Flange screw | 147300032 | 8 |
| 67 | Flange nut | 9232020750 | 8 |
