DESCRIPTION

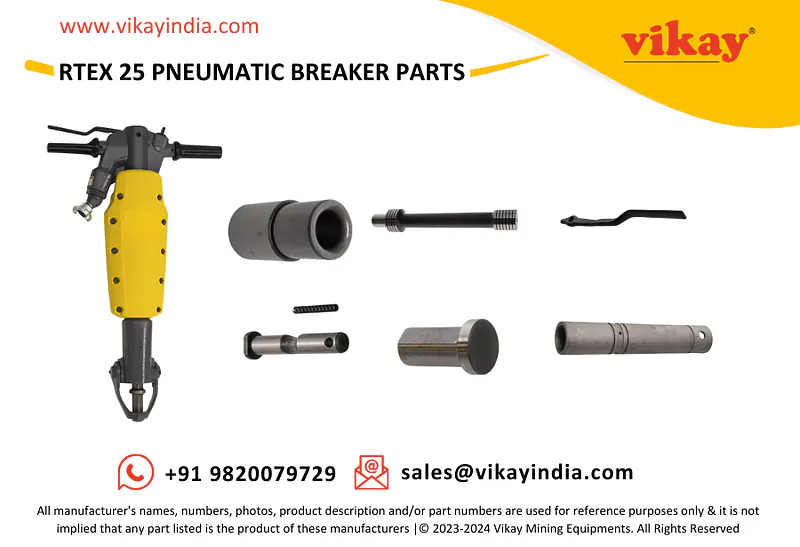

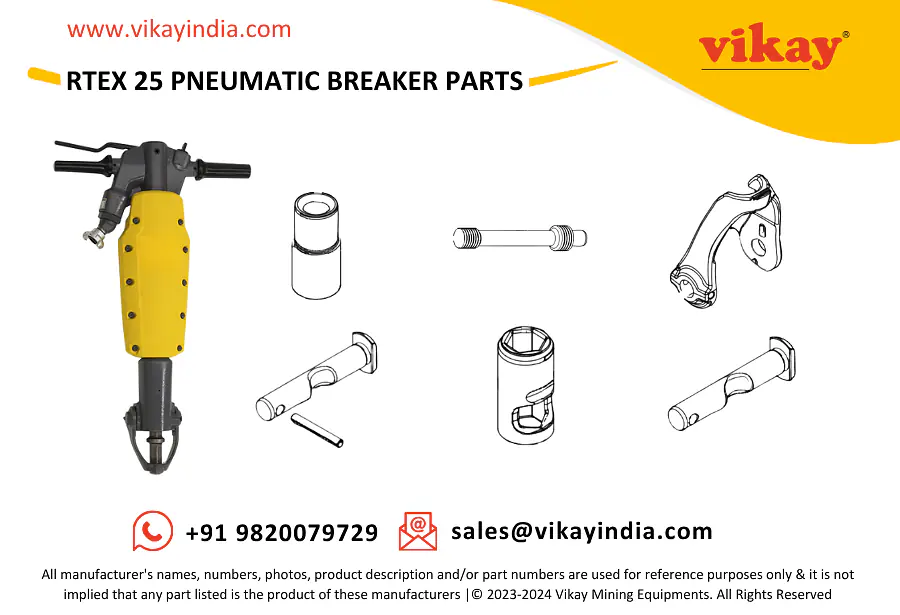

RTEX 25 Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of RTEX 25 Pneumatic Breaker Spare Parts suitable for Atlas Copco RTEX 25 Pneumatic Breaker from India.
| No. | Description | Part number | Quantity |
| 1 | Top cover, complete | 3310110075 | 1 |
| 2 | Top cover | - | 1 |
| 3 | O-ring, Ø30.3 x 2.4 mm, 1.20 x 0.09 in. | 663914300 | 1 |
| 4 | Product label, "R TEX" | 3310190100 | 1 |
| 5 | Liner, complete | 3310110074 | 1 |
| 6 | O-ring, Ø40 x 2 mm, 1.57 x 0.08 in. | 4090050700 | 3 |
| 7 | Liner | - | 1 |
| 8 | Oil plug, complete | 3310146280 | 1 |
| 9 | Oil plug | - | 1 |
| 10 | O-ring, Ø22.2 x 3 mm, 0.87 x 0.12 in. | 663212600 | 1 |
| 11 | Piston | 3310195000 | 1 |
| 12 | Dosing feeder | 3310189300 | 1 |
| 13 | Trigger | 3310175900 | 1 |
| 14 | Handle right, complete | 3310110077 | 1 |
| 15 | Slotted spring pin, Ø 8 x 32 mm, Ø 0.31 x 1.26 in. | 108135900 | 1 |
| 16 | Handle | - | 1 |
| 17 | Handle left, complete | 3310110076 | 1 |
| 18 | Slotted spring pin, Ø 8 x 32 mm, Ø 0.31 x 1.26 in. | 108135900 | 1 |
| 19 | Handle | - | 1 |
| 20 | Valve stem, complete | 3310110078 | 1 |
| 21 | Valve stem | - | 1 |
| 22 | Inlet valve | - | 1 |
| 23 | O-ring 7.3 x 2.4 mm (70 shore), 0.28 x 0.09 in. | 663211400 | 1 |
| 24 | O-ring, 26.2 x 3 mm (70 shore), 1.03 x 0.12 in. | 663212800 | 1 |
| 25 | Swivel nut | 3310175800 | 1 |
| 26 | Swivel | 3310175700 | 1 |
| 27 | Main Valve, complete | 3310110073 | 1 |
| 28 | Circlip | 335214400 | 1 |
| 29 | O-ring, Ø33 x 2.62 mm, 1.30 x 0.10 in. | 663212050 | 1 |
| 30 | O-ring, Ø42.2 x 3 mm, 1.66 x 0.12 in. | 663213400 | 1 |
| 31 | Main valve | - | 1 |
| 32 | Sealing valve | - | 1 |
| 33 | AIRZET PK 25 | 663990052 | 1 |
| 34 | X- ring | 663990053 | 1 |
| 35 | Circlip DIN472 | 335213300 | 1 |
| 36 | Safety Label | 3310160200 | 1 |
| 37 | Lock washer | 3121086100 | 1 |
| 38 | Sound power label | 3310132707 | 1 |
| 39 | Intermediate part | 3310177200 | 1 |
| 40 | Tool retainer, complete | 3310110071 | 1 |
| 41 | Bush | 3310176700 | 2 |
| 42 | Plunger | 3310176900 | 2 |
| 43 | Spring | 3310176500 | 2 |
| 44 | Locking cylinder | 3310181800 | 1 |
| 45 | Retainer | - | 1 |
| 46 | Cover | 3310165500 | 1 |
| 47 | Retainer pin, complete (H28) | 3310110079 | 1 |
| 48 | Retainer pin | - | 1 |
| 49 | Spring pin | 108110351 | 1 |
| 50 | Retainer pin, complete (H32) | 3310110080 | 1 |
| 51 | Retainer pin | - | 1 |
| 52 | Spring pin | 108110351 | 1 |
| 53 | Product label, "R TEX" | 1 | |
| 54 | Chuck bushing H28 | 3310177500 | 1 |
| 55 | Chuck bushing H32 | 3310177000 | 1 |
| 56 | Lock ring | 3310178600 | 2 |
| 57 | Anvil block | 3310176400 | 1 |
| 58 | O-ring, Ø40 x 2 mm, 1.57 x 0.08 in. | 4090050700 | 1 |
| 59 | Cylinder | - | 1 |
| 60 | Spring pin | 108110350 | 1 |
| 61 | Data plate (Not available separately) | - | 1 |
| 62 | Drive screw | 244414400 | 2 |
| 63 | Cover | 3310170200 | 1 |
| 64 | Silencer, complete | 3310110072 | 1 |
| 65 | Flange screw | 147300032 | 10 |
| 66 | Flange nut | 9232020750 | 10 |
| 67 | O-ring, Ø59.2 x 5.7 mm, 2.33 x 0.22 in. | 663213900 | 2 |
| 68 | Dimension label 28 x 160/152 | 3310190500 | 1 |
| 69 | Dimension label 32 x 160/152 | 3310190400 | 1 |
| 70 | Seperation wall back | 3310179600 | 1 |
| 71 | Silencer back | - | 1 |
| 72 | Silencer front | - | 1 |
| 73 | Seperation wall front | 3310179400 | 1 |
| 74 | Plug shorter | 3310179000 | 1 |
| 75 | Plug longer | 3310179200 | 1 |
For RTEX 25 (H25)
| No. | Description | Part number | Quantity |
| 39 | Tool retainer, complete | 3310110290 | 1 |
| 40 | Retainer | - | 1 |
| 41 | Bush | 3310198800 | 1 |
| 42 | Spring pin | 108169105 | 1 |
| 43 | Plunger | 3310089300 | 1 |
| 44 | Spring | 3310089400 | 1 |
| 45 | Cover | 3310165500 | 1 |
| 46 | Protection plug | 3310150800 | 1 |
| 47 | Chuck bushing H25 | 3310177600 | 1 |
| 48 | Lock ring | 3310180700 | 2 |
| 49 | Anvil block | 3310176400 | 1 |
| 50 | O-ring, Ø40 x 2 mm, 1.57 x 0.08 in. | 4090050700 | 1 |
| 51 | Cylinder | - | 1 |
| 52 | Spring pin | 108110350 | 1 |
| 53 | Data plate (Not available separately) | - | 1 |
| 54 | Drive screw | 244414400 | 2 |
| 55 | Cover | 3310170200 | 1 |
| 56 | Silencer, complete | 3310100332 | 1 |
| 57 | Sound power label | 3310132707 | 1 |
| 58 | Product label, "R TEX" | 3310189800 | 1 |
| 59 | Flange screw | 147300032 | 10 |
| 60 | Flange nut | 9232020750 | 10 |
| 61 | O-ring, Ø59.2 x 5.7 mm, 2.33 x 0.22 in. | 663213900 | 2 |
| 62 | Dimension label 25 x 108 | 3310190600 | 1 |
Working Tools
| No. | Description | Part number | Quantity |
| 1 | Notched - narrow chisel - H28 | 3083418010 | 1 |
| 2 | Collared - Narrow chisel H 28 x 160 | 3083327400 | 1 |
| 3 | Collared - Moil point - Hex 28 x 160 | 3083327100 | 1 |
| 4 | Collared - Narrow chisel - Hex 32 x 160 | 3083320800 | 1 |
| 5 | Collared - Moil point - Hex 32 x 160 | 3083320500 | 1 |
ISO standard hexagon 25 x 108 mm
| No. | Description | Part number | Quantity |
| 1 | Moil point | 3083325300 | 1 |
| 2 | Narrow chisel | 3083325400 | 1 |
| 3 | Wide chisel | 3083325500 | 1 |
| 5 | Digging chisel | 3083325600 | 1 |
| 6 | Digging spade | 3083325700 | 1 |
| 7 | Clay spade | 3083303300 | 1 |
| 8 | Wedge chisel | 3083325800 | 1 |
| 9 | Shaft for tamping pad | 3083325900 | 1 |
| 10 | Tamping pad, round | 3083325210 | 1 |
| 11 | Tamping pad, square | 3083323901 | 1 |
| 12 | Driver pad, round | 9245281790 | 1 |
| 12 | Driver pad, round | 3371806039 | 1 |
| 14 | Posthole tool | 9245282230 | 1 |
ISO standard hexagon 28 x 160 mm
| No. | Description | Part number | Quantity |
| 1 | Collared - Moil point - Hex 28 x 160 | 3083327100 | 1 |
| 1 | Moil point | 3083327200 | 1 |
| 1 | Moil point | 3083327300 | 1 |
| 2 | Collared - Narrow chisel H 28 x 160 | 3083327400 | 1 |
| 2 | Narrow chisel | 3083327500 | 1 |
| 2 | Narrow chisel | 3083327600 | 1 |
| 3 | Wide chisel | 3083327700 | 1 |
| 4 | Asphalt cutter | 3083327800 | 1 |
| 5 | Digging chisel | 3083327900 | 1 |
| 6 | Digging spade | 3083328000 | 1 |
| 7 | Clay spade | 3083328100 | 1 |
| 8 | Wedge chisel | 3083328200 | 1 |
| 9 | Shaft for tamping pad | 3083328301 | 1 |
| 10 | Tamping pad, round | 3083330100 | 1 |
| 11 | Tamping pad, square | 3083330200 | 1 |
| 11 | Tamping pad, square | 3083319700 | 1 |
| 12 | Driver pad | 3376112079 | 1 |
| 12 | Driver pad | 3376112077 | 1 |
| 13 | Driver blank | 9245282710 | 1 |
ISO standard hexagon 32 x 160 mm
| No. | Description | Part number | Quantity |
| 1 | Collared - Moil point - Hex 32 x 160 | 3083320500 | 1 |
| 1 | Moil point | 3083320600 | 1 |
| 1 | Moil point | 3083320700 | 1 |
| 2 | Collared - Narrow chisel - Hex 32 x 160 | 3083320800 | 1 |
| 2 | Narrow chisel | 3083320900 | 1 |
| 2 | Narrow chisel | 3083321000 | 1 |
| 3 | Wide chisel | 3083321100 | 1 |
| 4 | Asphalt cutter | 3083321200 | 1 |
| 5 | Digging chisel | 3083321300 | 1 |
| 6 | Digging spade | 3083321400 | 1 |
| 7 | Clay spade | 3083321500 | 1 |
| 8 | Wedge chisel | 3083321600 | 1 |
| 9 | Shaft for tamping pad | 3083321801 | 1 |
| 10 | Tamping pad, round | 3083330100 | 1 |
| 11 | Tamping pad, square | 3083330200 | 1 |
| 11 | Tamping pad, square | 3083319700 | 1 |
| 12 | Driver pad | 3376112079 | 1 |
| 12 | Driver pad | 3376112077 | 1 |
| 13 | Driver blank | 9245282710 | 1 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1 | Claw coupling with strainer, complete (EU) | 9000030601 | 1 |
| 2 | Claw coupling, Standard G3/4 in. | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Packing | 9000000000 | 1 |
| 5 | Claw coupling, complete (EU) | 9000030600 | 1 |
| 6 | Claw coupling, Standard G3/4 in. | - | 1 |
| 7 | Packing | 9000000000 | 1 |
| 8 | Claw coupling, complete (US) | 9001000506 | 1 |
| 9 | Claw coupling, US-universal 3/4 in. | - | 1 |
| 10 | Gasket | 9001000515 | 1 |
