RTEX 35 Pneumatic Breaker Spare Parts
Regular price
₹1.00
RTEX 35 Pneumatic Breaker Spare Parts
Regular price
₹1.00
DESCRIPTION
RTEX 35 Pneumatic Breaker Spare Parts
Vikay is a worldwide distributor of RTEX 35 Pneumatic Breaker Spare Parts suitable for Atlas Copco RTEX 35 Pneumatic Breaker from India.

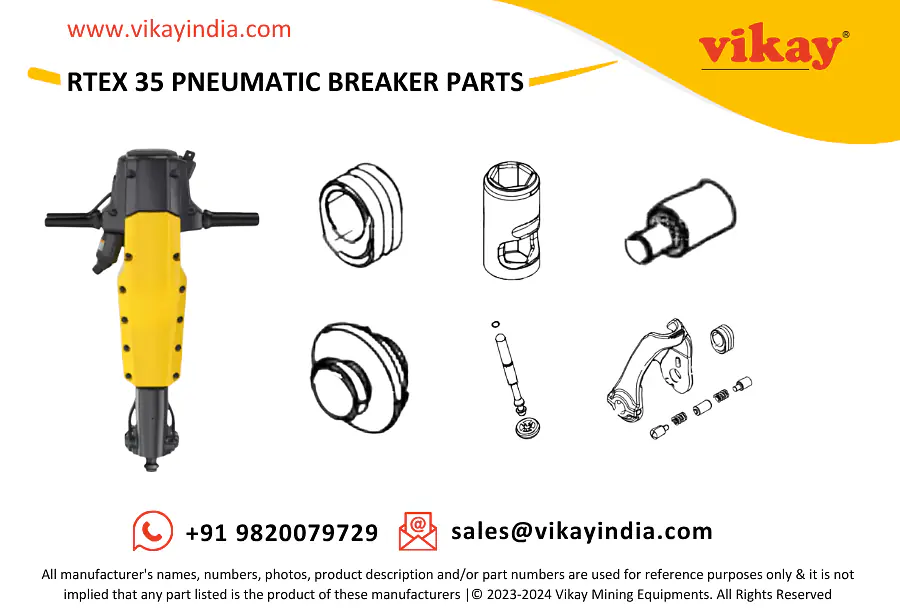

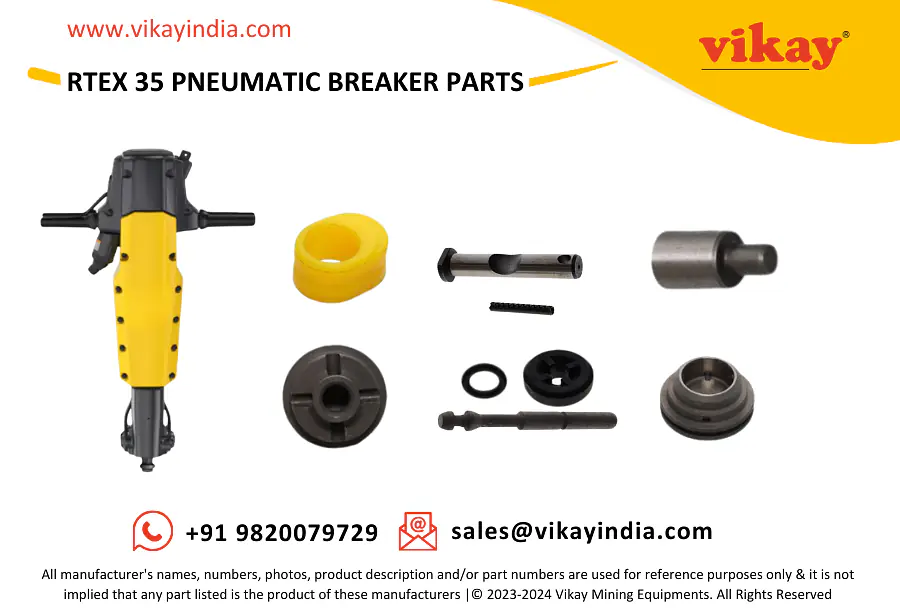

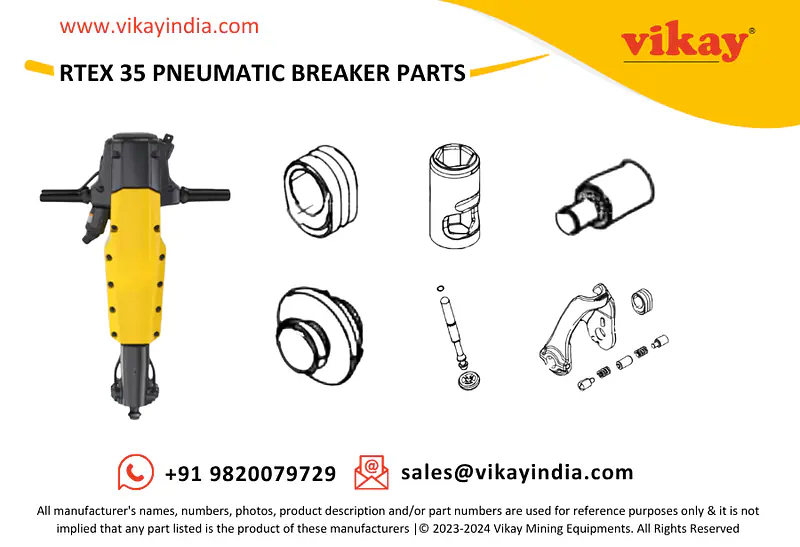

RTEX 35 Atlas Copco Pneumatic Breaker Parts
| No. | Description | Part number | Quantity |
| 1 | Top Cover, complete | 3310101846 | 1 |
| 2 | Top cover | - | 1 |
| 3 | O ring | 663914300 | 1 |
| 5 | Liner, complete | 3310199280 | 1 |
| 6 | O ring, Liner + SW | 4090050700 | 3 |
| 7 | Liner | - | 1 |
| 8 | Oil plug, complete | 3310146280 | 1 |
| 9 | Oil plug | - | 1 |
| 10 | O ring | 663212600 | 1 |
| 11 | Piston | 3310199400 | 1 |
| 12 | Doosing feeder | 3310189300 | 1 |
| 13 | Trigger | 3310199500 | 1 |
| 14 | Handle right, complete | 3310110077 | 1 |
| 15 | Slotted spring pin, Ø8 x 32 mm, Ø0.31 x 1.26 in. | 108135900 | 1 |
| 16 | Handle | - | 1 |
| 17 | Handle left, complete | 3310110076 | 1 |
| 18 | Slotted spring pin, Ø8 x 32 mm, Ø0.31 x 1.26 in. | 108135900 | 1 |
| 19 | Handle | - | 1 |
| 20 | Valve stern complete | 3310110078 | 1 |
| 21 | Valve stem | - | 1 |
| 22 | Inlet valve | - | 1 |
| 23 | O ring | 663211400 | 1 |
| 24 | O ring swivel | 663212800 | 1 |
| 25 | Swivel nut | 3310175800 | 1 |
| 26 | Swivel | 3310175700 | 1 |
| 27 | Main Valve, complete | 3310110073 | 1 |
| 28 | Circlip | 335214400 | 1 |
| 29 | O ring | 663212050 | 1 |
| 30 | O ring | 663213400 | 1 |
| 31 | Main valve | - | 1 |
| 32 | Sealing valve | - | 1 |
| 33 | AIRZET PK25 | 663990052 | 1 |
| 34 | O Ring | 663990053 | 1 |
| 35 | Circlip | 335213300 | 1 |
| 36 | Safety Label | 3310160200 | 1 |
| 37 | Lock Washer | 3121086100 | 1 |
| 38 | Sound power label | - | 1 |
| 39 | Intermediate part | 3310194800 | 1 |
| 40 | Retainer complete (H28, H32) | 3310110071 | 1 |
| 41 | Bush | 3310176700 | 2 |
| 42 | Plunger | 3310176900 | 2 |
| 43 | Spring | 3310176500 | 2 |
| 44 | Locking cylinder | 3310181800 | 1 |
| 45 | Retainer | - | 1 |
| 46 | Cover | 3310165500 | 1 |
| 47 | Retainer pin, complete (H28) | 3310110079 | 1 |
| 48 | Retainer pin | - | 1 |
| 49 | Spring pin | 108110351 | 1 |
| 50 | Retainer pin, complete (H32) | 3310110080 | 1 |
| 51 | Retainer pin | - | 1 |
| 52 | Spring pin | 108110351 | 1 |
| 53 | Product label, "R TEX" | - | 1 |
| 54 | Chuck bushing (H28) | 3310177500 | 1 |
| 55 | Chuck bushing (H32) | 3310177000 | 1 |
| 56 | Lock ring (H28, H32) | 3310178600 | 2 |
| 57 | Anvil block | 3310194700 | 1 |
| 58 | O ring, Liner + SW | 4090050700 | 1 |
| 59 | Cylinder | - | 1 |
| 60 | Spring pin | 108110350 | 1 |
| 61 | Data plate (Not available separately) | - | 1 |
| 62 | Drive screw | 244414400 | 2 |
| 63 | Cover | 3310170200 | 1 |
| 64 | Silencer, complete | 3310101847 | 1 |
| 65 | Flange screw | 147300032 | 10 |
| 66 | Flange nut | 9232020750 | 10 |
| 67 | Oring | 663213900 | 2 |
| 68 | Rtex front label | 3310240600 | 1 |
| 69 | Dimension label 32 x 160/152 | 3310190400 | 1 |
| 70 | Dimension label 28 x 160/152 | 3310190500 | 1 |
| 71 | Seperation wall back | 3310240500 | 1 |
| 72 | Silencer back | - | 1 |
| 73 | Silencer front | - | 1 |
| 74 | Seperation wall front | 3310240300 | 1 |
| 75 | Top Silencer complete | 3310101849 | 1 |
| 76 | Top cover front | - | 1 |
| 77 | Top cover back | - | 1 |
| 78 | Separation wall - top cover | 3310240800 | 1 |
| 79 | Seperation wall - top cover | 3310240900 | 1 |
| 80 | Flange screw | 147300032 | 2 |
| 81 | Flange nut | 9232020750 | 4 |
| 82 | Flange Screw M6 X 85 | 0147300097 | 2 |
| 83 | Trigger pin | 3310195300 | 2 |
| 84 | Spring pin Ø4x24 | 0108124200 | 2 |
| 85 | Flange screw | 0147300072 | 1 |
