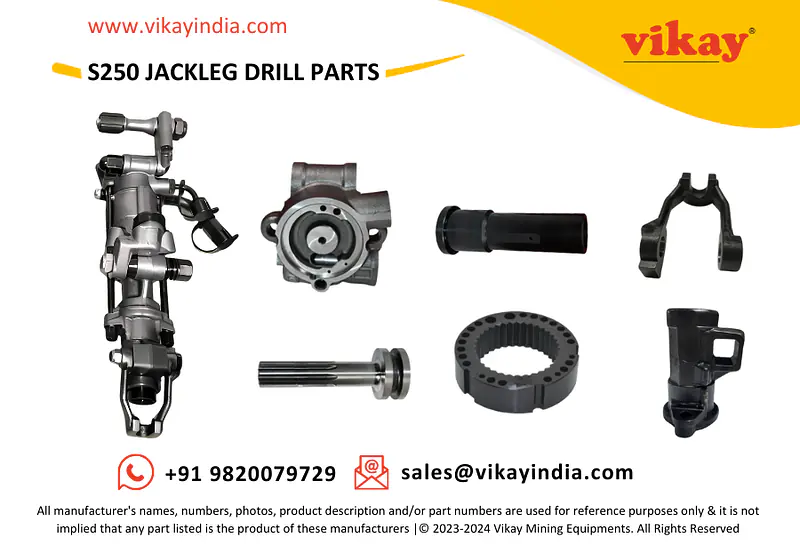

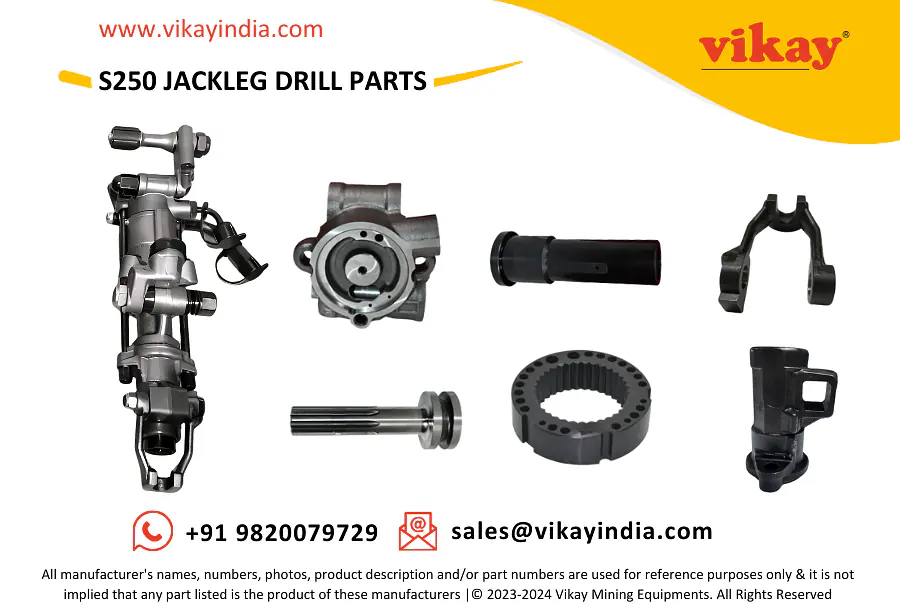

S250 Secan Jackleg Drill Parts
Regular price
₹0.00
S250 Secan Jackleg Drill Parts
Regular price
₹0.00
DESCRIPTION
Replacement Parts for Secan Jackleg Drill For Tunneling S250
Vikay Mining Equipments is a global supplier of new aftermarket replacement Parts for Secan Jackleg Drill For Tunneling S250 from India
S250 Secan Jackleg Drill Parts
| Sr. No | Description | Ref. Part No. | Part Number | Quantity |
| 1 | Nut, Hex | 5608539 | D8247 | 1 |
| 2 | Op. Handle Washer(Cotter washer) | 5601453 | 145M30 | 1 |
| 3 | Operating handle | 5602817 | A697B | 1 |
| 4 | O-RING (164811) | 5603224 | 1646503 | 8 |
| 5 | Control Spindle | 5604922 | B1183B | 1 |
| 6 | Control Body | 5601922 | B1180B | 1 |
| 8 | Twist Grip | 5609262 | C1518 | 1 |
| 9 | Sellok Pin-Long(inner) | 5600522 | 300822 | 2 |
| 10 | Spindle Nut(Nylock Nut) | 5605972 | 1218UF | 1 |
| 11 | Disc Spring | 5601562 | 149122MT | 1 |
| 12 | Sellok Pin-Long(Outer) | 5600822 | 300822 | 2 |
| 13 | Sellok Pin-Short(Dowel Pin) | 5600088 | 3008 | 2 |
| 14 | Operating Handle Adapter Nut | 5605652 | D1454D | 1 |
| 16.1 | Retract Valve | 5608576.1 | C1514 | 1 |
| 16.2 | Sleeve Valve | 5608576.2 | C1515 | 11 |
| 17 | O Ring (1646503) | 5603224 | 164811 | 8 |
| 18 | Plunger Spring | 5605152 | D1424 | 1 |
| 19 | Sleeve spring | 5605153 | D1425 | 1 |
| 20 | Plug Plunger | 5605155 | D1427 | 1 |
| 21 | Circlip | 5605529 | 20015 | 1 |
| 22 | O Ring (1643903) | 5600224 | 164231 | 6 |
| 23 | Water Valve Spring Cap | 5602462 | C1521PC1 | 1 |
| 24 | Water valve Spring | 5607152 | D1406 | 1 |
| 25 | O Ring (1645704) | 5601244 | 164521 | 1 |
| 26 | Valve Poppet | 5604463 | C1522PC1 | 1 |
| 27 | O Ring (1648102) | 5603119 | 164301 | 1 |
| 28 | Housing Water Valve | 5602922 | B1181PC4 | 1 |
| 29 | Seat, Water Valve | 5604872 | D1673 | 1 |
| 30 | Water Valve Seat Retainer | 5605523 | C2144 | 1 |
| 31 | Water Tube | 5604218 | C1574A | 1 |
| 32 | Water Tube Spacer | 5601864 | D1674 | 1 |
| 33 | Seat, Water Tube | 5601866 | D1675 | 1 |
| 34 | Back Head | 5604430 | A660 | 1 |
| 36 | Plunger, Throttle | 5604096 | D1383 | 1 |
| 37 | Throttle valve plunger Spring | 5602993 | D1382 | 1 |
| 38 | Plug (screw) | 5602887 | 2422P | 1 |
| 39 | Water Stem Thrust Washer | 5603667 | S2487 | 1 |
| 40 | Seal Water Inlet | 5603545 | D1402 | 1 |
| 41 | Water Inlet Screen | 5604380 | C1272 | 1 |
| 42 | Throttle valve Key | 5602995 | D1384 | 1 |
| 43 | Throttle Valve | 5601665 | B1176 | 1 |
| 44 | Throttle Valve Handle | 5601633 | C1509 | 1 |
| 45 | Disc Spring | 5601562 | 149163MT | 1 |
| 46 | Throttle valve Handle Nut | 5602997 | D1385 | 1 |
| 47 | Side Rod | 5601631 | C1572C | 2 |
| 49 | Side Rod Nut | 5601900 | D1388 | 2 |
| 50 | Pawl Plunger Spring | 5602272 | D1611C | 4 |
| 51 | Pawl Plunger (Steel) | 5605422 | S2134 | 4 |
| 52 | PAWL | 5608827 | D6177 | 4 |
| 53 | Rifle Bar (B1173R) | 5604616 | B5053 | 1 |
| 54 | Ratchet Ring | 5601822 | B1170 | 1 |
| 55 | Valve Box | 5600658 | A745 | 1 |
| 56 | Inner Valve | 5609572 | C1648 | 1 |
| 57 | Valve Plug | 5600558 | A744 | 1 |
| 58 | Valve Box Pin(D1397) | 5604747 | S2128 | 1 |
| 59 | Spindle Nut | 5608449 | C1527 | 1 |
| 60 | Spindle Lock Washer | 5601262 | C1519 | 1 |
| 61 | Spindle Spring | 5602862 | C1571 | 1 |
| 62 | Spindle Thrust Washer | 5603144 | D1392 | 1 |
| 63 | Cylinder Lug Bushing | 5604362 | C1523 | 1 |
| 64 | Lock Washer Key | 5607352 | D1426 | 2 |
| 65.1 | Pin Spindle Locating | 5603922 | B1182A | 1 |
| 66 | Clevis Body Spindle Cone | 5609042 | D1398 | 1 |
| 67 | Clevis Body | 5601417 | A693A | 1 |
| 68 | Cl. Body Spindle Nut- Nylock Nut | 5603912 | D1982 | 1 |
| 69 | Hose Spud | 5609708 | 1356588 | 1 |
| 70 | Air Inlet Screen(Stainer)) | 5605079 | 355538A | 1 |
| 71 | O Ring | 5600253 | 164999 | 1 |
| 72 | Air Line Cap(Rubber cap) | 5604625 | C1811A | 1 |
| 73 | Air Bend | 5606362 | C1525N | 1 |
| 74 | Air Bend Nut | 5606372 | C1526 | 1 |
| 75 | Air Bend Copper Washer | 5602172 | D1601 | 1 |
| 76 | O Ring (1648114) | 5608233 | 164731 | 1 |
| 77 | Rifle Nut | 5609162 | C1508 | 1 |
| 78 | Piston | 5605443 | B2334 | 1 |
| 79 | Ferrule, Jackleg Cylinder Rubber(9001093) | 5604012 | D2105 | 1 |
| 80 | Front Cylinder Washer Liner | 5608252 | C1517 | 1 |
| 83 | Water Inlet Adapter Spud(D2441) | 5603993 | 1358356 | 1 |
| 84 | Water Stem Cap-Rubber Cap | 5604626 | C1811W | 1 |
| 85a | Water Stem Threaded | 5608192 | C1809 | 1 |
| 86 | O Ring (164 731) | 5603224 | 164811 | 2 |
| 87 | Nut Water Stem | 5602823 | S2141 | 1 |
| 99 | Chuck Nut | 5603262 | C1512 | 1 |
| 102 | Rotation Chuck | 5609822 | B1178 | 1 |
| 103a | Chuck Insert (22 mm) | 5609282 | C1418A | 1 |
| 106 | Steel Retainer Pin Bushing | 5606137 | D6205 | 2 |
| 107 | Front Head | 5609063 | A2598A | 1 |
| 108 | Steel Retainer Pin | 5609107 | C6908 | 1 |
| 109 | Steel Retainer Pin Nut(D1932) | 5603402 | 12812UF | 1 |
| 110a | Steel Retainer | 5600063 | A2599 | 1 |
