Second Stage Cylinder & Piston IR 7100 Parts
Regular price
₹0.00
Second Stage Cylinder & Piston IR 7100 Parts
Regular price
₹0.00
DESCRIPTION
Second Stage Cylinder & Piston for Ingersoll Rand Type 30 - Model 7100
PFC - Parts for Compressor is a global supplier of OEM Quality New Aftermarket Replacement Air Compressor Spare Parts for - Second Stage Cylinder & Piston from India.

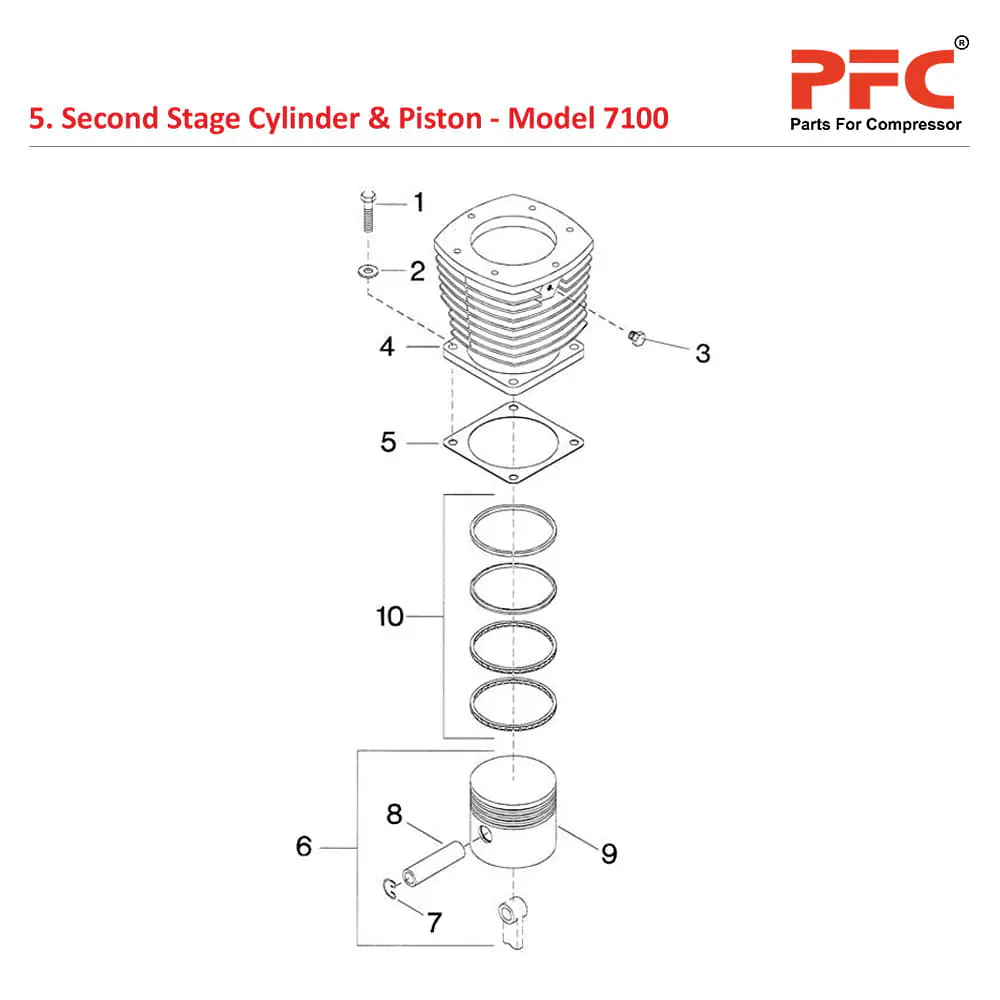

Second Stage Cylinder & Piston
| Sr.No | Ref. Part Number | Description | Qty |
| 5-1 | 95053567 | Capscrew, Hex Head - 1/2-13 X 1-1/4" | 4 |
| 5-2 | 95674701 | Gasket, copper washer - 1/2" | 4 |
| 5-3 | 95252409 | Plug, Pipe, Hex Head - 1/4" | 1 |
| 5-4 | 32174997 | Cylinder, Air- Second Stage | 1 |
| 5-5 | 30294235 | Gasket, Flange | 1 |
| 5-6 | 32223752 | Piston, Air - Second Stage - Complete | 1 |
| 5-7 | 30288450 | – Ring Lock | 2 |
| 5-8 | 32220592 | – Pin, Piston | 1 |
| 5-9 | NSS | – Piston, Air - 3" | 1 |
| 5-10 | 32194276 | Set, Ring - 3" | 1 |
