DESCRIPTION
TEX 03 PS Chipping Hammer Spare Parts
Vikay is a worldwide distributor of TEX 03 PS Chipping Hammer Spare Parts suitable for Atlas Copco TEX 03 PS Chipping Hammer from India.

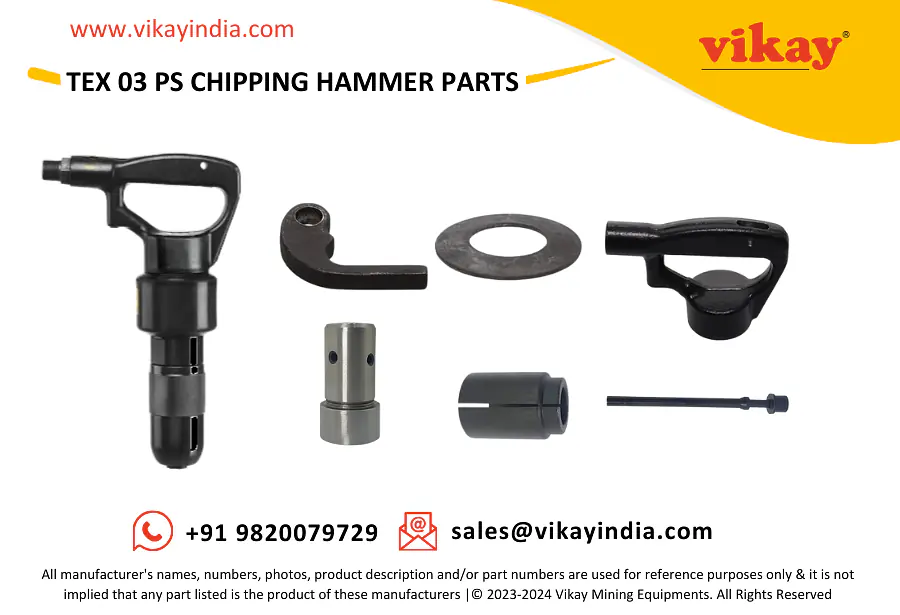

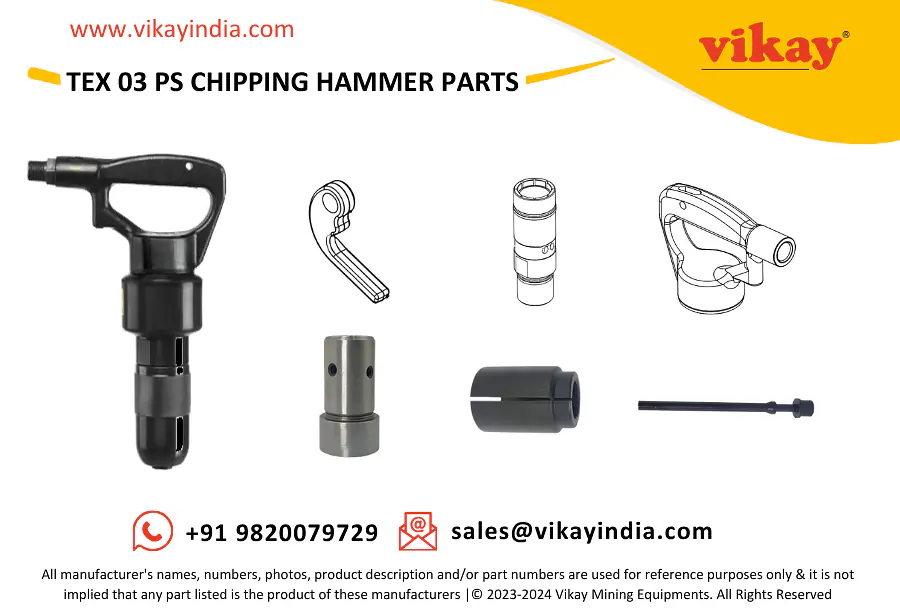

TEX 03 PS Atlas Copco Chipping Hammer Parts
| No. | Description | Part number | Quantity |
| 1(2-4) | Handle, complete | 3310162200 | 1 |
| 2 | Handle | - | 1 |
| 3 | Plug | 686612600 | 1 |
| 4 | Bushing | - | 1 |
| 5 | Valve stem | 3310162500 | 1 |
| 6 | Inlet valve | 3310113500 | 1 |
| 7 | Spring | 3310118800 | 1 |
| 8 | Nipple | 3310162100 | 1 |
| 9 | Trigger | 3310158400 | 1 |
| 10 | Spring pin | 108135500 | 1 |
| 11 | Data plate | - | 1 |
| 12 | Drive screw | - | 2 |
| 13 | Spacer ring | 3310158000 | 1 |
| 14 | Cylinder | 3310157800 | 1 |
| 15 | Cover | 3310158200 | 1 |
| 16 | Piston | 3310157900 | 1 |
| 17 | Guide plate | 3310158100 | 1 |
| 18 | Disc spring | 384338000 | 3 |
| 19 | O-ring | 663613400 | 1 |
| 20 | O-ring | 663213300 | 1 |
| 21 | Cap | 3310118200 | 1 |
| 22 | Buffer | 3310093600 | 1 |
| 23 | Silencer | 3310158300 | 1 |
| 24 | Noise level label | - | 1 |
| 25 | Safety label | 3310160200 | 1 |
| 26 | Product label | 3310162400 | 1 |
| 27 | Product label | 690120400 | 1 |
Hexagon 19 x 50 mm (¾" x 2")
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 240 | 300 | 0.8 | 3083322000 |
| - | 440 | 500 | 1.3 | 3083322100 | ||
| 2 | Narrow chisel | - | 240 | 300 | 0.8 | 3083322200 |
| - | 440 | 500 | 1.3 | 3083322300 | ||
| 3 | Wide chisel | 60 | 190 | 250 | 0.7 | 3083322400 |
| 4 | Shaft for bush hammer | - | 80 | 140 | 0.4 | 3083322500 |
| 6 | Bush hammer, TC head | 40 | - | - | 0.5 | 3083322600 |
| 7 | Bush hammer, TC head | 40 | - | - | 0.5 | 3083322700 |
| 8 | Bush hammer, steel head | 32 | - | - | 0.2 | 3083416300 |
Hexagon ¾" x 2" (19 x 50 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - - | 91⁄2 17 | 12 20 | 13⁄4 27⁄8 | 3083322000 |
| 3083322100 | ||||||
| 2 | Narrow chisel | - - | 91⁄2 17 | 12 20 | 13⁄4 27⁄8 | 3083322200 |
| 3083322300 | ||||||
| 3 | Wide chisel | 23⁄8 | 71⁄2 | 10 | 11⁄2 | 3083322400 |
| 4 | Shaft for bush hammer | - | 31⁄8 | 51⁄2 | 7⁄8 | 3083322500 |
| 6 | Bush hammer, TC head | 11⁄2 | - | - | 11⁄8 | 3083322600 |
| 7 | Bush hammer, TC head | 11⁄2 | - | - | 11⁄8 | 3083322700 |
| 8 | Bush hammer, steel head | 11⁄4 | - | - | 1⁄2 | 3083416300 |
Claw coupling
| No. | Description | Part number | Quantity |
| 1(2-3) | Claw coupling, complete (Standard G1⁄2") | 9000030500 | 1 |
| 2 | Claw coupling | - | 1 |
| 3 | Seal | 9000000000 | 1 |
