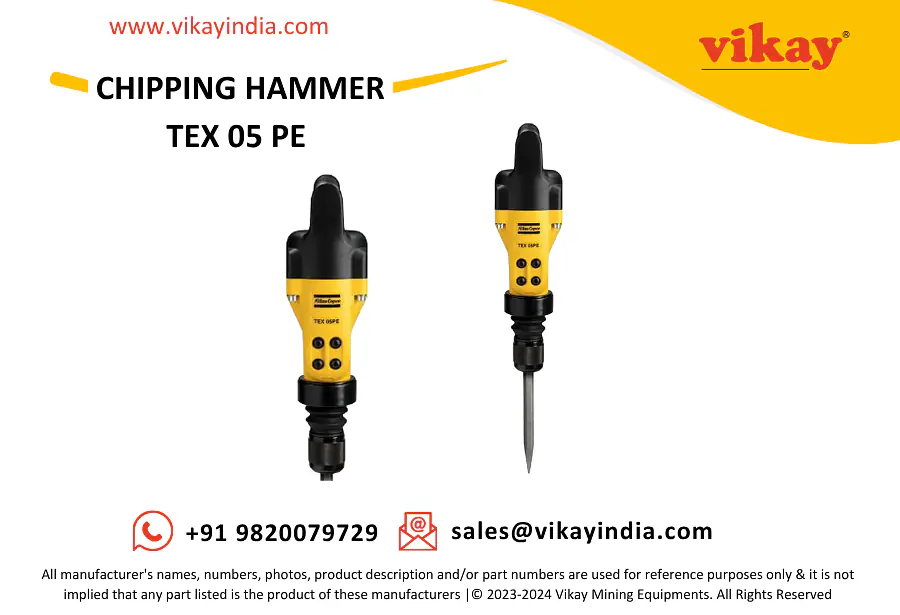

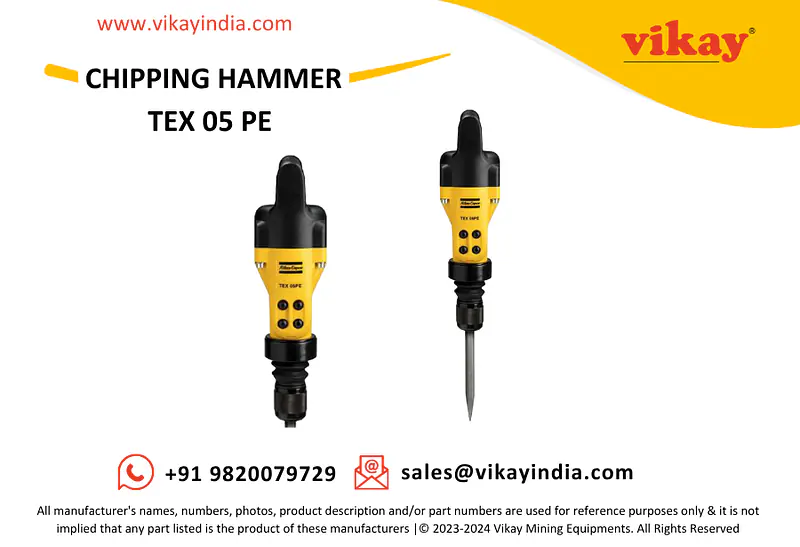

TEX 05 PE Atlas Copco Chipping Hammer
Regular price
₹1.00
TEX 05 PE Atlas Copco Chipping Hammer
Regular price
₹1.00
DESCRIPTION
TEX 05 PE Atlas Copco Chipping Hammer
Vikay is a worldwide distributor of TEX 05 PE Atlas Copco Chipping Hammer - 8461021910 suitable for light duty chipping and scaling work, renovation and conversion work, demolition, kiln stripping from India.
Applications
- Light duty chipping and scaling work
- Renovation and conversion work
- Demolition
- Kiln stripping
Features:
- Full canopy vibro-reduction (TEX 05, 07, 09 and 12)
- Noise-reduction
- Air cushioned piston (TEX 05, 07, 09 and 12)
- Easy handling and positioning
Technical Data
| Pneumatic hammers | TEX 05PE | |
| Weight | kg | 6,5 |
| Length | mm | 450 |
| Air consumption | l/s | 10 |
| Impact rate | blows/min | 2640 |
| Vibration level 3 axes (ISO 28927-10) | m/s² | 2,4 |
| Sound power level guaranteed (2000/14/EC) | Lw, dB(A) | 105 |
| Sound pressure level (ISO 11203) | Lp, r=1m | 87 |
| Tool retainer | cap | |
| Shank size HEX | mm | 19x50 |
| Part number (HEX shank) | 8461021910 | |
| Shank size round shank | mm | - |
| Part number (R) | - |
Suitable couplings:
| TEX 05PE | Atlas Copco Standard | 9000030500 |
| TEX 09 & 12 | Atlas Copco Standard | 9000030600 |
| Atlas Copco Standard with strainer | 9000030601 | |
| US standard | 9001000506 |
