DESCRIPTION
TEX 09 PS KL Pick Hammer Spare Parts
Vikay is a worldwide distributor of TEX 09 PS KL Pick Hammer Spare Parts suitable for Atlas Copco TEX 09 PS KL Pick Hammer from India.

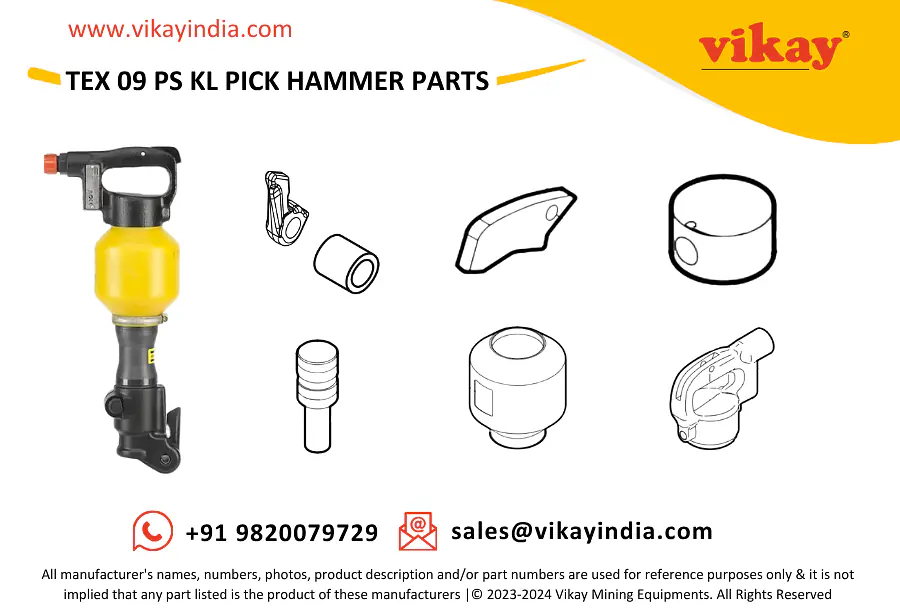

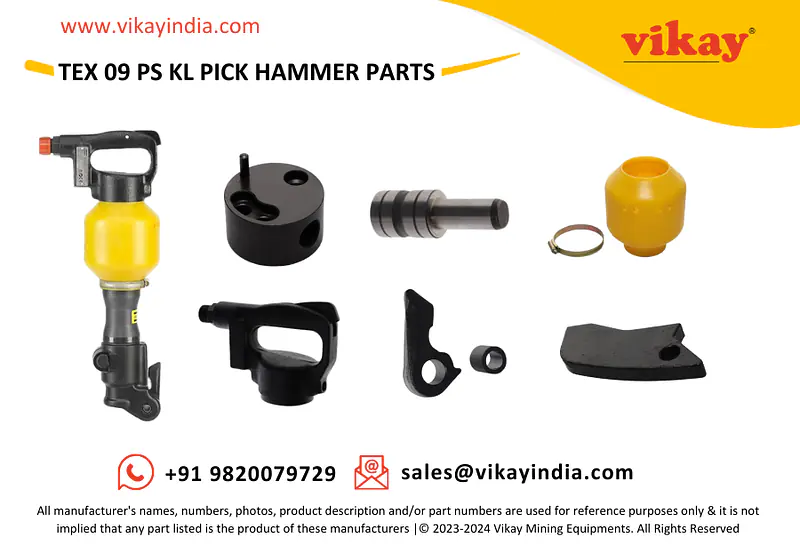

TEX 09 PS KL Atlas Copco Pick Hammer Parts
| No. | Description | Part number | Quantity |
| 1(2-3,4,7-10) | Fronthead, complete | 3310088780 | 1 |
| 2 | Fronthead housing | - | 1 |
| 3 | Plunger | 3310089300 | 1 |
| 4(5-6) | Retainer set | 3310089080 | 1 |
| 5 | Retainer | 1 | |
| 6 | Bushing | 3310089100 | 1 |
| 7 | Spring | 3310089400 | 1 |
| 8 | Connex pin (16 x 50 mm 0.63 x 1.97 in.) | 108169105 | 1 |
| 9 | Bolt | 3310038400 | 1 |
| 10 | Nut | 3310031200 | 1 |
| 11 | Chuck (Hexagonal 22 x 82.5 mm 7⁄8 x 31⁄4 in.) | 3310112400 | 1 |
| 12 | Label | 690110102 | 1 |
| 13 | Cylinder | 3310112500 | 1 |
| 14 | Piston | 3310112600 | 1 |
| 15(16-17) | Cover, complete | 3310081080 | 1 |
| 16 | Cover | - | 1 |
| 17 | Grooved pin (4 x 15 mm 0.16 x 0.59 in.) | 106095102 | 1 |
| 18 | Main valve | 3310081100 | 1 |
| 19(20-21) | Silencer, complete | 3310112780 | 1 |
| 20 | Hose clamp (60-75 mm 2.36-2.95 in.) | 347611400 | 1 |
| 21 | Silencer | - | 1 |
| 22 | Sound power label | - | 1 |
| 23 | Spring pin (12 x 100 mm 0.47 x 3.94 in.) | 108169017 | 1 |
| 24(25-33) | Backhead, complete | 3310112880 | 1 |
| 25 | Backhead housing | - | 1 |
| 26 | Trigger | 3310112900 | 1 |
| 27 | Spring pin (8 x 24 mm 0.31 x 0.94 in.) | 108135500 | 1 |
| 28 | O-ring | - | 1 |
| 29 | Pin (8 x 80 mm 0.31 x 3.15 in.) | 102038200 | 1 |
| 30 | Inlet valve | - | 1 |
| 31 | Inlet valve rod | 3310113400 | 1 |
| 32 | Spring | - | 1 |
| 33 | Nipple | 3310113100 | 1 |
| 34 | Drive screw | 244414400 | 2 |
| 35 | Data plate | - | 1 |
| 36 | Safety label | 3310160200 | 1 |
| 37 | Eject warning label | 3310157200 | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 | ||
| 3 | Wide chisel | 75 | 380 | 475 | 2.2 | 3083324600 |
| 4 | Asphalt cutter | 125 | 380 | 475 | 3.0 | 3083306900 |
| 5 | Digging chisel | 75 | 450 | 545 | 3.3 | 3083324700 |
| 6 | Digging spade | 120 | 400 | 495 | 3.8 | 3083324800 |
| 7 | Shaft for tamping pad | - | 310 | 405 | 1.7 | 3083325100 |
| 8 | Tamping pad, round | Ø175 | - | - | 7.6 | 3083325210 |
| 9 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 10 | Driver pad, round | Ø65 | - | - | 1.9 | 3317806012 |
| Ø100 | - | - | 2.6 | 9245281790 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083326500 |
| - | 450 | 535 | 3083326510 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083326600 |
| - | 450 | 535 | 3083326610 |
US standard hexagon 7⁄8 x 31⁄4 in. (22 x 82.5 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - - - - | 14 18 24 36 | 18 21 28 40 | 3.3 4.0 5.1 7.3 | 3083405000 |
| 3083405010 | ||||||
| 3083405020 | ||||||
| 3083405030 | ||||||
| 2 | Narrow chisel | - - - - | 14 24 18 36 | 18 28 21 40 | 3.5 5.1 4.0 7.3 | 3083330300 |
| 3083330400 | ||||||
| 3083405110 | ||||||
| 3083405130 | ||||||
| 3 | Wide chisel | 3 3 3 3 | 14 18 24 36 | 18 21 28 40 | 4.6 4.4 5.5 7.7 | 3083330500 |
| 3083405210 | ||||||
| 3083405220 | ||||||
| 3083405230 | ||||||
| 4 | Asphalt cutter | 5 | 12 | 16 | 6.2 | 3083405300 |
| 5 | Digging chisel | 3 | 14 | 18 | 7.1 | 3083330600 |
| 6 | Digging spade | 5 | 13 | 17 | 8.6 | 3083330700 |
| 9 | Shaft for tamping pad | -7 | 8 - | 12 - | 2.9 13.4 | 3083405800 |
| 3083323900 | ||||||
| 8 | Tamping pad, round | Ø7 | - | - | 16.8 | 3083325210 |
| 9 | Tamping pad, square | 7 | - | - | 13.4 | 3083323900 |
| 10 | Driver pad, round | Ø4 Ø3 | - - | - - | 5.7 4.2 | 9245281790 |
| 3371806012 |
Round 1 x 3 in. (25 x 75 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Part number |
| 1 | Moil point | - | 13.0 | 16.3 | 3083326500 |
| - | 18.0 | 21.0 | 3083326510 | ||
| 2 | Narrow chisel | - | 13.0 | 16.3 | 3083326600 |
| - | 18.0 | 21.0 | 3083326610 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete | 9001000506 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001000515 | 1 |
