DESCRIPTION
TEX 10 PS KL Pick Hammer Spare Parts
Vikay is a worldwide distributor of TEX 10 PS KL Pick Hammer Spare Parts suitable for Atlas Copco TEX 10 PS KL Pick Hammer from India.

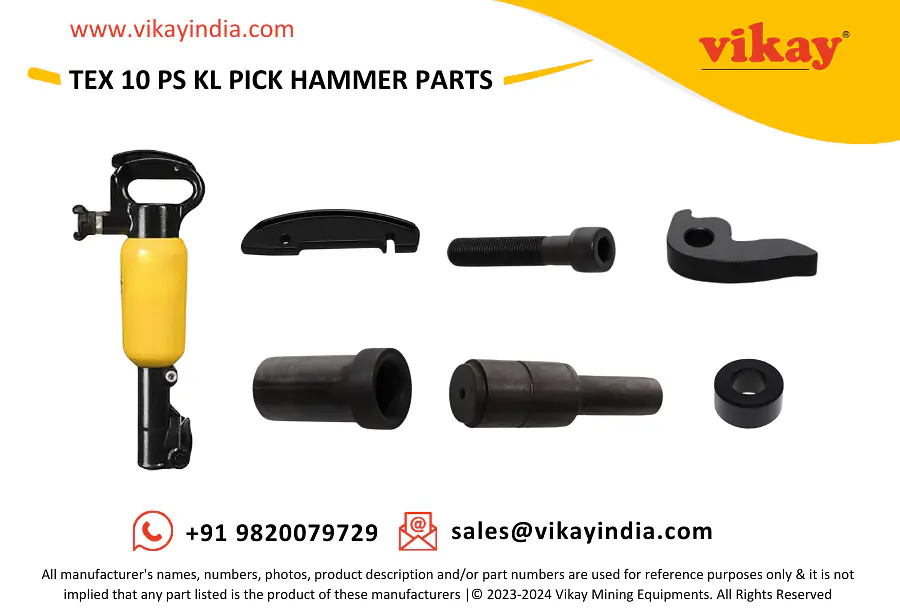

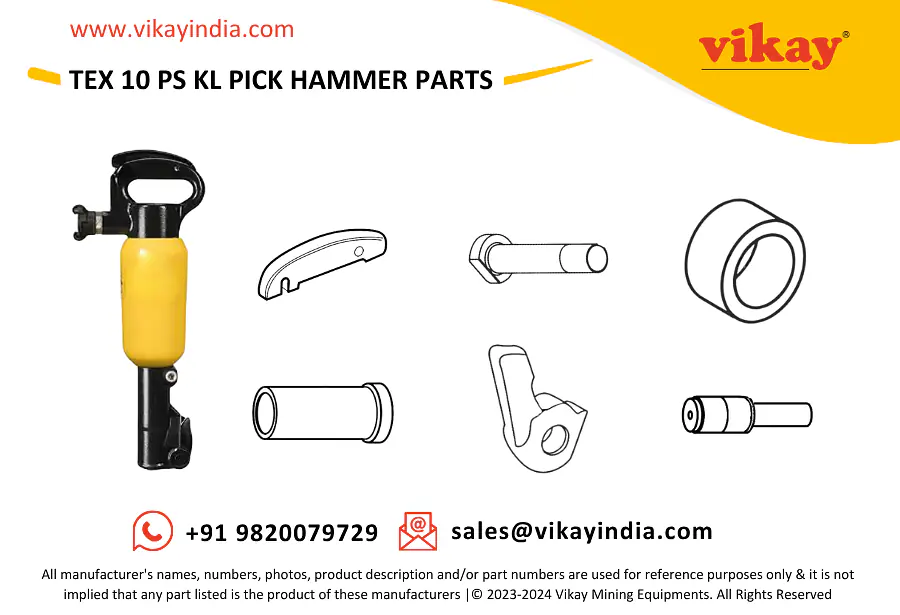

TEX 10 PS KL Atlas Copco Pick Hammer Parts
| No. | Description | Part number | Quantity |
| 1(2-3) | Handle, complete | 3362260013 | 1 |
| 2 | Handle | - | 1 |
| 3 | Bushing | 3360312661 | 1 |
| 4 | O-ring (5 x 1.5 mm 70 SHORE 0.20 x 0.06 in.) | 663913600 | 1 |
| 5 | Valve stem | 3360164485 | 1 |
| 6 | Trigger | 3360164486 | 1 |
| 7 | Data plate | - | 1 |
| 8 | Screw | 244414400 | 2 |
| 9 | Nipple | 9000034300 | 1 |
| 10 | Spring | 3310137900 | 1 |
| 11 | Spring pin (8 x 28 mm DIN 1481) | 108135700 | 1 |
| 12 | Ball | 3310138000 | 1 |
| 13 | Nut | 3361854610 | 1 |
| 14 | Lock washer | 3362264444 | 1 |
| 15 | Disc spring | 384343700 | 1 |
| 16 | O-ring (47.3 x 2.62 mm 1.86 x 0.10 in.) | 663210155 | 1 |
| 17 | Valve housing | 3360991322 | 1 |
| 18 | Main valve | 3360164684 | 1 |
| 19 | Cover | 3362260010 | 1 |
| 20 | Cylinder | 3362260006 | 1 |
| 21 | Piston | 3360923104 | 1 |
| 22 | Tool chuck (Hexagonal 22 x 82.5 mm 7⁄8 x 31⁄4 in.) | 3360164480 | 1 |
| 23(24-32) | Front head, complete | 3360070488 | 1 |
| 24 | Front head | 3360312663 | 1 |
| 25 | Tool retainer | 3360994524 | 1 |
| 26 | Pin | 3360312522 | 1 |
| 27 | Bushing (Inner diameter = 15 mm 0.59 in.) | 3360164489 | 1 |
| 28 | Bushing (Inner diameter = 13 mm 0.51 in.) | 3360164490 | 1 |
| 29 | Plunger | 3360312526 | 1 |
| 30 | Spring | 3310137800 | 1 |
| 31 | Hex socket screw | 211516185 | 1 |
| 32 | Lock nut | 292140800 | 1 |
| 33 | Silencer | 3310134500 | 1 |
| 34 | Label | 690135600 | 1 |
| 35 | Sound power label | - | 1 |
| 36 | Spring pin (5 x 24 mm DIN 1481) | 108129800 | 1 |
| 37 | Safety label | 3310160200 | 1 |
| 38 | Eject warning label | 3310157200 | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083 3242 00 |
| - | 1000 | 1095 | 3.6 | 3083 3243 00 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083 3244 00 |
| - | 1000 | 1095 | 3.6 | 3083 3245 00 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083 3265 00 |
| - | 450 | 535 | 3083 3265 10 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083 3266 00 |
| - | 450 | 535 | 3083 3266 10 |
Round 1 x 3 in. (25 x 75 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Part number |
| 1 | Moil point | - | 13.0 | 16.3 | 3083 3265 00 |
| - | 18.0 | 21.0 | 3083 3265 10 | ||
| 2 | Narrow chisel | - | 13.0 | 16.3 | 3083 3266 00 |
| - | 18.0 | 21.0 | 3083 3266 10 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000 0306 01 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000 0000 10 | 1 |
| 4 | Seal | 9000 0000 00 | 1 |
| 5(6-7) | Claw coupling, complete | 9000 0306 00 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000 0000 00 | 1 |
| 8(9-10) | Claw coupling, complete | 9001 0005 06 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001 0005 15 | 1 |
