DESCRIPTION
TEX 10 PS Pick Hammer Spare Parts
Vikay is a worldwide distributor of TEX 10 PS Pick Hammer Spare Parts suitable for Atlas Copco TEX 10 PS Pick Hammer from India.

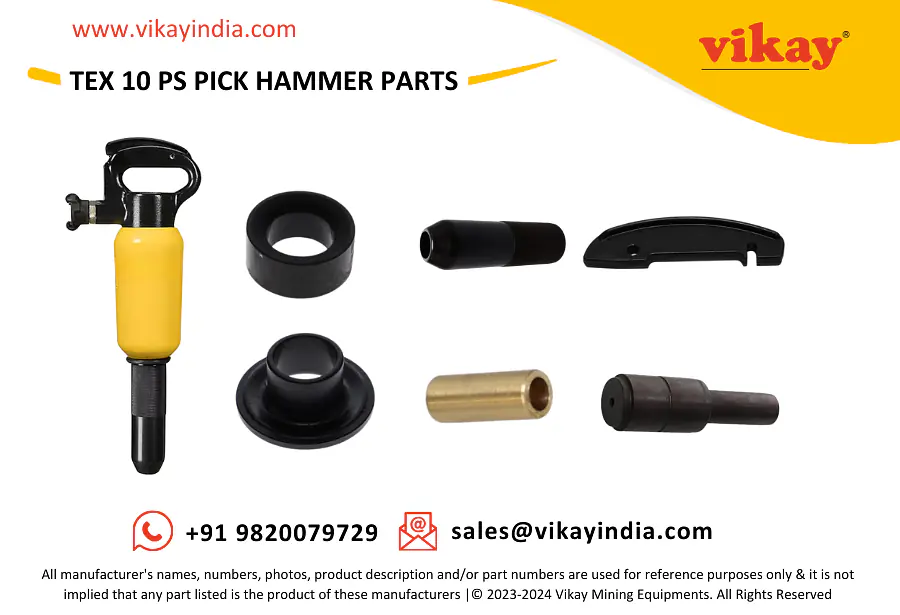

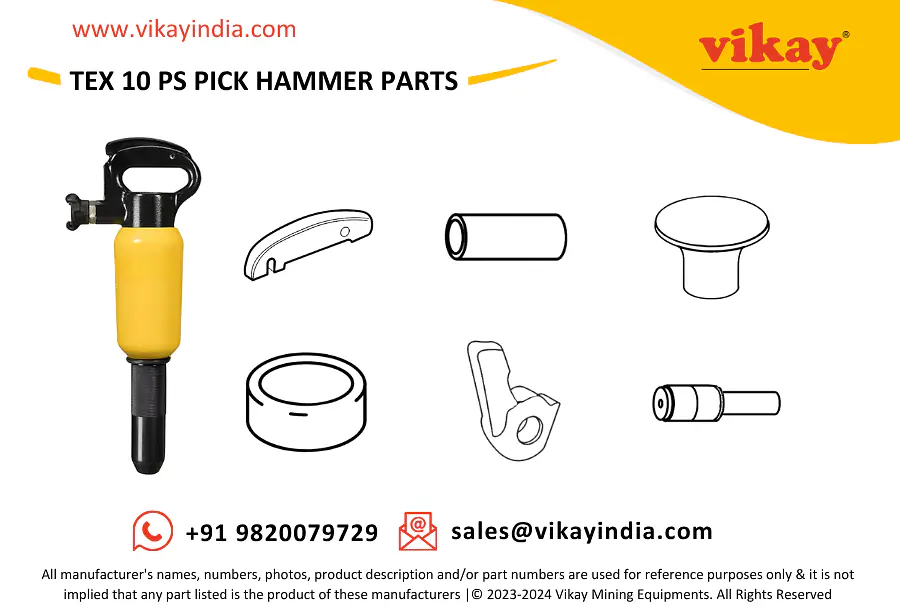

TEX 10 PS Atlas Copco Pick Hammer Parts
| No. | Description | Part number | Quantity |
| 1(2-3) | Handle, complete | 3362260013 | 1 |
| 2 | Handle | - | 1 |
| 3 | Bushing | 3360312661 | 1 |
| 4 | O-ring (5 x 1.5 mm 70 SHORE 0.20 x 0.06 in.) | 663913600 | 1 |
| 5 | Valve stem | 3360164485 | 1 |
| 6 | Trigger | 3360164486 | 1 |
| 7 | Data plate | 1 | |
| 8 | Screw | 244414400 | 2 |
| 9 | Nipple | 9000034300 | 1 |
| 10 | Spring | 3310137900 | 1 |
| 11 | Spring pin (8 x 28 mm DIN 1481) | 108135700 | 1 |
| 12 | Ball | 3310138000 | 1 |
| 13 | Nut | 3361854610 | 1 |
| 14 | Lock washer | 3362264444 | 1 |
| 15 | Disc spring | 384343700 | 1 |
| 16 | O-ring (47.3 x 2.62 mm 1.86 x 0.10 in.) | 663210155 | 1 |
| 17 | Valve housing | 3360991322 | 1 |
| 18 | Main valve | 3360164684 | 1 |
| 19 | Cover | 3362260010 | 1 |
| 20 | Cylinder | 3362260006 | 1 |
| 21 | Piston | 3360923104 | 1 |
| 22 | Tool chuck (Hexagonal 22 x 82.5 mm 7⁄8 x 31⁄4 in.) | 3360164480 | 1 |
| 23 | Buffer | 3360164546 | 1 |
| 24 | Stop ring | 3362264392 | 1 |
| 25 | Cap | 3360187185 | 1 |
| 26 | Silencer | 3310134500 | 1 |
| 27 | Label | 690135600 | 1 |
| 28 | Sound power label | - | 1 |
| 29 | Spring pin (5 x 24 mm DIN 1481) | 108129800 | 1 |
| 30 | Safety label | 3310160200 | 1 |
| 31 | Eject warning label | 3310157200 | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083326500 |
| - | 450 | 535 | 3083326510 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083326600 |
| - | 450 | 535 | 3083326610 |
Round 1 x 3 in. (25 x 75 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Part number |
| 1 | Moil point | - | 13.0 | 16.3 | 3083326500 |
| - | 18.0 | 21.0 | 3083326510 | ||
| 2 | Narrow chisel | - | 13.0 | 16.3 | 3083326600 |
| - | 18.0 | 21.0 | 3083326610 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete | 9001000506 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001000515 | 1 |
