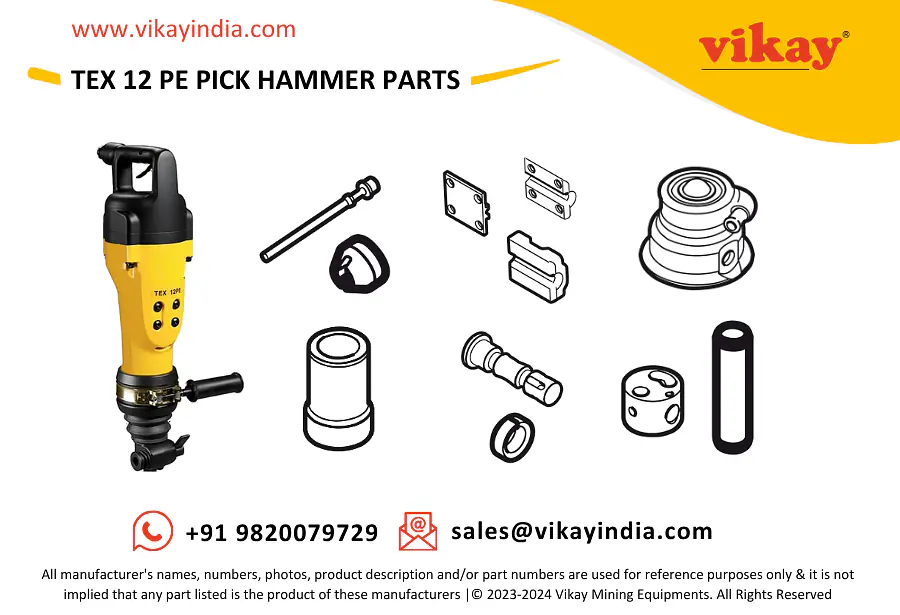

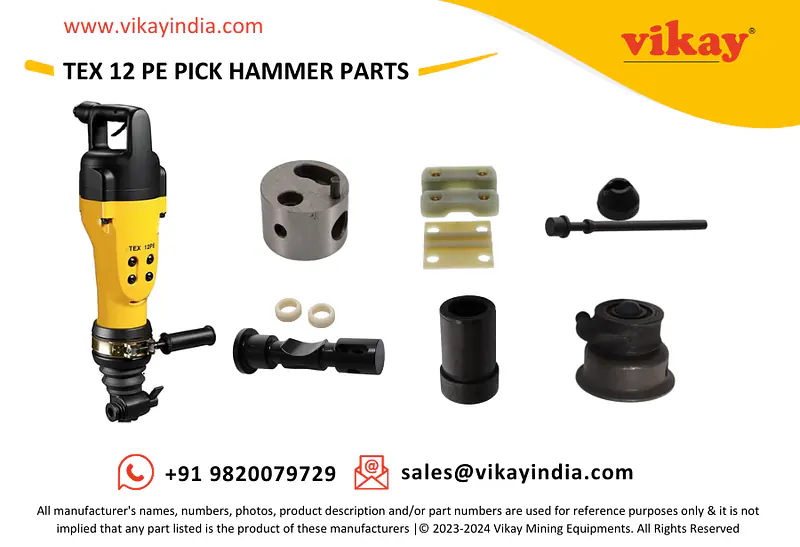

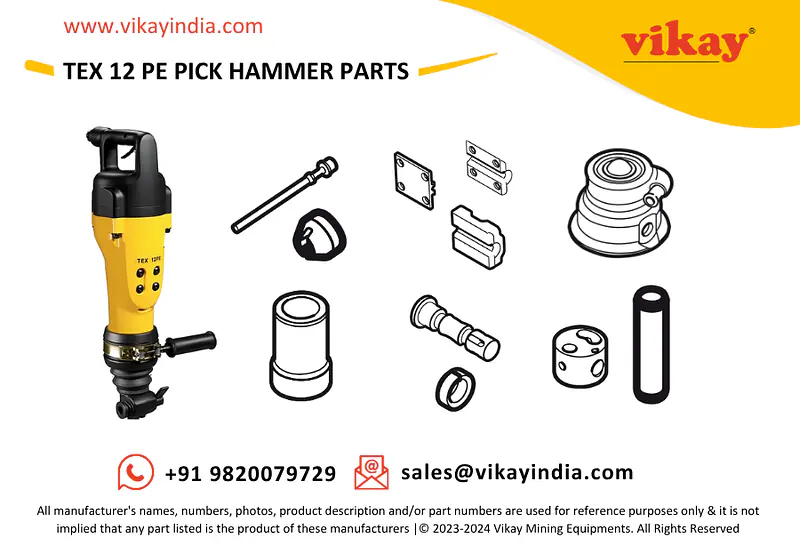

TEX 12 PE Pick Hammer Spare Parts
Vikay is a worldwide distributor of TEX 12 PE Pick Hammer Spare Parts suitable for Atlas Copco TEX 12 PE Pick Hammer from India.
| No. | Description | Part number | Quantity |
| 1(2-3) | Tool retainer, complete | 3310141380 | 1 |
| 2 | Tool retainer | - | 1 |
| 3 | Bush | 3310141400 | 2 |
| 4 | Lever | 3310141500 | 1 |
| 5 | Spring | 3310148600 | 1 |
| 6 | Spring pin | 108110316 | 1 |
| 7 | Spring pin | 108110317 | 1 |
| 8 | Chuck, hexagon (For TEX 12PE H22 x 82.5 mm) | 3310131600 | 1 |
| 9 | Chuck, round (For TEX 12PE R25 x 75 mm | 3310131700 | 1 |
| 10(11-12) | Cylinder, complete | 3310139980 | 1 |
| 11 | Cylinder | - | 1 |
| 12 | Plug | 3310147300 | 1 |
| 13 | Intermediate part | 3310087000 | 1 |
| 14 | Lock ring | 3310087100 | 1 |
| 15 | Piston | 3310139000 | 1 |
| 16 | Bellow | 3310141200 | 1 |
| 17 | Clamping ring | 3310140700 | 1 |
| 18(19-20) | Silencer, complete | 3310140480 | 1 |
| 19 | Silencer | - | 1 |
| 20 | Bush | 3310155500 | 4 |
| 21 | Ring | 1 | |
| 22 | Hexagon socket screw | 215000635 | 4 |
| 23 | Sound label | - | 1 |
| 24 | Label | 3310155300 | 1 |
| 25 | Label | 690110102 | 1 |
| 26 | Buffer ring | 3310151580 | 1 |
| 27 | O-ring | 663614300 | 1 |
| 28 | Hexagon socket screw (MC6S 8 x 60 8.8) | 211110224 | 4 |
| 29 | Link arm | 3310140900 | 1 |
| 30(31-33) | Bearing, complete | 3310141080 | 1 |
| 31 | Upper plate | - | 1 |
| 32 | Lower plate | - | 1 |
| 33 | Thread insert | - | 4 |
| 34 | Hexagon socket screw | 215000636 | 4 |
| 35(36-37) | Cover, complete | 3310138680 | 1 |
| 36 | Cover | - | 1 |
| 37 | Pin | 102024200 | 1 |
| 38 | Main valve | 3310138700 | 1 |
| 39 | Valve house | 3310144780 | 1 |
| 40 | Conical spring | 3310144500 | 1 |
| 41 | Spring seat | 3310154500 | 1 |
| 42 | Pin | 3310159900 | 1 |
| 43 | O-ring | 663211169 | 1 |
| 44 | Back head | 3310140100 | 1 |
| 45 | Trigger | 3310142100 | 1 |
| 46 | Spiral pin | 108332800 | 1 |
| 47(48-49) | Valve stem, complete | 3310128180 | 1 |
| 48 | Valve stem | - | 1 |
| 49 | Inlet valve | 3310113500 | 1 |
| 50 | Spring | 3310113000 | 1 |
| 51 | Nipple (3⁄4 in. -14 NTP) | 3310113101 | 1 |
| 52 | Screw | 244414400 | 2 |
| 53 | Data plate | - | 1 |
| 54(55-58) | Hose, complete | 3310155490 | 1 |
| 55 | Seal | 3310155600 | 1 |
| 56 | Nipple | - | 1 |
| 57 | Spring band clamp | 347010205 | 2 |
| 58 | Hose | - | 1 |
| 59 | Handle | 3310155780 | 1 |
| 60 | Label | 3310155302 | 1 |
| 61 | Label | 8915002143 | 1 |
| 62 | Bushing | 3310157500 | 1 |
| 63 | Safety Label | 3310160200 | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 | ||
| 3 | Wide chisel | 75 | 380 | 475 | 2.2 | 3083324600 |
| 4 | Asphalt cutter | 125 | 380 | 475 | 3.0 | 3083306900 |
| 5 | Digging chisel | 75 | 450 | 545 | 3.3 | 3083324700 |
| 6 | Digging spade | 120 | 400 | 495 | 3.8 | 3083324800 |
| 7 | Clay spade | 125 | 430 | 525 | 3.7 | 3083324900 |
| 8 | Frost wedge | 35 | 380 | 475 | 2.3 | 3083325000 |
| 9 | Shaft for tamping pad | - | 310 | 405 | 1.7 | 3083325100 |
| 10 | Tamping pad, round | Ø175 | - | - | 7.6 | 3083325210 |
| 11 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 12 | Driver pad, round | Ø65 | - | - | 1.9 | 3317806012 |
| Ø100 | - | - | 2.6 | 9245281790 | ||
| 14 | Posthole tool | 40 | - | - | 2.7 | 9245282230 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083326500 |
| - | 450 | 535 | 3083326510 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083326600 |
| - | 450 | 535 | 3083326610 |
Optional equipment
| No. | Description | Part number | Quantity |
| 1(2-4) | Handhose with couplings and hose clamps | 9030209000 | 1 |
| 2 | Rubber hose (L = 3 m L = 118.11 in.) | 9030209003 | 1 |
| 3 | Claw coupling (ø12.5 mm ø0.50 in.) | 9000031000 | 2 |
| 4 | Hose clamp (ø12.5 mm ø0.50 in.) | 9000019400 | 2 |
Claw coupling
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
