DESCRIPTION
TEX 12 PS Pick Hammer Spare Parts
Vikay is a worldwide distributor of TEX 12 PS Pick Hammer Spare Parts suitable for Atlas Copco TEX 12 PS Pick Hammer from India.

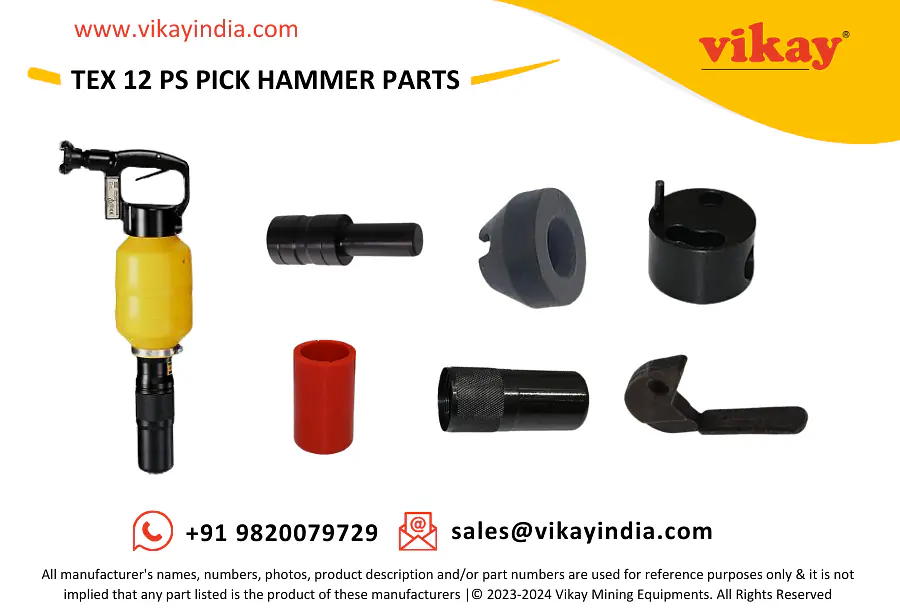

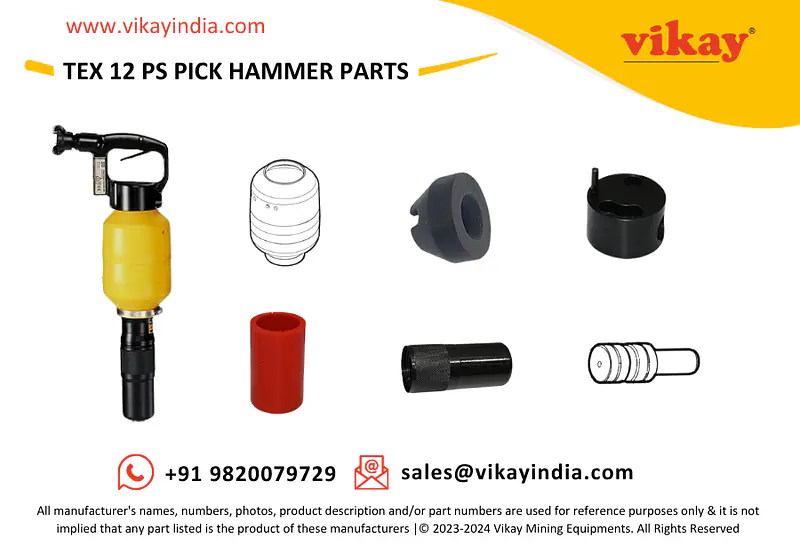

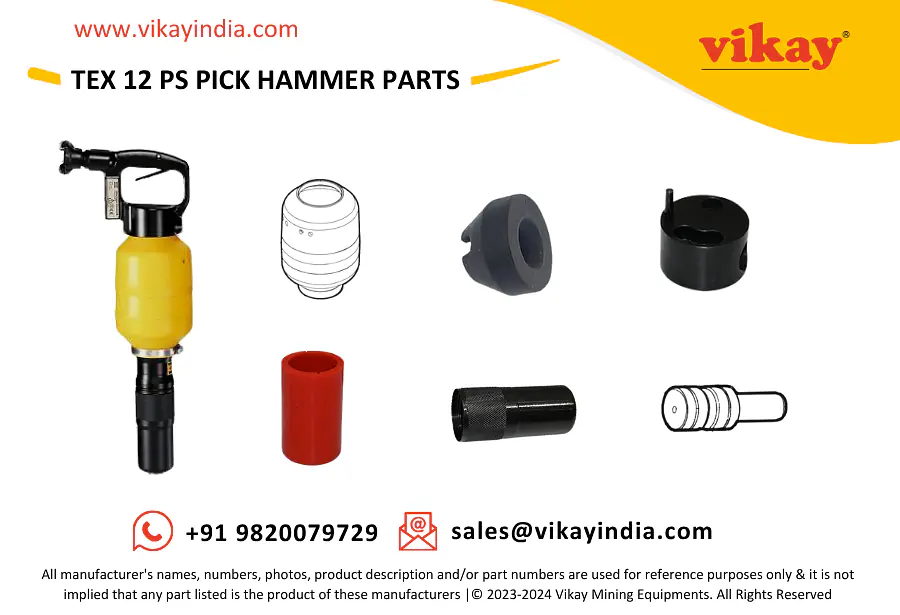

TEX 12 PS Atlas Copco Pick Hammer Parts
| No. | Description | Part number | Quantity |
| 1 | Cap | 3310113700 | 1 |
| 2 | Buffer, red (Hexagon 22 x 82.5 mm 7⁄8 x 31⁄4 in.) | 3310070500 | 1 |
| 3 | Chuck (Hexagon 22 x 82.5 mm 7⁄8 x 31⁄4 in.) | 3310131600 | 1 |
| 4(5-7) | Cylinder, complete | 3310128280 | 1 |
| 5 | Cylinder | - | 1 |
| 6 | Locking ring | 3310087100 | 1 |
| 7 | Intermediate part | 3310087000 | 1 |
| 8 | O-ring (49.2 x 5.7 mm (70 SHORE) 1.94 x 0.22 in.) | 663213700 | 1 |
| 9 | Piston | 3310128300 | 1 |
| 10(11-12) | Cover, complete | 3310128580 | 1 |
| 11 | Cover | - | 1 |
| 12 | Grooved pin | 106095111 | 1 |
| 13 | Main valve | 3310128600 | 1 |
| 14 | Spring pin (16 x 95 mm) | 108169155 | 1 |
| 15 | Spring pin (10 x 95 mm) | 108169164 | 1 |
| 16(17-24) | Backhead, complete | 3310128781 | 1 |
| 17 | Backhead | - | 1 |
| 18 | Trigger | 3310128800 | 1 |
| 19 | Spring pin (8 x 24 mm DIN 1481) | 108135500 | 1 |
| 20 | Valve stem | 3310128100 | 1 |
| 21 | Inlet valve | 3310113500 | 1 |
| 22 | Spring | 3310113000 | 1 |
| 23 | Nipple | 3310113100 | 1 |
| 24 | O-ring (64.5 x 3 mm (70 SHORE) 2.54 x 0.12 in.) | 663613700 | 1 |
| 25 | Safety label | 3310160200 | 1 |
| 26 | Data plate | - | 1 |
| 27 | Screw | 244414400 | 2 |
| 28(29-30) | Silencer, complete | 3310128480 | 1 |
| 29 | Silencer | - | 1 |
| 30 | Clamp | 347611400 | 1 |
| 31 | Label | 690110102 | 1 |
| 32 | Sound power label | - | 1 |
ISO standard hexagon 22 x 82.5 mm (7⁄8 x 31⁄4 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Wt (kg) | Part number |
| 1 | Moil point | - | 380 | 475 | 1.6 | 3083324200 |
| - | 1000 | 1095 | 3.6 | 3083324300 | ||
| 2 | Narrow chisel | - | 380 | 475 | 1.6 | 3083324400 |
| - | 1000 | 1095 | 3.6 | 3083324500 | ||
| 3 | Wide chisel | 75 | 380 | 475 | 2.2 | 3083324600 |
| 4 | Asphalt cutter | 125 | 380 | 475 | 3.0 | 3083306900 |
| 5 | Digging chisel | 75 | 450 | 545 | 3.3 | 3083324700 |
| 6 | Digging spade | 120 | 400 | 495 | 3.8 | 3083324800 |
| 7 | Clay spade | 125 | 430 | 525 | 3.7 | 3083324900 |
| 8 | Frost wedge | 35 | 380 | 475 | 2.3 | 3083325000 |
| 9 | Shaft for tamping pad | - | 310 | 405 | 1.7 | 3083325100 |
| 10 | Tamping pad, round | Ø175 | - | - | 7.6 | 3083325210 |
| 11 | Tamping pad, square | 175 | - | - | 6.1 | 3083323900 |
| 12 | Driver pad, round | Ø65 | - | - | 1.9 | 3317806012 |
| Ø100 | - | - | 2.6 | 9245281790 | ||
| 14 | Posthole tool | 40 | - | - | 2.7 | 9245282230 |
Round 25 x 75 mm (1 x 3 in.)
| No. | Description | W (mm) | L (mm) | LT (mm) | Part number |
| 1 | Moil point | - | 330 | 415 | 3083326500 |
| - | 450 | 535 | 3083326510 | ||
| 2 | Narrow chisel | - | 330 | 415 | 3083326600 |
| - | 450 | 535 | 3083326610 |
US standard hexagon 7⁄8 x 31⁄4 in. (22 x 82.5 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Wt (lb) | Part number |
| 1 | Moil point | - | 14 | 18 | 3.3 | 3083405000 |
| - | 18 | 21 | 4.0 | 3083405010 | ||
| - | 24 | 28 | 5.1 | 3083405020 | ||
| - | 36 | 40 | 7.3 | 3083405030 | ||
| 2 | Narrow chisel | - | 14 | 18 | 3.5 | 3083330300 |
| - | 24 | 28 | 5.1 | 3083330400 | ||
| - | 18 | 21 | 4.0 | 3083405110 | ||
| - | 36 | 40 | 7.3 | 3083405130 | ||
| 3 | Wide chisel | 3 | 14 | 18 | 4.6 | 3083330500 |
| 3 | 18 | 21 | 4.4 | 3083405210 | ||
| 3 | 24 | 28 | 5.5 | 3083405220 | ||
| 3 | 36 | 40 | 7.7 | 3083405230 | ||
| 4 | Asphalt cutter | 5 | 12 | 16 | 6.2 | 3083405300 |
| 5 | Digging chisel | 3 | 14 | 18 | 7.1 | 3083330600 |
| 6 | Digging spade | 5 | 13 | 17 | 8.6 | 3083330700 |
| 7 | Clay spade | 5 | 17 | 21 | 8.4 | 3083330800 |
| 8 | Frost wedge | 1 | 15 | 19 | 5.5 | 3083405700 |
| 9 | Shaft for tamping pad | - | 8 | 12 | 2.9 | 3083405800 |
| 10 | Tamping pad, round | Ø7 | - | - | 16.8 | 3083325210 |
| 11 | Tamping pad, square | 7 | - | - | 13.4 | 3083323900 |
| 12 | Driver pad, round | Ø4 | - | - | 5.7 | 9245281790 |
| Ø3 | - | - | 4.2 | 3371806012 | ||
| 14 | Posthole tool | 2 | - | - | 6.0 | 9245282230 |
Round 1 x 3 in. (25 x 75 mm)
| No. | Description | W (in.) | L (in.) | LT (in.) | Part number |
| 1 | Moil point | - | 13.0 | 16.3 | 3083326500 |
| - | 18.0 | 21.0 | 3083326510 | ||
| 2 | Narrow chisel | - | 13.0 | 16.3 | 3083326600 |
| - | 18.0 | 21.0 | 3083326610 |
Claw couplings
| No. | Description | Part number | Quantity |
| 1(2-4) | Claw coupling with strainer, complete | 9000030601 | 1 |
| 2 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 3 | Strainer | 9000000010 | 1 |
| 4 | Seal | 9000000000 | 1 |
| 5(6-7) | Claw coupling, complete | 9000030600 | 1 |
| 6 | Claw coupling (Standard G3⁄4 in.) | - | 1 |
| 7 | Seal | 9000000000 | 1 |
| 8(9-10) | Claw coupling, complete | 9001000506 | 1 |
| 9 | Claw coupling (US-universal 3⁄4 in.) | - | 1 |
| 10 | Seal | 9001000515 | 1 |
